EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 71
Creating and Starting a Test Case
SONET/SDH Application
59
Typical Test Cases
Creating an Electrical DS1 or DS3 Test Case in Dual
RX Mode
The following procedures describe the creation of an electrical DS1 or DS3
test case in Dual RX mode.
To create an Electrical DS1 or DS3 Test in Dual RX mode:
1. Test configuration:
1a. Select the source Clock
Mode that will be used
for the test. Refer to
Clock Configuration on
page 101 for more
information.

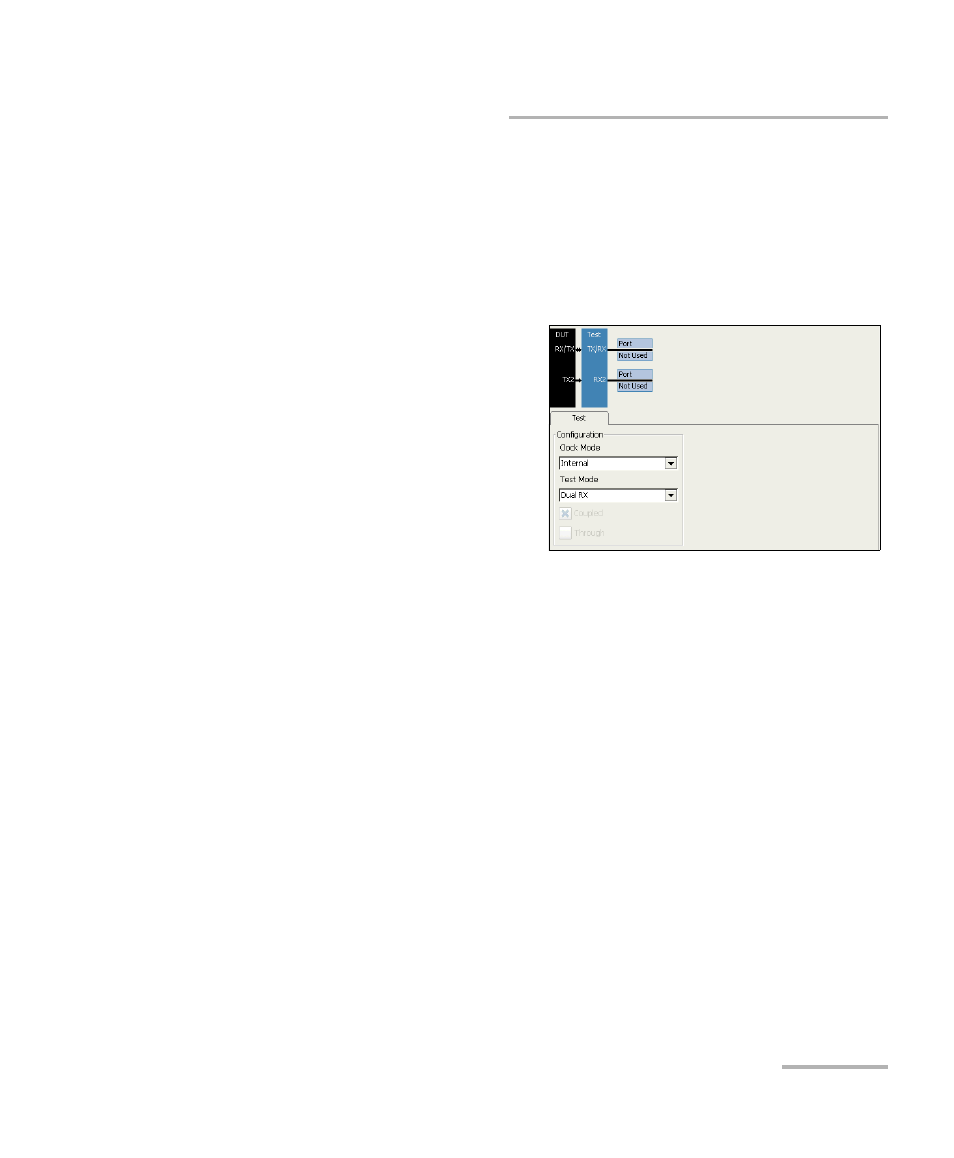

1b. Select Dual RX (DS1 or
DS3 signals) as the Test
Mode. Refer to Test
Configuration on page 98 for more information.
The Coupled check box is automatically selected for Dual RX
mode meaning that the settings for both the TX and RX signals are
the same.
