EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 398

System Tab
386
FTB-8100 Series Transport Blazer
Default Test Preferences
³
DSn/PDH
Allows the selection of the default timeslot background traffic.
Choices are AIS and All zeros. The default setting is AIS.

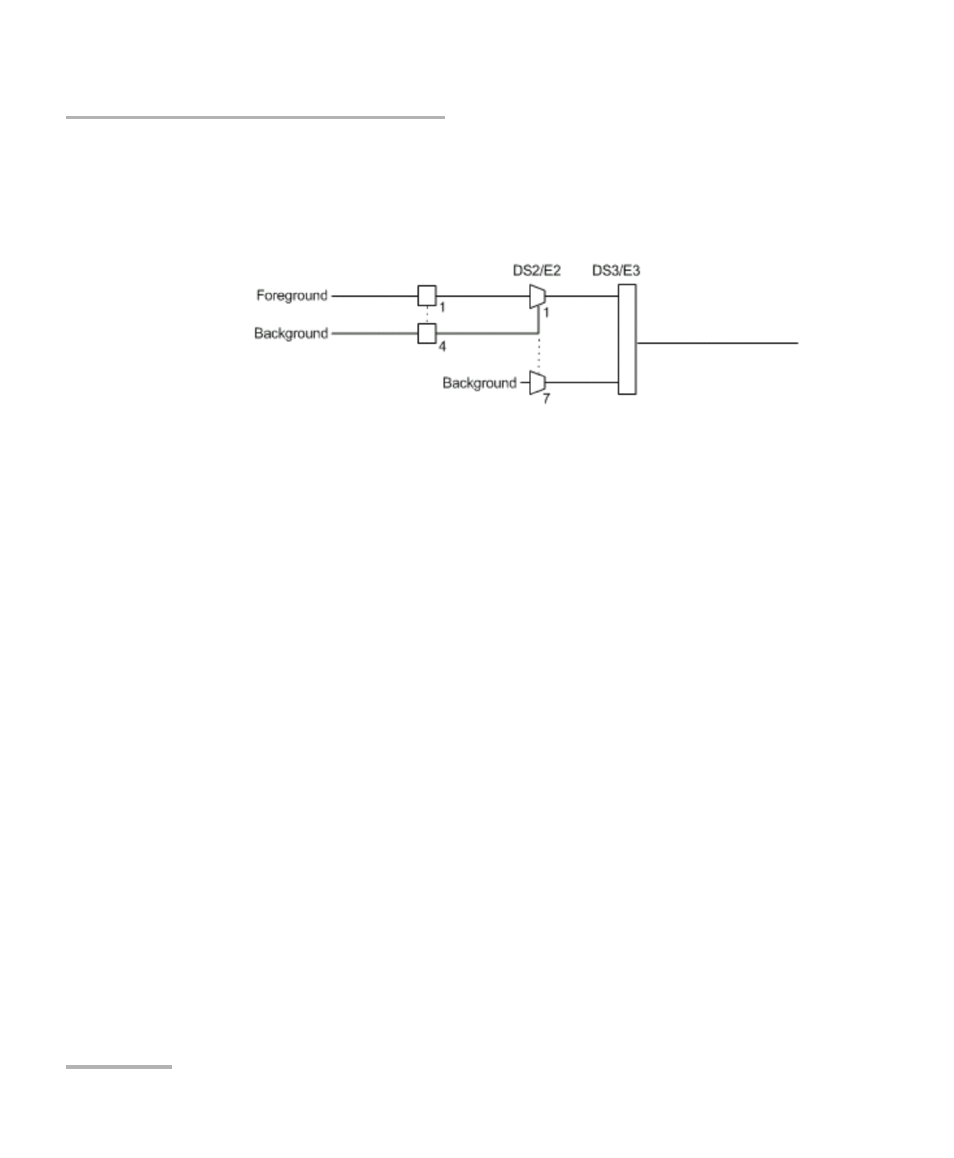

The diagram above shows a test case defined with DSn/PDH traffic
where the background traffic is also inserted for the unused
timeslots in a test case data path. The insertion is similar to the low
order path SONET/SDH terminated signal where the background
traffic format inserted uses the same rate as the one defined in the
test case data path.
³
LCAS Auto-Add at Startup
Source/Sink Enable: This setting allows to enable by default the Add
Member(s) at Start for Source and Sink every time a test is created
manually using Test Setup or when using SmartMode. This setting is
disabled by default.
³
OC-192/STM-64 REI-L/MS-REI
Computation Method: Allows to select the default method used to
calculate the REI-L/MS-REI error for OC-192 and STM-64 interfaces.
Choices are M1 only and both M0 and M1. The default setting is
M1 only.
