Port TX (Optical Interfaces - SONET)
Port TX (Optical Interfaces - SONET)
Note: Available with OTN, SONET, and SDH interfaces.

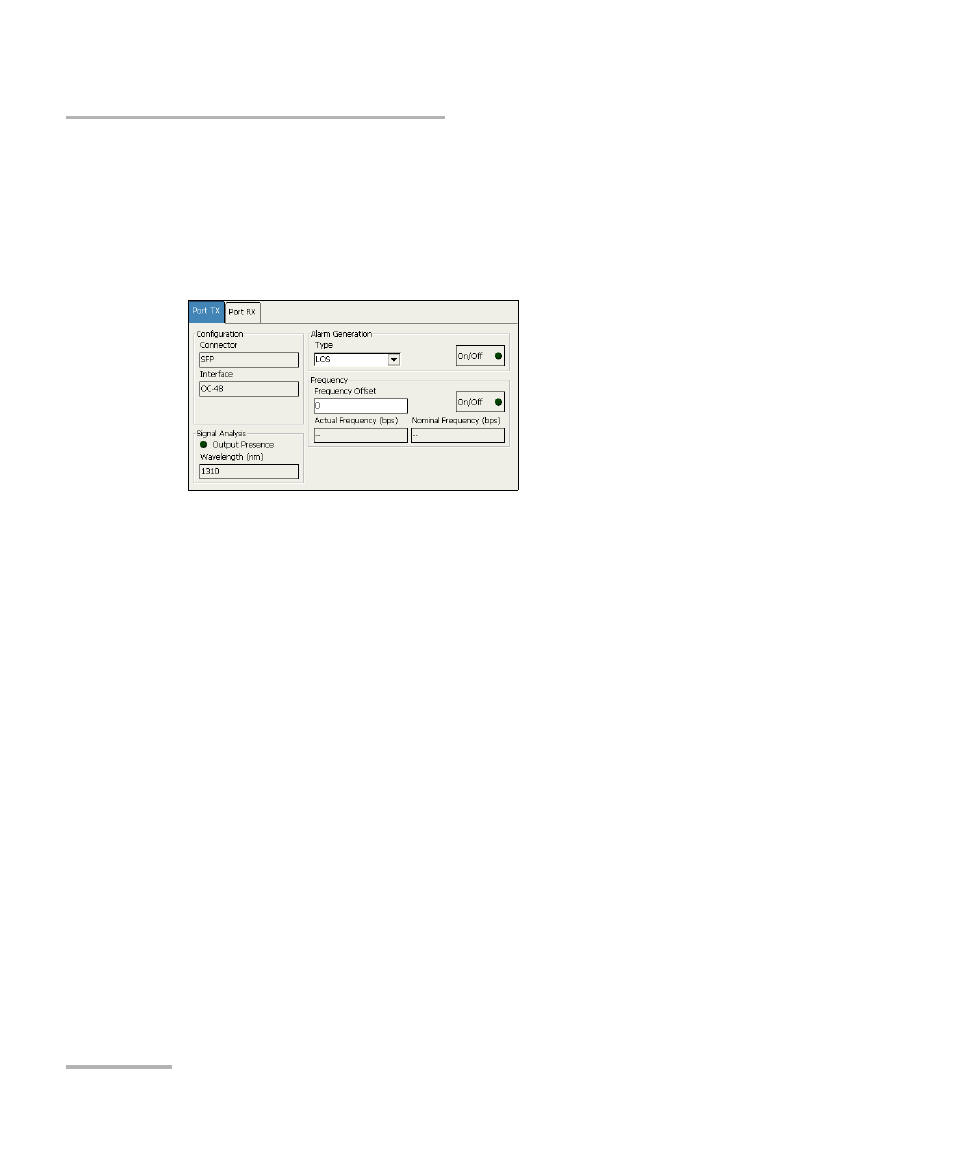

Press Main Menu, Test, Port, and Optical TX.
Configuration
³
Connector: Indicates the physical port used for the test. Possible
connectors are XFP (port labelled 10G/10.7G) or SFP (port labelled
155M-2.7G or 155M-2.5G).
³
Interface: Indicates the test signal rate.
Signal Analysis
³
Output Presence: Indicates the presence of a signal at the output port
(green) or not (grey). The output presence LED is grey when there is
no SFP/XFP.
³
Wavelength (nm): Indicates the detected SFP/XFP
wavelength.Possible values are:
850, 1310, 1550 nm, or unknown if the SFP/XFP is missing or not
recognized.
