EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 89
Creating and Starting a Test Case
SONET/SDH Application
77
Typical Test Cases

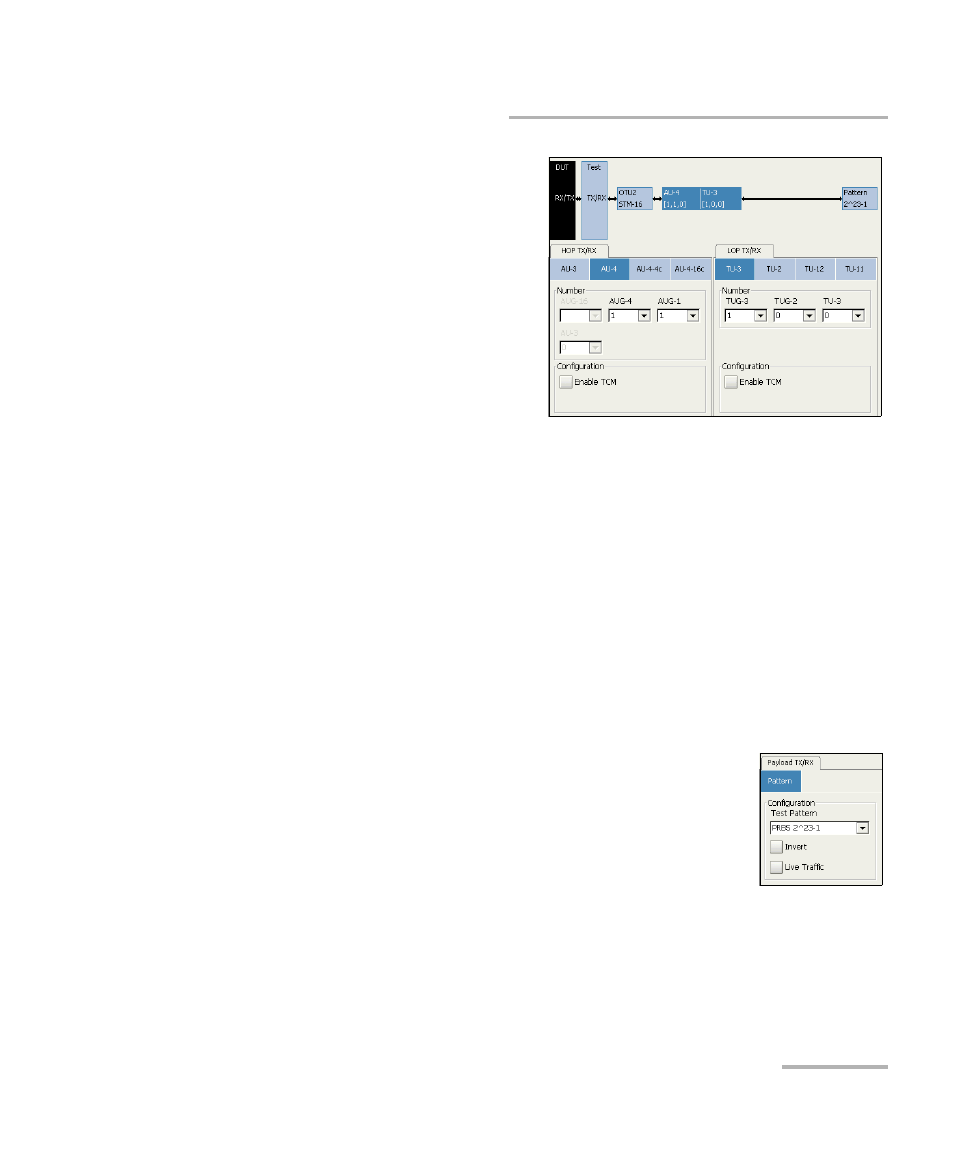

3. Press the Path node
(available when ODU is set
to STS-n or STM-n).
3a. Press the desired HOP.
Choices depend on the
selected interface. See
Supported
Paths/Mappings on
page 51 for more
information.
3b. For SONET, in the
Timeslot list, select the timeslot number, or select Hierarchical
Notation check box and in the STS-3 and STS-1 lists, select the
slot numbers.
For SDH, in the AU-3 and AUG-x lists, select the AU and AUG
numbers.
3c. Select the Enable TCM check box if needed.
3d. For non-concatenated HOP, select the LOP from the LOP TX/RX
tab if required.
For SONET, select the VTG and VT1.5 slot numbers.
For SDH, select the TU-x and TUG-x numbers.
4. Press the Pattern node.
4a. Set the pattern parameters. Refer to Pattern TX
on page 335 and Pattern RX on page 338 for
more information.
