OTN Tabs
SONET/SDH Application
133

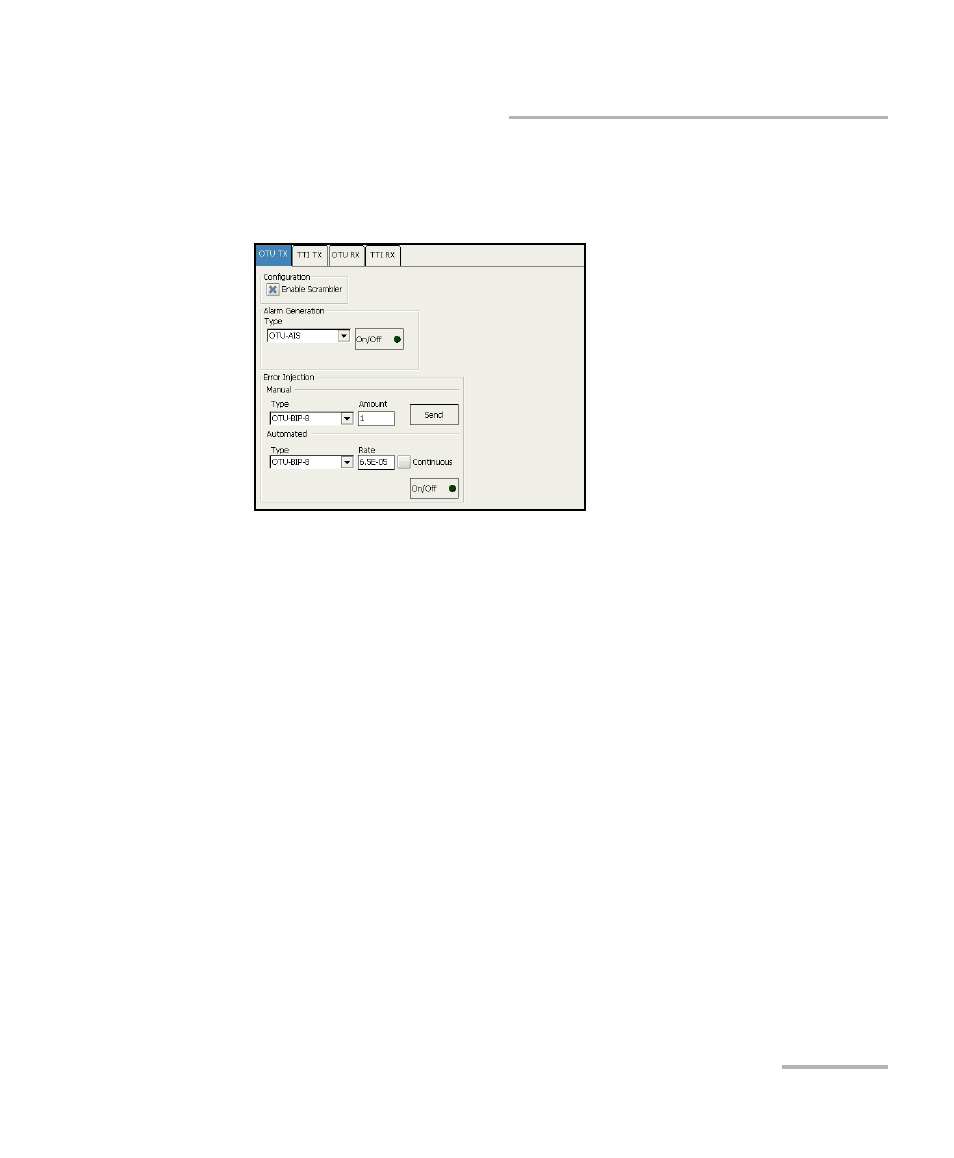

OTU TX
OTU TX
Press Main, Test, OTN, OTU, and OTU TX.
Configuration
Note: Configuration for OTU TX and OTU RX are coupled.
Enable Scrambler provides enough “0” and “1” transitions on the optical
signal for clock recovery. The Enable Scrambler check box is selected by
default.
Note: Enable Scrambler must be selected when Enable FEC is not selected in
order to prevent potential alarms caused by a lack of transition on the
optical signal. To disable Scrambler, first select the Enable FEC check box
then clear the Enable Scrambler check box. See FEC TX on page 130 for
more information on Enable FEC.
