E1/2m rx, Configuration, Error analysis – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 322
PDH Tabs
310
FTB-8100 Series Transport Blazer
E1/2M RX
E1/2M RX

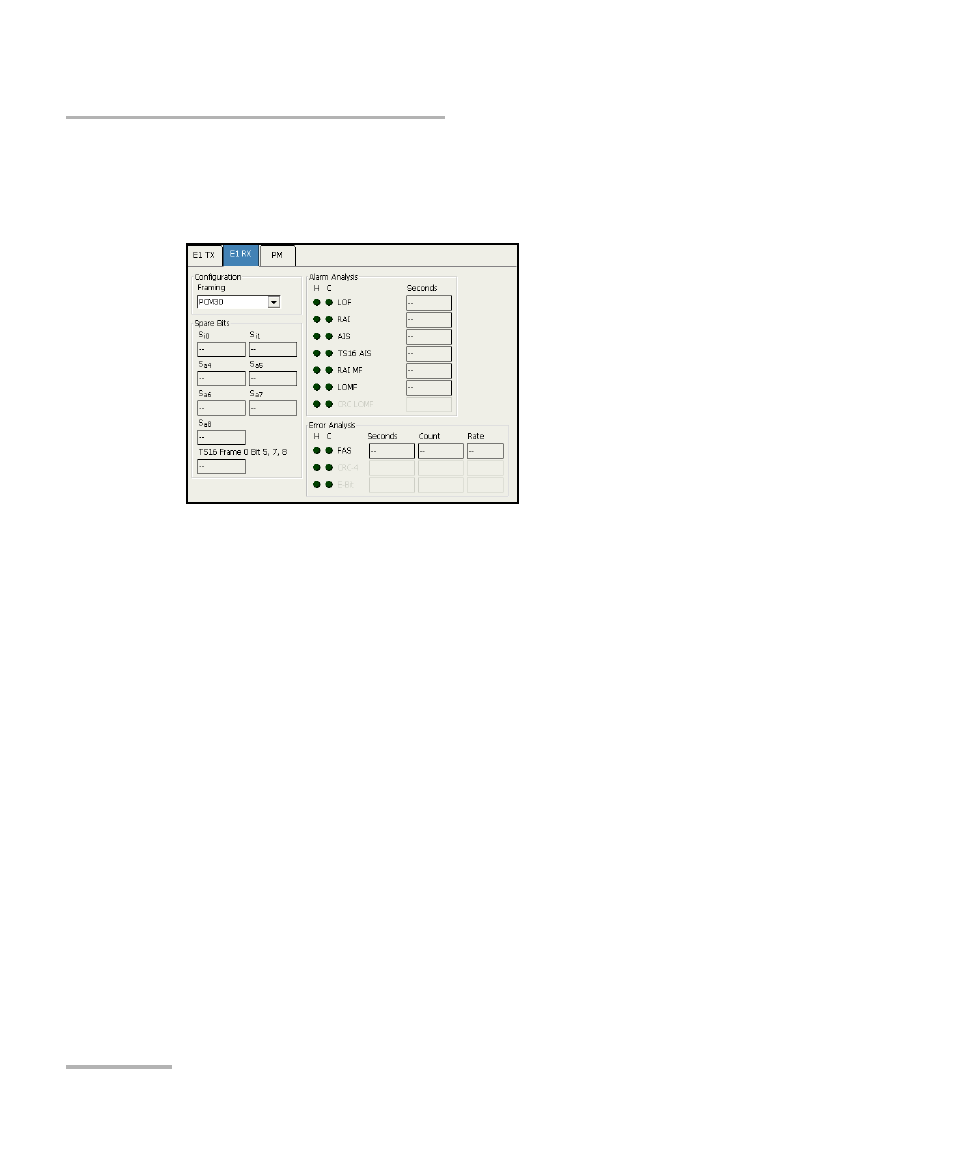

Press Main, Test, DSn/PDH, E1, and E1 RX.
Configuration
Note: See E1/2M TX on page 307 for more information on Framing.
Error Analysis
³
FAS (Frame Alignment Signal): A FAS error indicates that bits 2 to 8 of
the frame containing the FAS differ from 0011011.
³
CRC-4 (Cyclical Redundancy Check): A CRC-4 error indicates that one
or more bit errors are detected in a block of data through cyclical
redundancy check.
³
E-Bit (CRC-4 Error Signal): A E-Bit error indicates that bit 1 of
sub-multiframe (SMF) II in frame 13 and/or 15 is set to 0 indicating a
sub-multiframe error.
