Multiplex Section OH TX/RX (SDH)
Multiplex Section OH TX/RX (SDH)
The Multiplex Section OH TX allows changing the multiplex transport
overhead information to be transmitted while the Multiplex Section OH
RX allows verification of the multiplex transport overhead information
received.

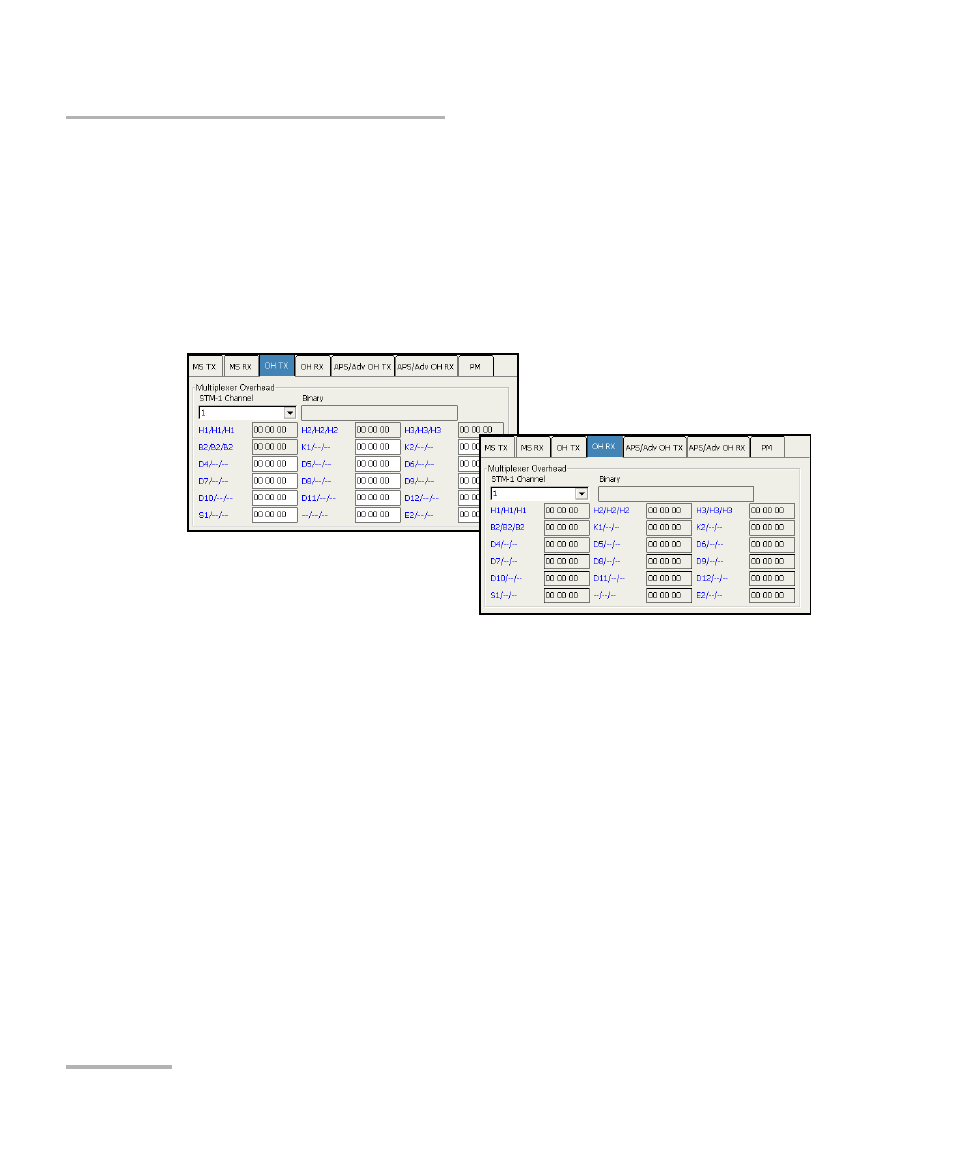

Press Main, Test, SDH, MS, and OH TX/RX.
Multiplex Section Overhead
³
STM-1 Channel: Select the timeslot number that will be used for the
test. Choices are 1 for STM-1, 1 to 4 for STM-4, 1 to 16 for STM-16, and 1
to 64 for STM-64. The default setting is 1.
³
Binary: Allows either displaying all overhead values in binary (when
the Binary check box is selected) or hexadecimal (when the Binary
check box is cleared). This Binary check box is cleared by default.
³
H1 and H2: Pointer
³
H3: Pointer Action
³
B2: BIP-8
³
K1 and K2: Automatic Protection Switching (APS)
