Creating and Starting a Test Case
56 FTB-8100 Series Transport Blazer
Typical Test Cases
Creating an Electrical DSn/PDH Test Case in Normal
Mode
The following procedures describe the creation of an electrical DSn/PDH
test case in Normal mode.
To create an Electrical DSn/PDH Test in Normal mode:

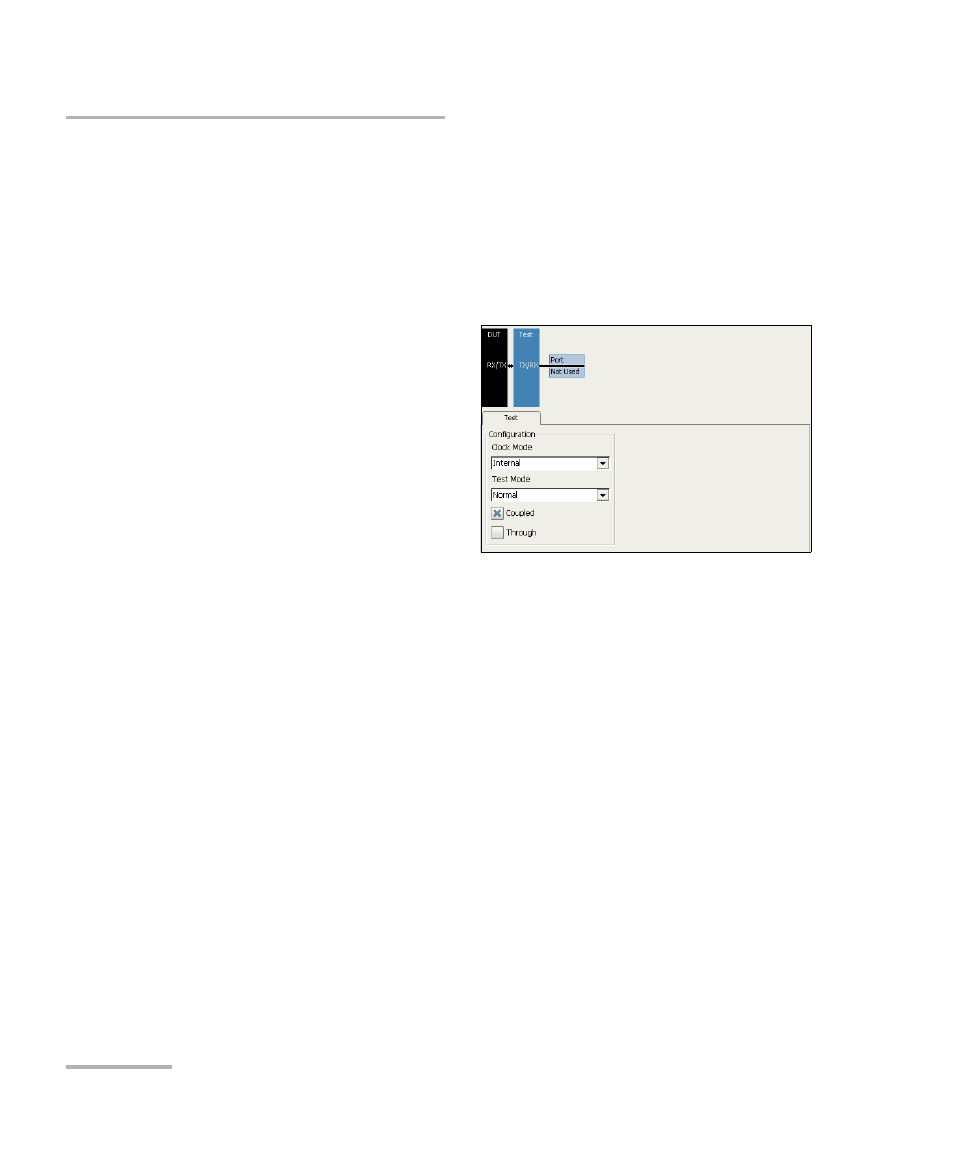

1. Test configuration:
1a. Select the source Clock
Mode that will be used
for the test. Refer to
Clock Configuration on
page 101 for more
information.
1b. Select Normal as the
Test Mode. Refer to Test
Configuration on
page 98 for more information.
1c. Select the Coupled check box to set the same settings for both
the TX and RX signals or clear the Coupled check box to
configure the TX and RX signal individually (decoupled).
1d. Select the Through check box to loop the RX signal to the TX port.
The Clock Mode is automatically set to Recovered when the
Through check box is selected.
