Creating and Starting a Test Case
64 FTB-8100 Series Transport Blazer
Typical Test Cases

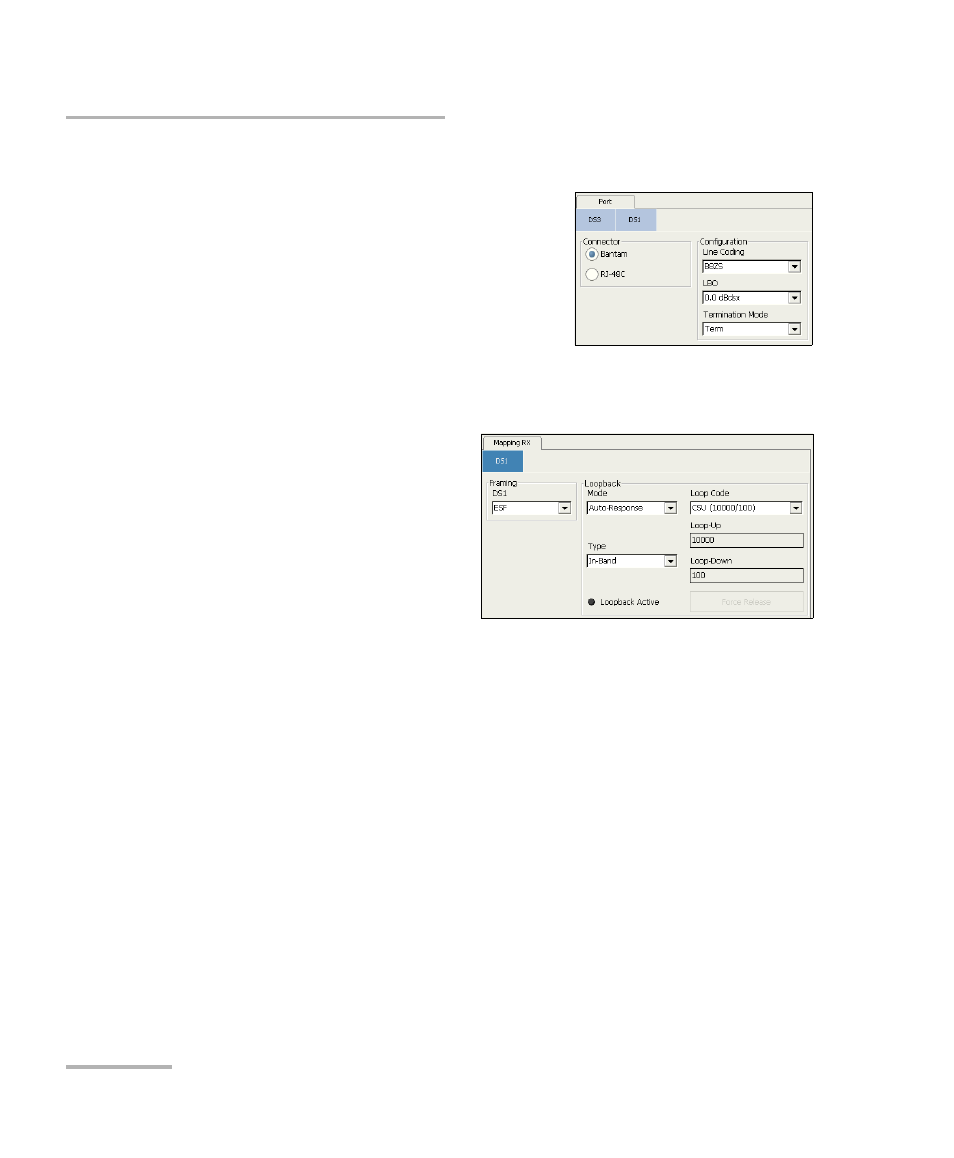

2. Press the Port node.
2a. Select the connector type: Bantam,
or RJ-48C.
2b. Select the Line Coding, and LBO.
The Termination Mode is set to
Term.
For more information, refer to Port
TX (Electrical Interfaces) on page 114 for Line Coding and LBO,
and to DS1/1.5M RX on page 222 for Termination Mode.
3. Press the DS1 Mapping
node.
3a. Select the Framing. For
more information, refer
to DS1/1.5M TX on
page 219.
3b. Select the loopback
control Mode: Manual
or Auto-Response.
3c. For Manual:
Select the Type of loopback code that will be applied: None, Line,
or Payload. Payload is only available with SF and ESF framings.
The Loopback Active LED indicates the presence of an active
loopback.
3d. For Auto-Response:
Select the Type of loopback code on which the module will
respond: In-Band or Out-of-Band. Out-of-Band is only available
when the interface framing is set to ESF.
