Odu rx, Error analysis – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 168
OTN Tabs
156
FTB-8100 Series Transport Blazer
ODU RX
ODU RX

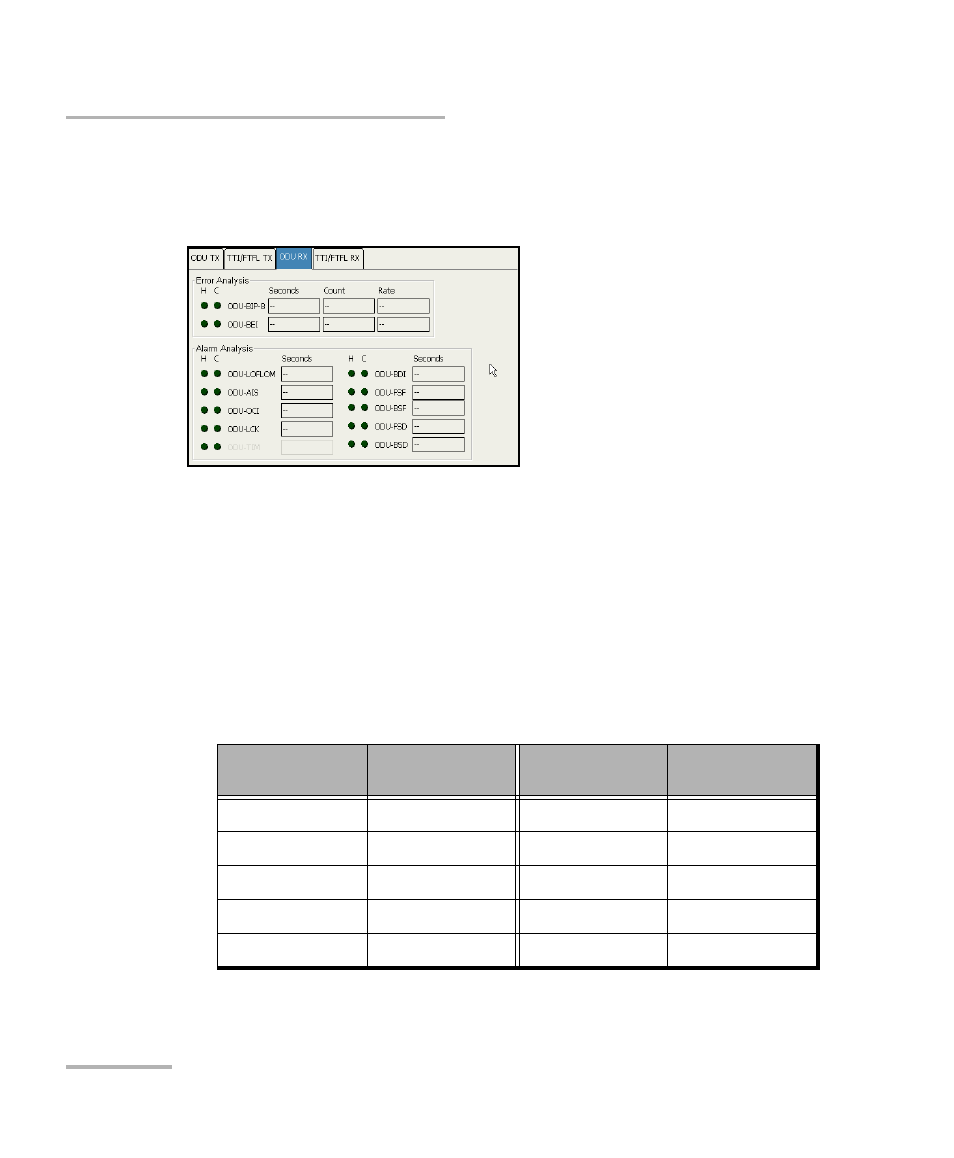

Press Main, Test, OTN, ODU, and ODU RX.
Error Analysis
³
ODU-BIP-8 (ODU - Bit Interleave Parity-8): Indicates the PM BIP-8
mismatch between the received value and locally computed value
(0 to 8).
³
ODU-BEI (ODU - Backward Error Indication): Indicates the interleaved
block in error detected by the corresponding ODU path monitoring
sink using the BIP-8 code.
ODU BEI bits
(1234)
BIP violations
ODU BEI bits
(1234)
BIP violations
0000
0
0101
5
0001
1
0110
6
0010
2
0111
7
0011
3
1000
8
0100
4
1001 to 1111
0
