E0/64k tx, Configuration – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 314
PDH Tabs
302
FTB-8100 Series Transport Blazer
E0/64K TX
E0/64K TX

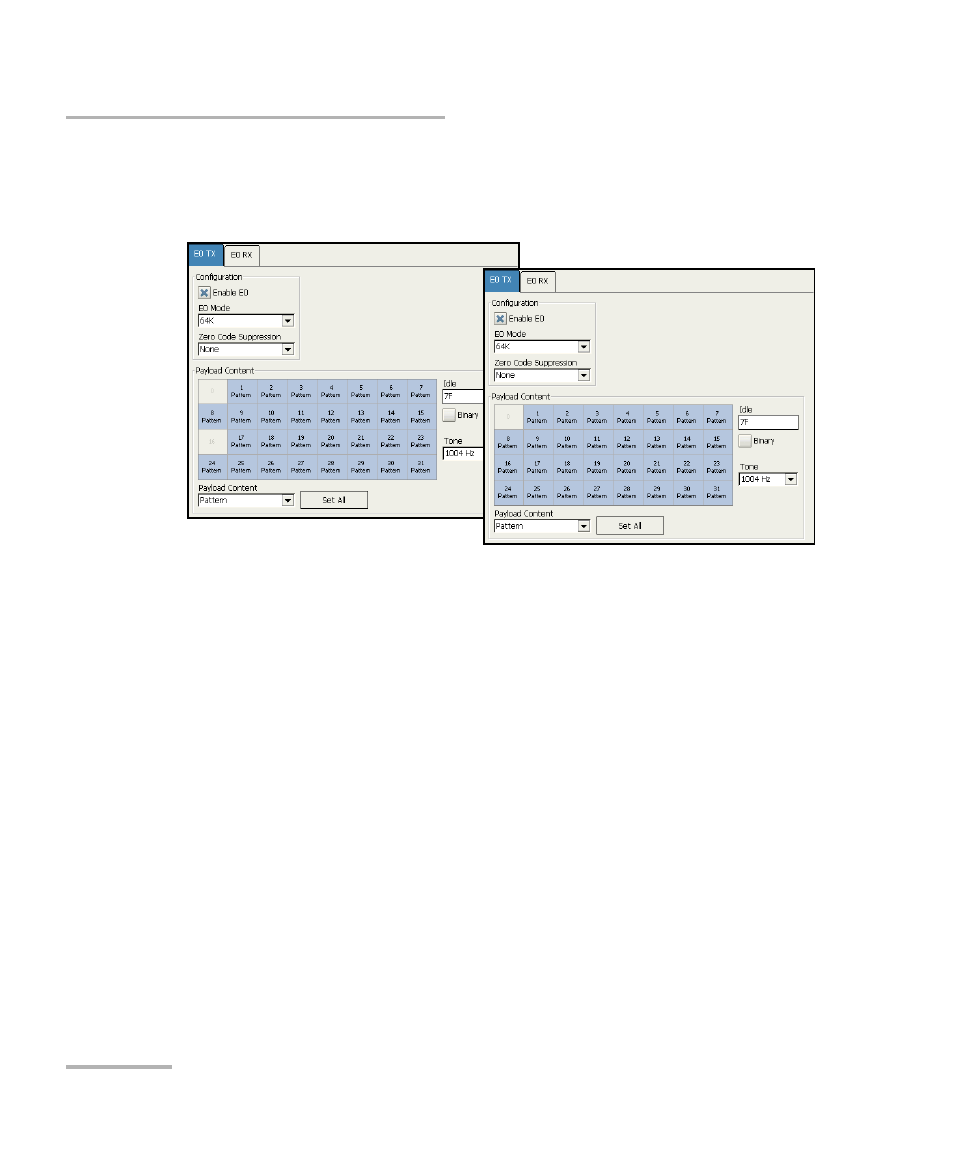

Press Main, Test, DSn/PDH, E0, and E0 TX.
Note: E0/64K TX configuration is not available when the selected framing from
the E1/2M TX on page 307 is unframed. The framing structure PCM-30 and
PCM30 CRC-4 have 30 channel timeslots while PCM-31 and PCM-31 CRC-4
have 31 channel timeslots.
Configuration
³
Enable E0: Allows the activation of E0/64K testing. This setting is
disabled (Off) by default unless otherwise set during the test setup.
³
E0 Mode: Allows the selection of the channel timeslot data rate for the
pattern payload content. Choices are 56K and 64K. The default setting
is 64K.
56K: A timeslot data rate of 56 Kbps uses 7 bits to carry the payload
information.
64K: A timeslot data rate of 64 Kbps uses 8 bits to carry the payload
information.
