DSn Tabs
246
FTB-8100 Series Transport Blazer
DS3 FEAC RX
DS3 FEAC RX

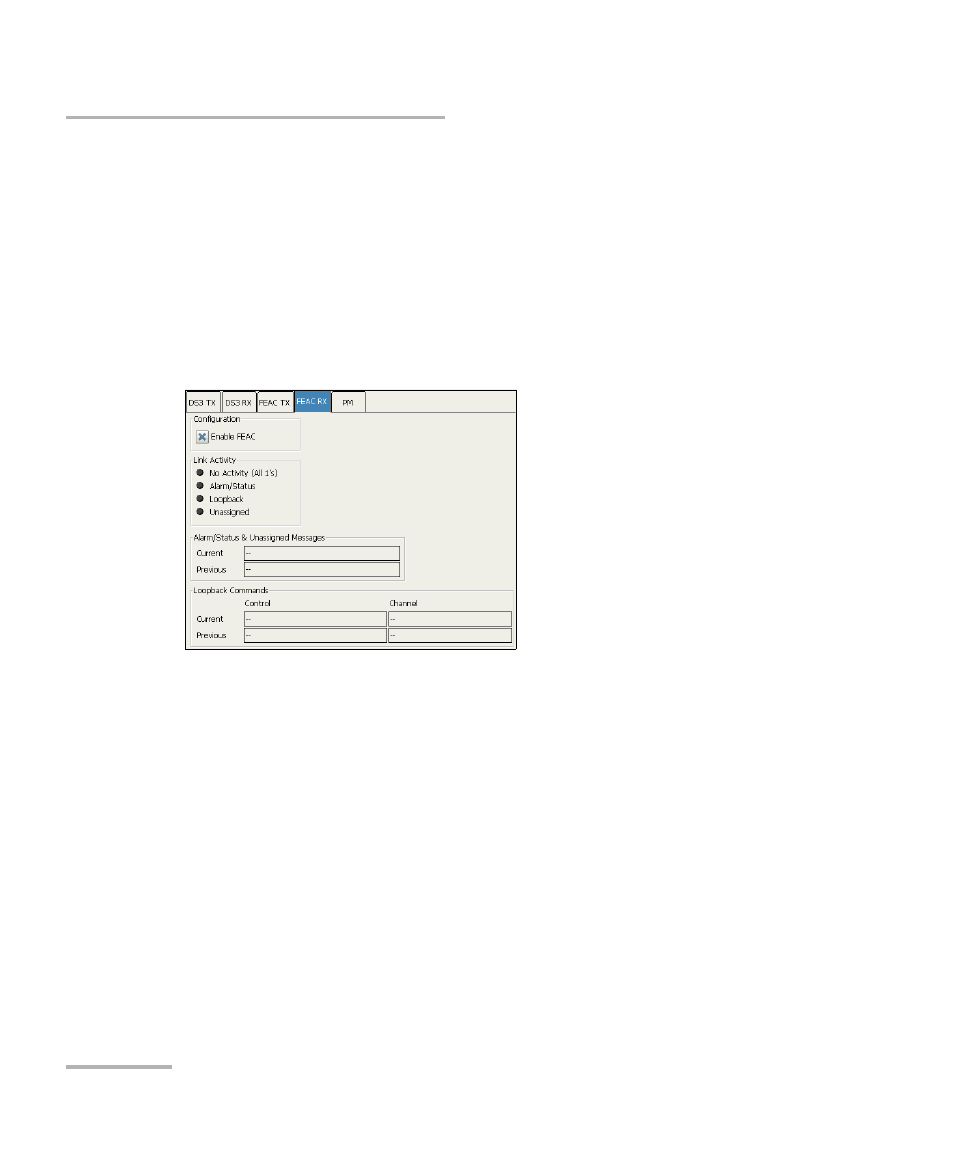

The DS3 FEAC RX tab gives current and previous alarms/status and
loopback commands as well as the link activity for the received DS3 signal.
Note: The DS3 FEAC RX tab is available when the DS3 framing is set to C-Bit
Parity (see page 238).
Press Main, Test, DSn/PDH, DS3, and FEAC RX.
Configuration
Enable FEAC: Enables DS3 FEAC codeword configuration and analysis.
Link Activity
³
No Activity (All 1’s): An all ones pattern (11111111 11111111) has been
detected in the last second.
³
Alarm/Status: An Alarm/Status codeword has been detected in the last
second. An Alarm/Status is only detected when receiving at least 10
consecutive occurrences of a specific codeword.
