EVCO S.p.A.
c-pro 3 micro CHIL | Application manual ver. 1.0 | Codice 144CP3CHE104
page 87 of 120

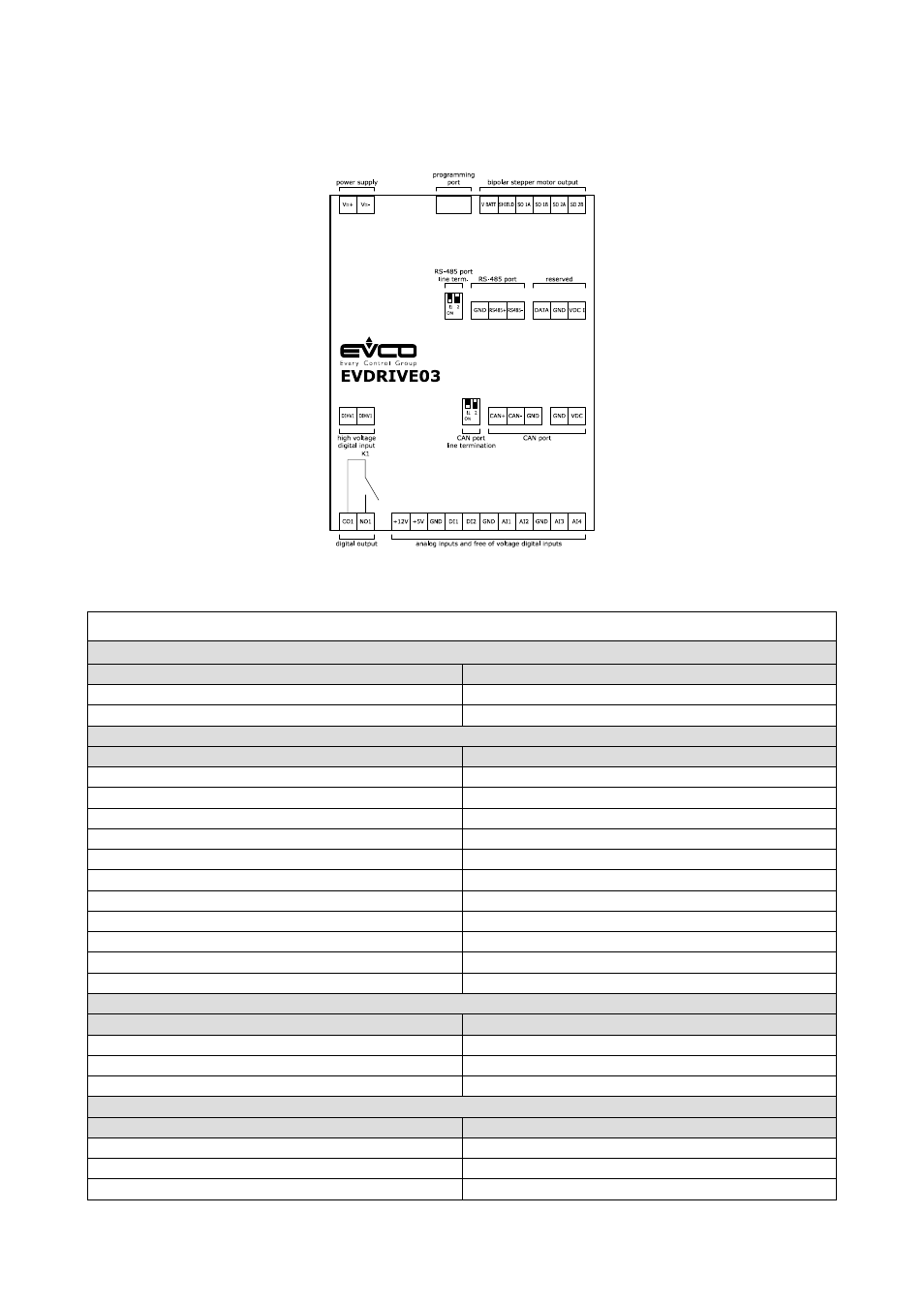

9.3 Connection layout EVDRIVE03
The following table shows the connection layout of EVDRIVE03
EVDRIVE03
Digital output
TERMINAL
MEANING
CO1
Common digital output
NO1
Normally open contact digital output
Analog inputs and free of voltage digital inputs
TERMINAL
MEANING
+12V
Power supply
+5V
Power supply
GND
Ground analog inputs and free of voltage digital inputs
DI1
Digital input 1
DI2
Digital input 2
GND
Ground analog inputs and free of voltage digital inputs
AI1
Analog input 1
AI2
Analog input 2
GND
Ground analog inputs and free of voltage digital inputs
AI3
Analog input 3
AI4
Analog input 4
CAN port
TERMINAL
MEANING
CAN+
Signal +
CAN-
Signal -
GND
Ground
CANBUS communication protocol
TERMINAL
MEANING
GND
Ground
VDC
Power supply remote user interface
AI8
Analog input 8
