EVCO S.p.A. c-pro 3 micro CHIL | Application manual ver. 1.0 | Codice 144CP3CHE104
page 12 of 120
5 USER INTERFACE
For the application, two types of interface are provided:
• Built-in LED-display interface
• Remote LCD-display interface Vgraph.
Both interfaces feature 6 keys for navigation/page editing, and differ in their display mode of certain associated statuses, i.e. via icons.
For both versions, a description is provided of the keys used by the application; indeed, according to the interface in use, it is possible
to manage a different number of keys.
5.1 Displays and Keyboards

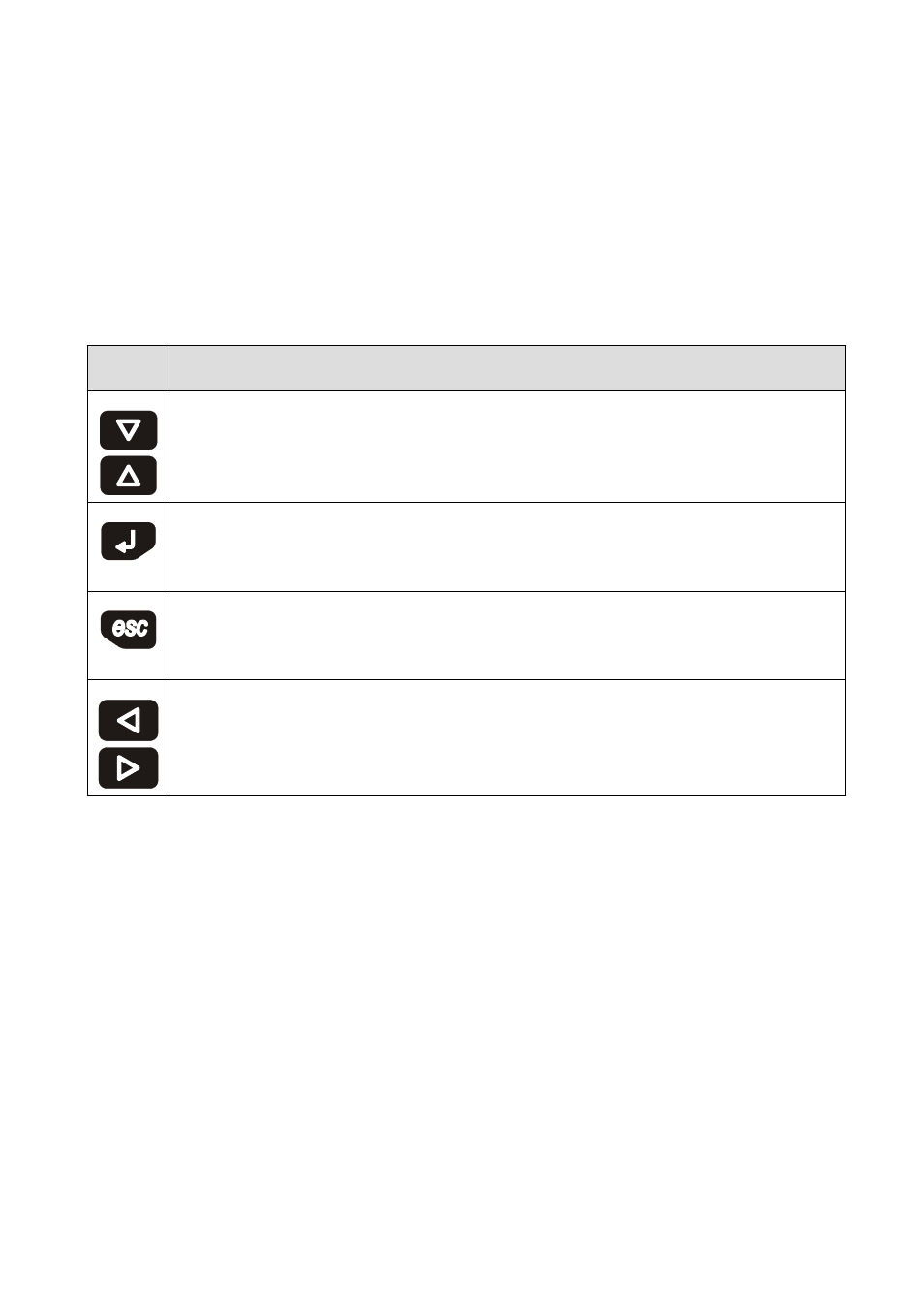

The keyboard features 6 page navigation and value editing keys, which have the following functions:
Symbol Functions
In editing, it modifies parameters; otherwise, it moves the cursor.
During editing, it confirms the value; otherwise, it sends any commands associated to the text where the
cursor is positioned.If pressed down and held for about 2 seconds, the ENTER key enables access to the main menu.
If held down during display of an alarm page, this key enables resetting of the alarm.If alarm pages are being
displayed, every key press scrolls all active alarms.
During editing, it cancels the value; otherwise, it requests any default page that might e associated with the current
page.If pressed down and held for about 2 seconds, the ESC key enables ON/OFF switching of the machine.
If pressed in the main page, this key will display the list of all active alarms.
It displays the pages of the same level in succession.
