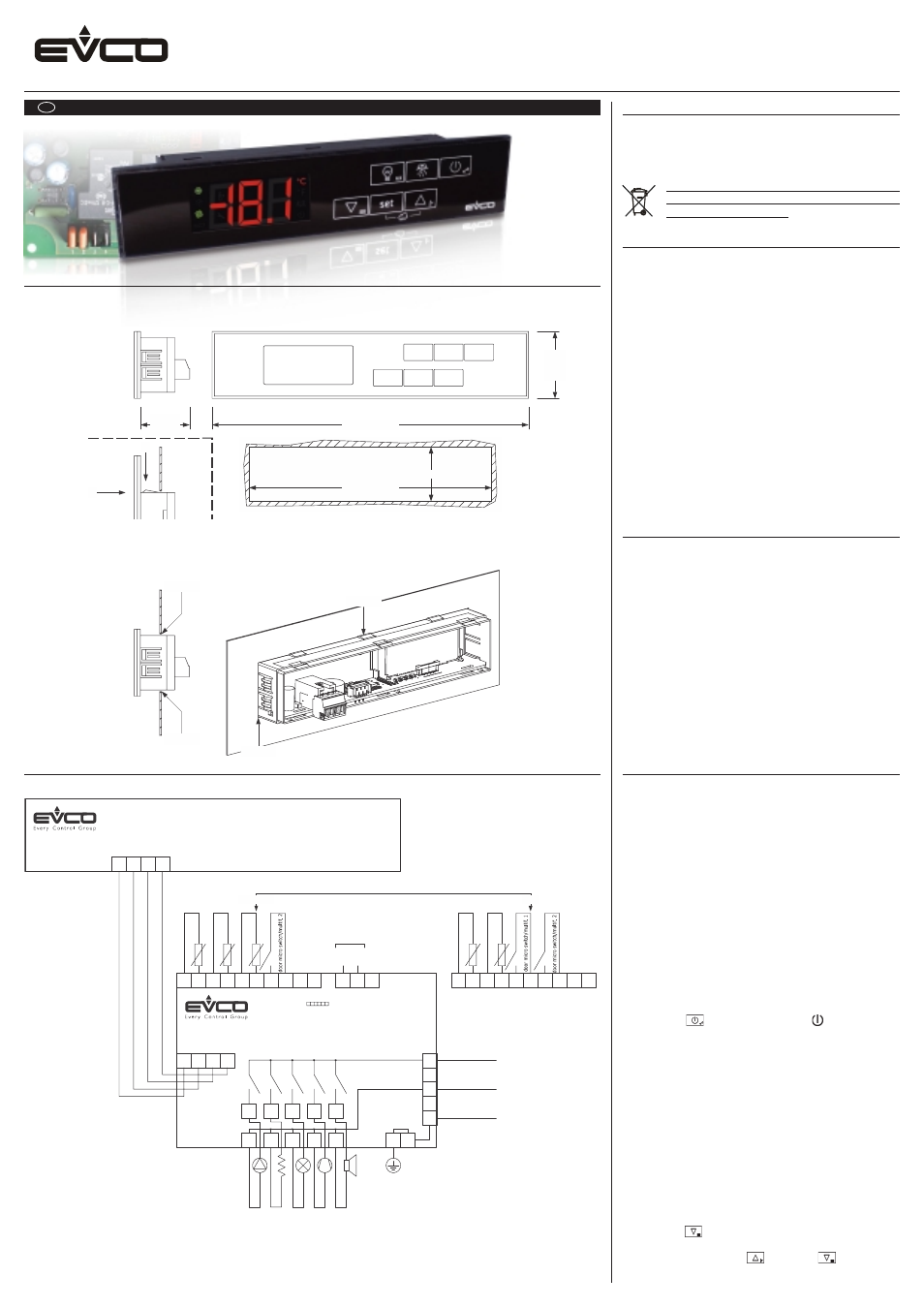

EVCO S.p.A. | Code 104RS235E104 | Page 1 of 10 | PT 07/14 | version 1.0
EVRS225 & EVRS235
Controllers in split version for refrigerated display cases, counters in butcher’s shop and sweet counters
EN
ENGLISH
DIMENSIONS AND INSTALLATION
User interface dimensions and installation
The dimensions are expressed in mm (in); panel installation is envisioned, with elastic retainer wings (det. A).
For the dimensions and installation of the control module, see page 10.
To facilitate removal f the user interface, slightly smooth the internal longitudinal edges of the drilling template before
installation (det. B and C).
ELECTRIC CONNECTION
Electric connection
180,0 (7,086)
38
,0
(1
,4
9
6
)
138,0 (5,433)
drilling template
29,0 (1,141)
2
1
detail A
28.0
(1.102)
IMPORTANT
Read this document thoroughly before installation and be-
fore use of the device and follow all recommendations;
keep this document with the device for future consultation.
Only use the device in the way described in this document;
do not use the same as a safety device.
The device must be disposed of in compliance with
local standards regarding the collection of electric
and electronic equipment.
1
DIMENSIONS AND INSTALLATION
1.1
Installation warnings
-
the thickness of the panel on which the user interface is
to be installed must be between 0.8 and
2.0 mm (0.031 and 0.078 in)
-
make sure that the device work conditions (tempera-
ture of use, humidity, etc.) lie within the limits indi-
cated; see chapter 13
-
do not install the device near to any heat sources (heating
elements, hot air ducts etc.), equipment containing
powerful magnets (large diffusers, etc.), areas affected
by direct sunlight, rain, humidity, excessive dust, me-
chanical vibrations or shocks.
-
any metal parts in proximity of the control module must
be at a distance such that they do not compromise the
safety distances.
-
in compliance with Safety Standards, the device must
be installed correctly and in a way to protect against
any contact with electric parts; all parts that ensure
protection must be fixed in a way that they cannot be
removed without the use of tools.
2
ELECTRIC CONNECTION
2.1
Warnings for the electric connection
-
do not use electric or pneumatic screwdrivers on the
device terminal board
-
if the device has been taken from a cold to hot place,
humidity could condense inside; wait about 1 hour be-
fore powering it
-
make sure that the power supply voltage, the fre-
quency and the operational electric power of the de-
vice, correspond with those of the local power supply;
see chapter 13
-
disconnect the device power supply before proceeding
with any type of maintenance
-
position the power cables as far away as possible from
the signal cables
-
for repairs and information regarding the device, con-
tact the EVCO sales network.
3
USER INTERFACE
3.1
Preliminary notes
Operating Statuses:
-
“on” state (the device is powered and is on: the regu-
lators can be switched on)
-
“stand-by” status (the device is powered but is switched
off via software: the regulators are switched off; the
possibility to manually switch on/switch off the cabinet
light or auxiliary output depends on parameter u2)
-
the “off” status (the device is not powered).
Hereafter, with the word “start-up” means the passage from
“stand-by” status to “on” status; the word “shutdown” means
the passage from “on” status to “stand-by” status.
When the power is switched back on, the device displays the
status that it was in at the time it was disconnected.
3.2
Device switch-on/off in manual mode
Operating Statuses:
1.
Make sure that the keyboard is not locked and that no
procedure is in progress.
2.
Hold the
key down for 2 s: the LED will switch
off/on.
Using the digital inputs it is also possible to remotely switch
on/off the device.
3.3
The display
If the device is switched on, during normal operation, the
display will show the magnitude established with P5, except
during defrosting, when the device will show the tempera-
ture established with parameter d6.
If the device is switched off, the display will be switched off.
3.4
Cabinet temperature display (if parameter P4
is set at 0, 1 or 2) or the temperature de-
tected by the inlet air probe (if parameter P4
is set at 3)
1.
Make sure that the keyboard is not locked and that no
procedure is in progress.
2.
Hold the
key down for 1 s: the display will show the
first label available.
3.
Press and release the
key or the
key to select
“Pb1”.
3
13
21 22 23 24
4
14
7
8 9
18
19
20
17
6
16
5
15
MODBUS TTL port
max. 20 A
neutral
power supply
earth
phase
K1
K5
K2
third input
K3
co
m
p
re
ss
o
r
evap
. f
a
n
al
ar
m
ea
rt
h
(c
o
n
fi
g
.)
eq
u
ip
m
en
t
ca
bi
n
e
t l
igh
t
(c
o
n
fi
g
.)
EVRS225 & EVRS235
Control module
25
25
26
26
27
27
28
28
29
29
30
30
31
31
33
33
32
32
34
35 36 37
34
ca
b
inet
(c
o
n
fi
g
.)
(c
o
n
fi
g
.)
ca
b
ine
t
evap
.
evap
.
co
nd
.
P4 = 1, 2 o 3
P4 = 0
24
23
22
21
EVRS225 & EVRS235
User interface
de
fr
os
ti
n
g
K4
port for
remote
indicator
(on request)
port for
remote
indicator
(on request)
+
gn
d
PWM output
detail B
detail C
detail B
detail C
