EVCO S.p.A. c-pro 3 micro CHIL | Application manual ver. 1.0 | Codice 144CP3CHE104
page 85 of 120

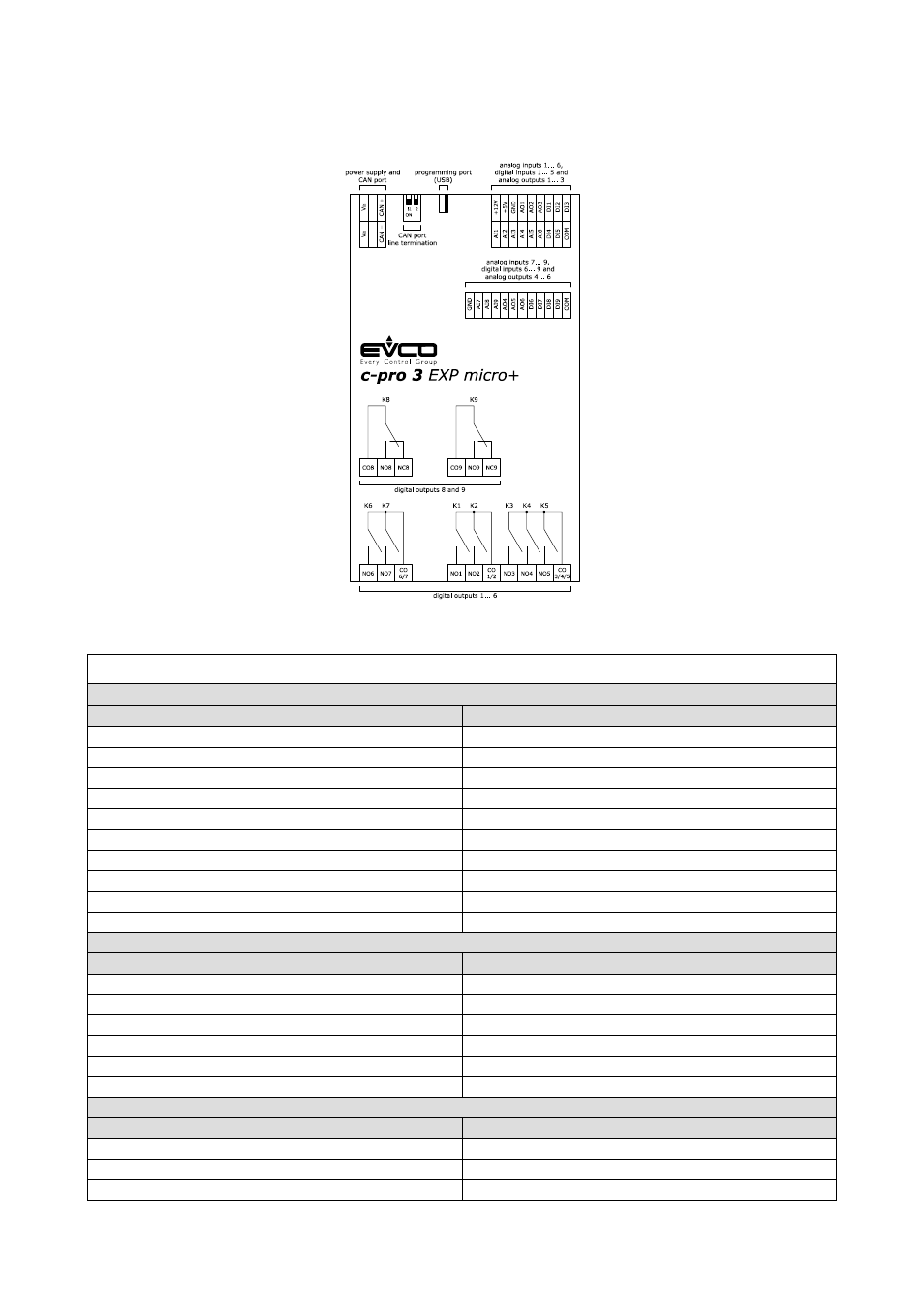

9.2 Connection layout c-pro 3 EXP micro+
The following table shows the connection layout of c-pro 3 EXP micro+
c-pro 3 EXP micro+
Digital outputs 1… 7
TERMINAL MEANING
NO6 Normally open contact digital output 6
NO7 Normally open contact digital output 7
CO6/7 Common digital outputs 6 and 7
NO1 Normally open contact digital output 1
NO2 Normally open contact digital output 2
CO1/2 Common digital outputs 1 and 2
NO3 Normally open contact digital output 3
NO4 Normally open contact digital output 4
NO5 Normally open contact digital output 5
CO3/4/5 Common digital outputs 3, 4 and 5
Digital outputs 8 and 9
TERMINAL MEANING
CO8 Common digital outputs 8
NO8 Normally open contact digital output 8
NC8 Normally closed contact digital output 8
CO9 Common digital outputs 9
NO9 Normally open contact digital output 9
NC9 Normally closed contact digital output 9
Analog inputs 7… 9, digital inputs 6… 9 and analog outputs 4… 6.
TERMINAL MEANING
GND Common analog inputs and analog outputs
AI7 Analog input 7
AI8 Analog input 8
