KEYENCE BL-600 Series User Manual
Page 86
Chapter 5 Installation
76
5
4. Check the reliability of the bar code reading using the Test mode.
Check the reliability of the bar code reading using “Reading rate check mode”.
➮ See pages 94 to 96.
5. Check the surroundings and adjust the mounting distance and angle.
If the bar code reading is unreliable, check/adjust the position again by referring
to “5.1.1 Situations to check for before installing the BL-600 Series” on pages
72 and 73 and “5.1.2 Mounting angle and distance” on page 74.

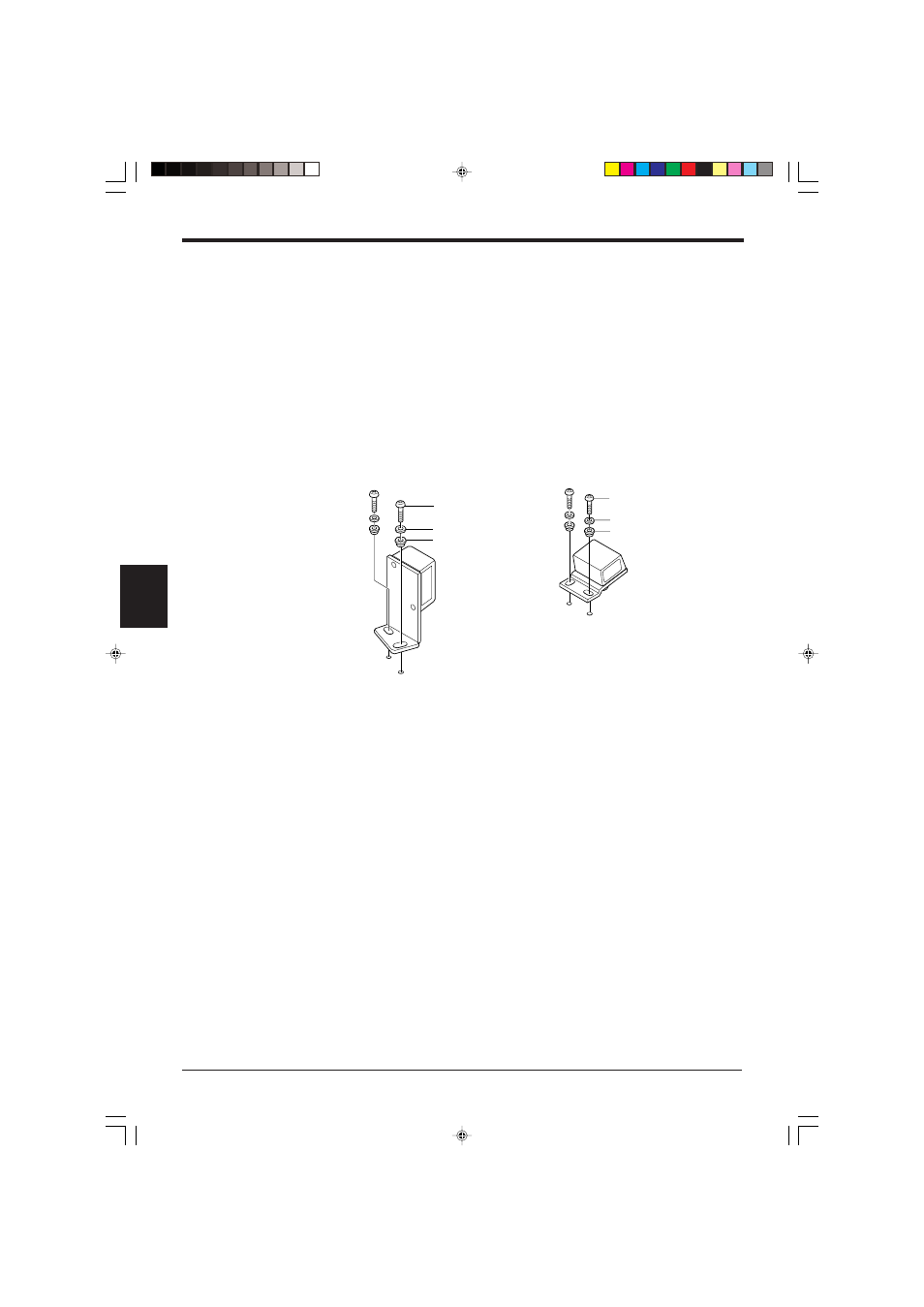

6. Fasten the mounting bracket.
*
Mounting screws (M4) are not included.
*
To suppress the noise conveyed through the mounting bracket, be sure to
use insulating spacers.
When bracket A is used
When bracket B is used
Mounting screw (M4)
Washer
Insulating spacer
Mounting screw (M4)
Washer
Insulating spacer
