103
Chapter 6 Functions for Reading Operation
6
6.6.3 Code type add function
Adds the bar code type before the readout data .
■ Data format
* The partition mark (:) can be changed as desired (1 character max.).

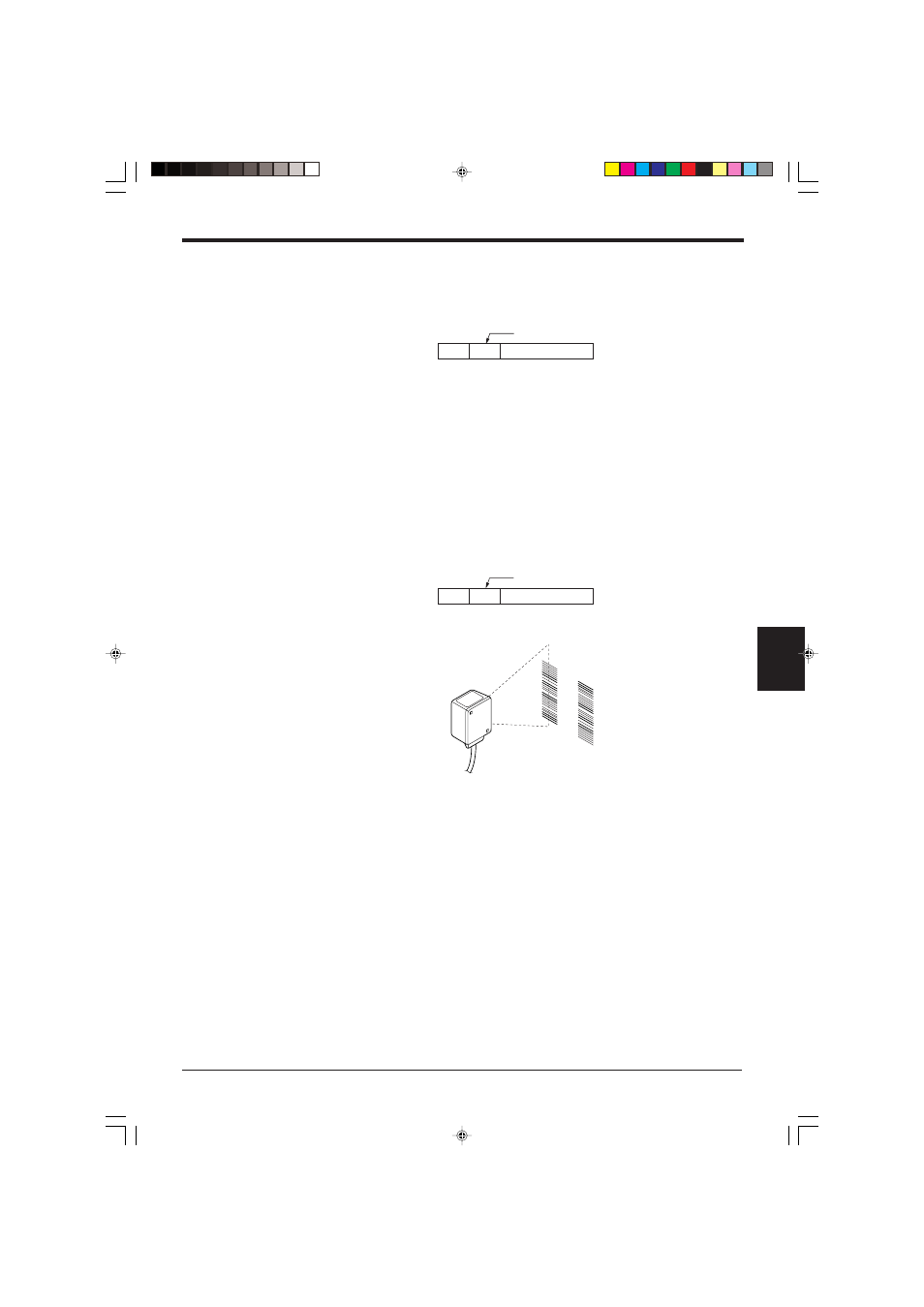

6.6.4 Label orientation add function
Adds the orientation of bar code travel before the readout data.
➮ See pages 52 and 93
■ Data format
* If an read error occurs, this information is not added.
* The partition mark (:) can be changed as desired (1 character max.).
Readout data t :
Partition mark
t = 0 : CODE39
1 : ITF
2 : Industrial 2of5
3 : Codabar
4 : EAN/UPC (A•E)
5 : CODE 128
6 : COOP 2 of 5
7 : Read error
8 : CODE93
Readout data r :
Partition mark
r = F: Forward orientation
R: Reverse orientation
4 9 0 0 0 0 0 0
4 9 0 0 0 0 0 0
Reverse
orientation
Forward
orientation
