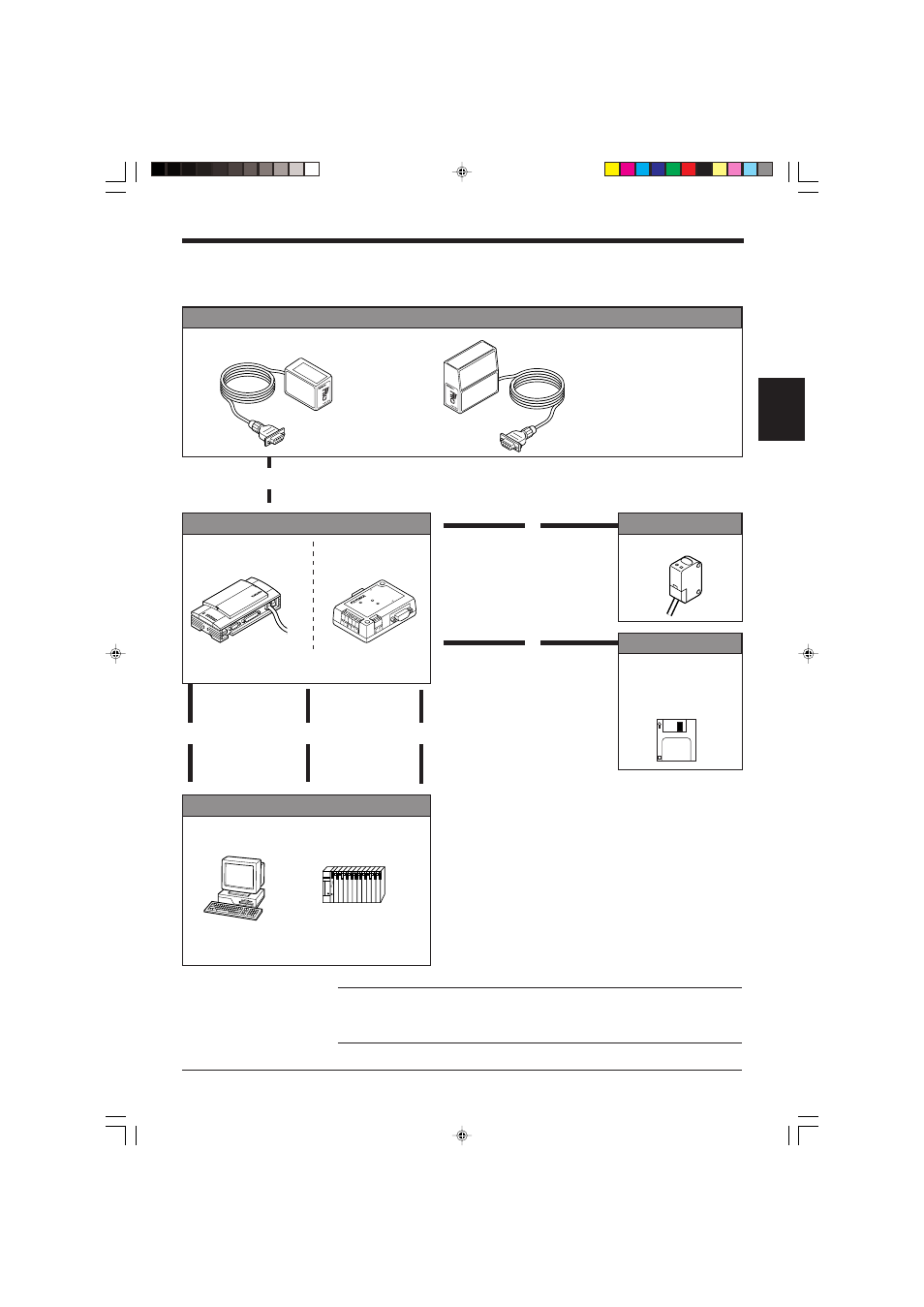

2.3.2 Basic system configuration and connection/operation procedures for
RS-422A communication
LA SER O N
OK/NG TI MIN G TE ST
LAS ER ON OK/N G TI MING
TEST
BL-600 Series
BL-600/601/600HA/601HA BL-650HA/651HA
Installation
➮ See pages 72 to 80.
• Check before installation
• Position adjustment using
test mode
• Installation
▼
Connection to the READER port
With the BL-U1
➮ See page 16.
With the BL-N42 ➮ See page 25.
Optional power supply unit
POW ER SD
RD
READER
RS-232C
6
1
Power-up
DIP switch setting
➮ See page 17.
2
4
Trigger input
Photoelectric sensor
Host computer
▼
3
Connection
With the BL-U1
➮ See pages 23 to 24.
With the BL-N42
➮ See pages 31 to 32.
▼
8
Serial communi-
cation
➮ See “Chapter 7,
Serial Communication.”
PLC link
➮ See “Chapter 8, PLC Link.”
▼
PC PLC (RS-422A link unit)
▼
9
7
Connection
With the BL-U1
➮ See page 19.
With the BL-N42 ➮ See page 27.
▼
5
Setting of the BL-600 Series
(Use one of these setup tools.)
Setup tools
Setup software
BL-H60WE
➮ See “Chapter 4, Setup
Software.”
▲ ▲
Note: When the N-42 is used as a power supply unit, the communication type is
set to RS-422A, therefore the BL-600 Series cannot be connected directly to a
personal computer. To set the BL-600 Series with a personal computer, use an
RS-232C type power supply unit (BL-U1 or BL-U2).
