Chapter 2 Overview
2
12
2.3 System Configuration and Connection/Operation Proce-
dures
This section describes the basic system configuration and the connection/operation
procedures to use RS-232C, RS-422A, or multi-drop link.

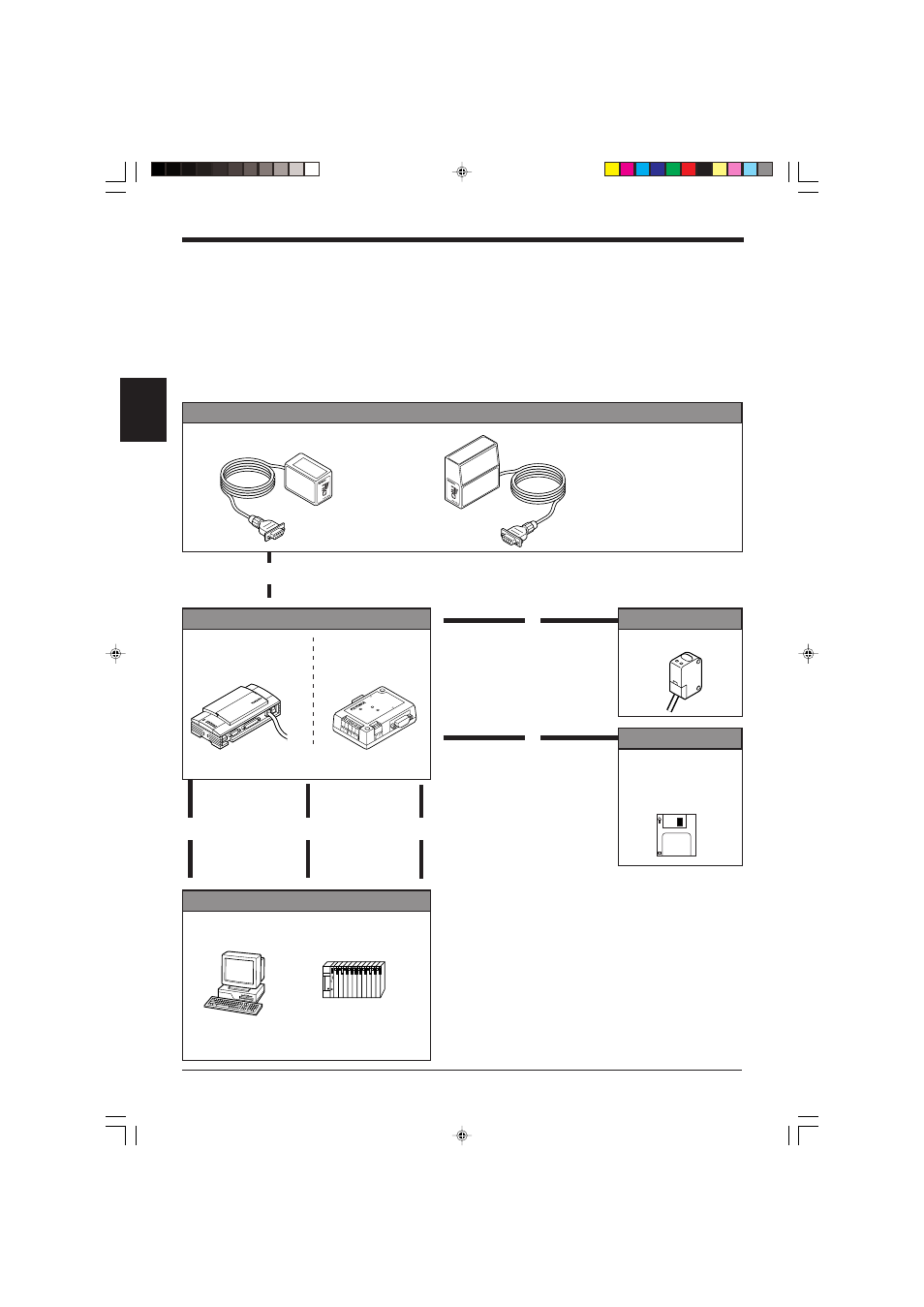

2.3.1 Basic system configuration and connection/operation procedures for
RS-232C communication
LASE R ON
OK/NG TIM IN G TE ST
LA SER ON OK /N G TIMIN G
TE ST
BL-600 Series
BL-600/601/600HA/601HA BL-650HA/651HA
Installation
➮ See pages 72 to 80.
• Check before installation
• Position adjustment using
test mode
• Installation
▼
Connection to the READER port
With the BL-U1
➮ See page 16.
With the BL-U2 ➮ See page 25.
Optional power supply unit
POWER SD
RD
READ ER
RS-232C
6
1
Power-up
DIP switch setting
➮ See page 17.
2
4
Trigger input
Photoelectric sensor
Host computer
▼
3
Connection
With the BL-U1
➮ See pages 20 to 23.
With the BL-U2
➮ See pages 28 to 30.
▼
8
Serial communi-
cation
➮ See “Chapter 7,
Serial Communication.”
PLC link
➮ See “Chapter 8, PLC Link.”
▼
PC PLC (RS-232C link unit)
▼
9
7
Connection
With the BL-U1
➮ See page 19.
With the BL-U2 ➮ See page 27.
▼
5
Setting of the BL-600 Series
(Use one of these setup tools.)
Setup tools
Setup software
BL-H60WE
➮ See “Chapter 4, Setup
Software.”
▲ ▲
BL-U1 BL-U2
