55

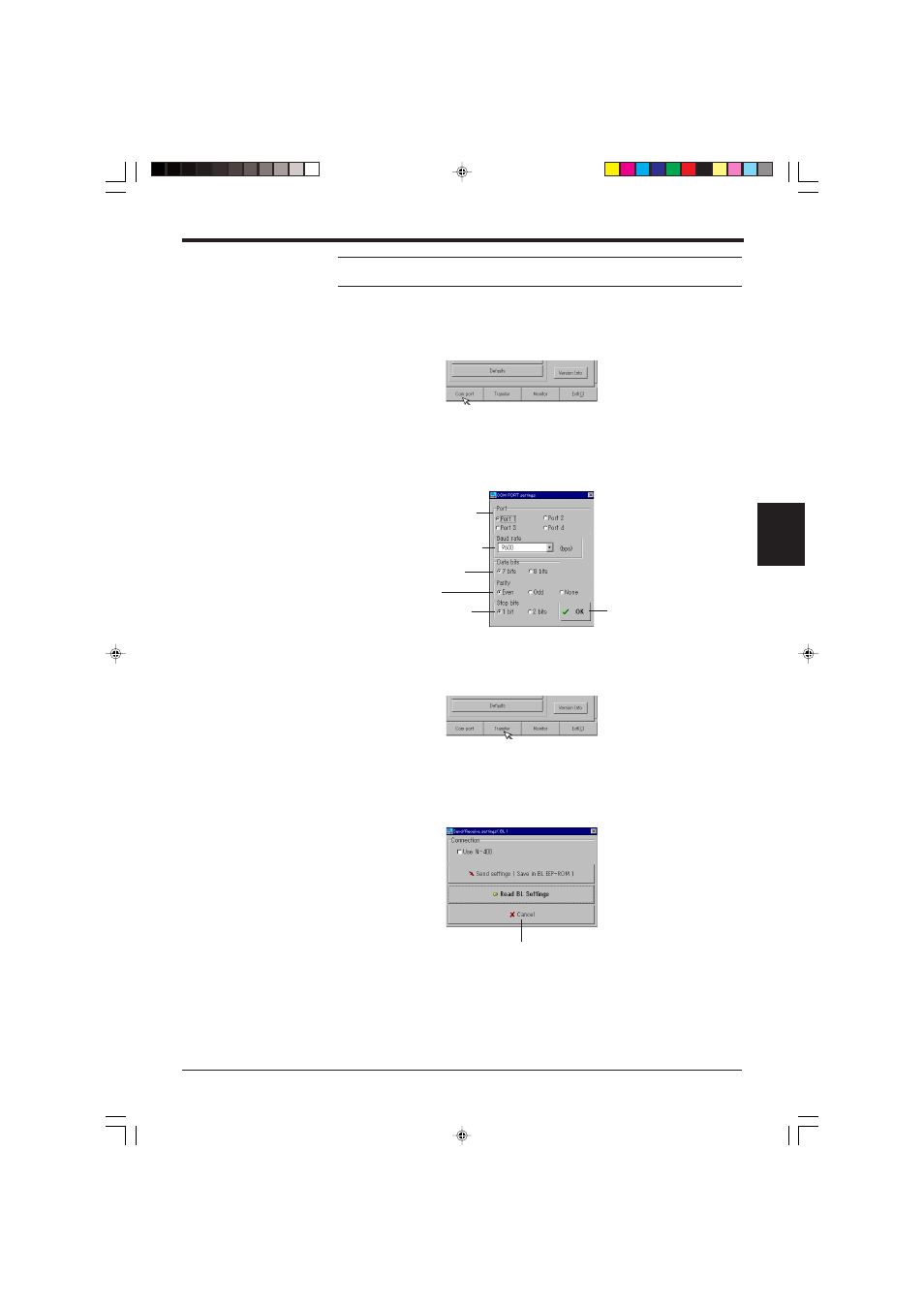

Chapter 4 Setup Software
4
Note: If PLC link is enabled, you cannot send data to the BL-600 without perform-
ing this step because the handshaking protocol is set for PLC link only.
3. Check or change the communication parameter settings of the personal com-
puter.
1) Click on [[Com port]].
2) Set each parameter as shown below.
3) Select an appropriate RS-232C port.
4) When the settings are complete, click the [OK] button.
4. Sending/receive settings to/from the BL-600 Series via the N-400.
1) Click on [[Transfer]].
2) The “Send/Receive settings (BL)” screen appears.
• To send the updated settings to the BL-600 Series
Click the [Send settings] button.
• To read the settings of the BL-600 Series
Click the [Read BL settings] button.
Baud rate: 9600 bits/s
Stop bit length: 1 bit
Parity: Even
Data length: 7 bits
Select an appropriate
RS-232C port.
Click the [Cancel] button to return
to the previous screen.
Click the [OK] button to return
to the previous screen.
