Chapter 4 Setup Software
4
Note: When reading a standard distribution code (bar codes on carton boxes), fix
“Code length” to 14 or 16 digits in the [[Code setup]] screen and enable “Inspect
check-digit [Modulus10/Weight3]”.
For “Codabar”
• “Start/stop character”
If “Lower-case” or “Upper-case” is set, the BL-600 Series adds an “a”, “b”,
“c”, or “d” (lowercase or uppercase) to the read data and sends it to the
PC.
• “Inspect check-digit”
If “Inspect check-digit” is set, the option “Send check-digit” is activated
(displayed in black).
• “Send check-digit”
If “Send check-digit” is set, the BL-600 Series sends the read data with
the check digit to the PC.
• “Type of check-digit”
Select the type of check digit to use.
For “UPC/EAN”
• “No. of the UPC-A output”
Specify whether to use a 13-digit or a 12-digit output when reading the
UPC-A data.
• “Add UPC-E system code 0”
If “Add” is selected, the BL-600 Series adds a “0” to the beginning of the
data and sends it to the PC.
* The check digit setting is not provided on the screen, but the BL-600 Series
internally calculates it using modulus 10/weight 3. (The data is sent.)

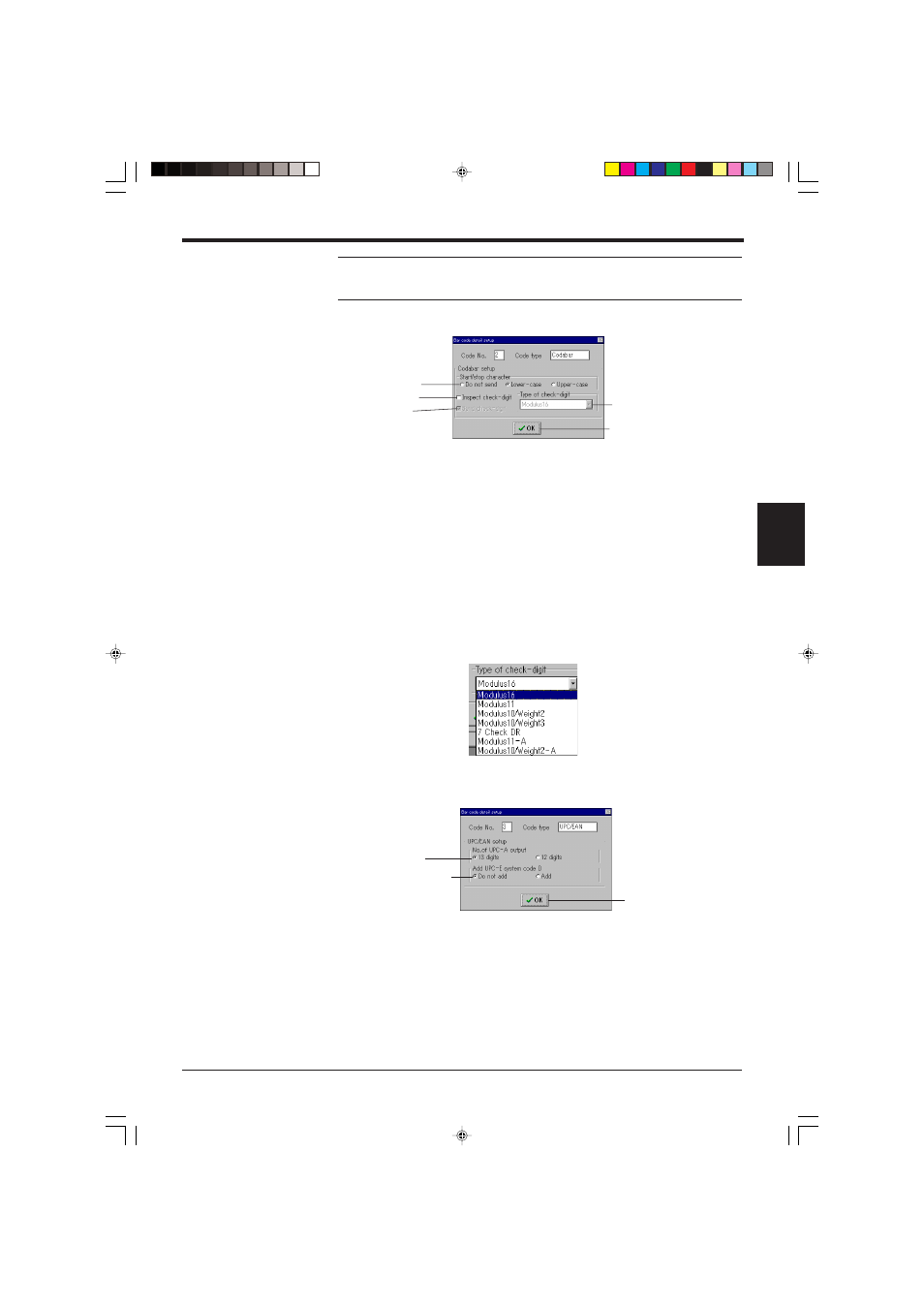

“Send check-digit”
Click the [OK] button to return to
the [[Code setup]] screen.
“Type of check-digit”
“Start/stop character”
“Inspect check-digit”
“No. of UPC-A output”
“Add UPC-E system code 0”
“Add UPC-E system code 0”
is only displayed when
reading the UPC-E data.
Click the [OK] button to return
to the [[Code setup]] screen.
