6416Y2 Output Slots
Active Pro64 network Slots coming into a Yamaha device via a 6416Y2 card are always available to be
output from the card to the Yamaha console. The Yamaha operator makes the choice to use a Pro64
network resource by patching one or more Pro64 network Slots into the Yamaha device for mixing and/or
processing as needed. For this reason, the output Slots (as seen in all device views) for 6416Y2 cards in the
network are always on; their yellow LEDs in the Device Window cannot be changed.

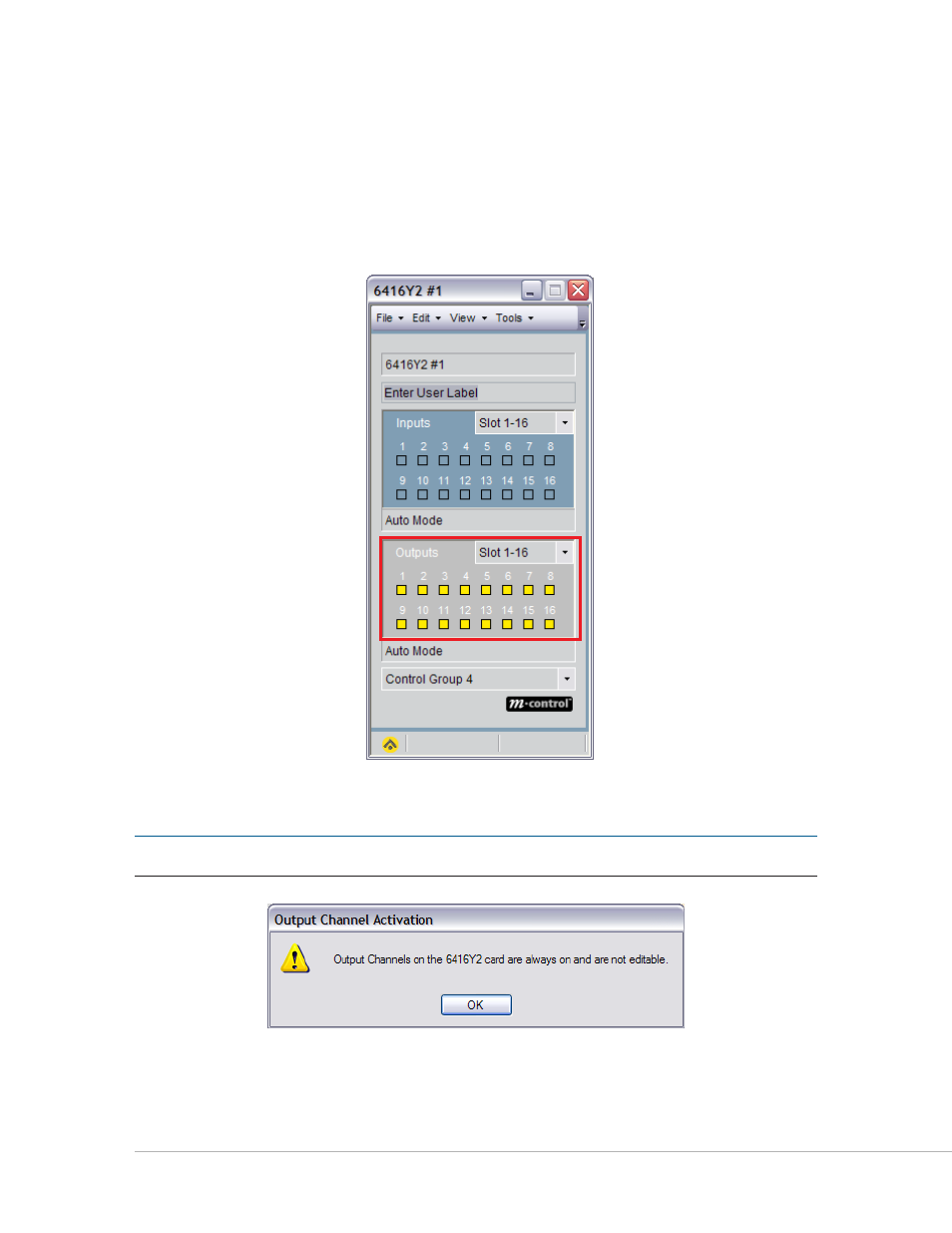

6416Y2 card output Slots are always on.
P N
ote
: The 6416Y2 card’s Device Window does not allow output channels to be turned off.
Clicking an output Slot on a 6416Y2 will cause this warning dialog box to appear.
