RS-232 Cables and Pinout
Using an RS‑232 device with a Pro64 device requires a female‑to‑female DB9 null modem cable (also
referred to as a crossover cable).
The RS‑232 jack found in the VDC section of a Pro64 device has the following pinout.
1 2 3 4 5
6 7 8 9

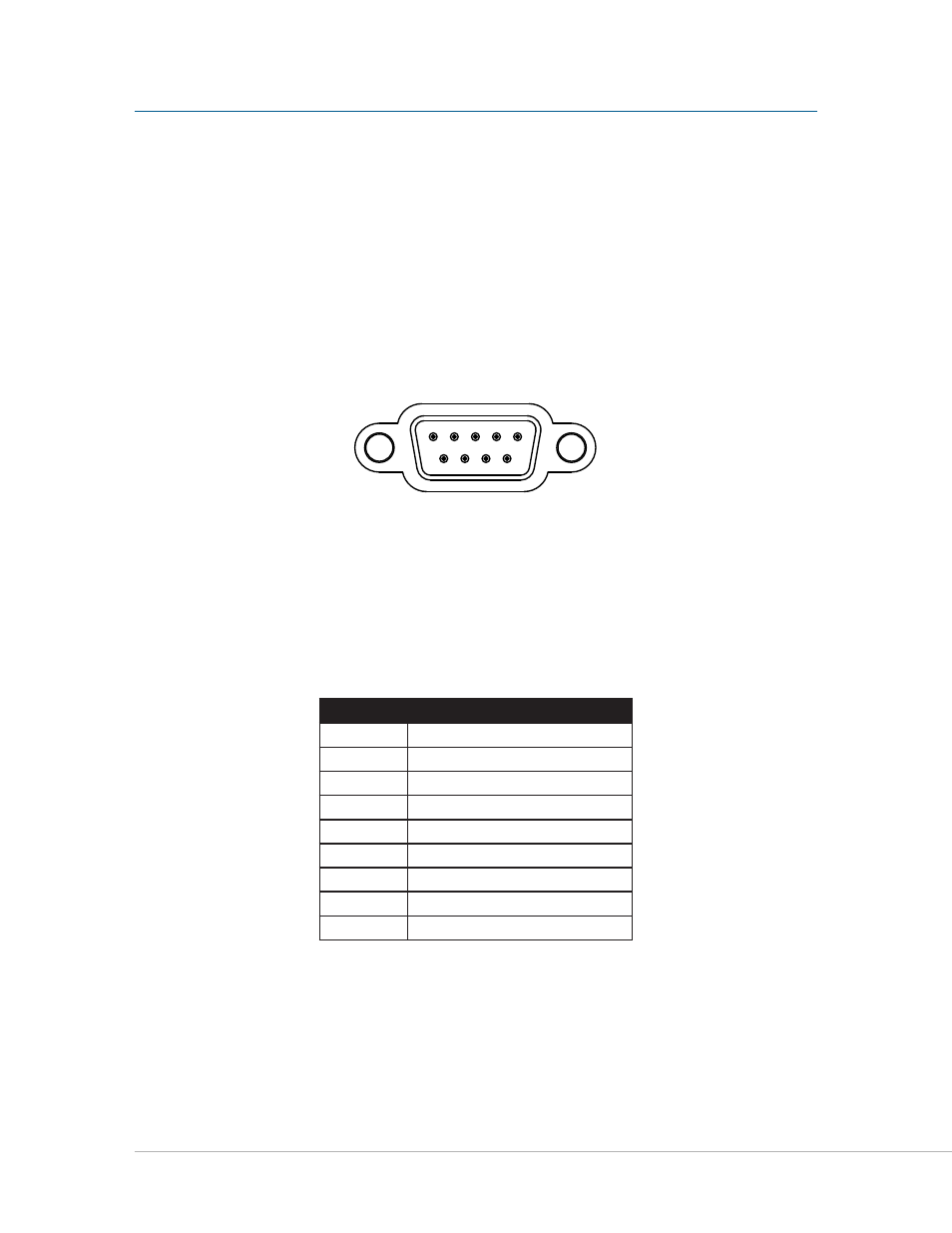

DB9 connector pinout on a Pro64 device
RS-232 Connections
The table below describes the pinout for the RS‑232 connectors found on Pro64 devices.
Pin
Signal
1
Data Carrier Detect *
2
Received Data
3
Transmitted Data
4
Data Terminal Ready *
5
Signal Ground
6
Data Set Ready *
7
Request To Send *
8
Clear To Send *
9
Ring Indicator *
* Not supported, no connect
