132 P
ro
64 N
etwork
M
aNager
U
ser
g
Uide
v
irtUal
d
ata
c
able
m
oNitor
A Pro64 Network Manager project saves the configuration of all Virtual Data Cables (VDC) active in the
network as part of a project. You can also use Scenes to recall different combinations of VDC assignments
from within a single project if required.
The read‑only Virtual Data Cable Monitor window provides an overview of the 14 available VDC Slots.
Making changes to VDC settings and routing must be done from the front panels of the Pro64 devices.
To open the Virtual Data Cable Monitor window choose v
IrtuAl
D
AtA
c
ABle
m
oNItor
from the Windows
menu of the main workspace or use the keyboard shortcut Ctrl+3. Resize the window as needed; scroll
bars appear automatically as the window is resized.

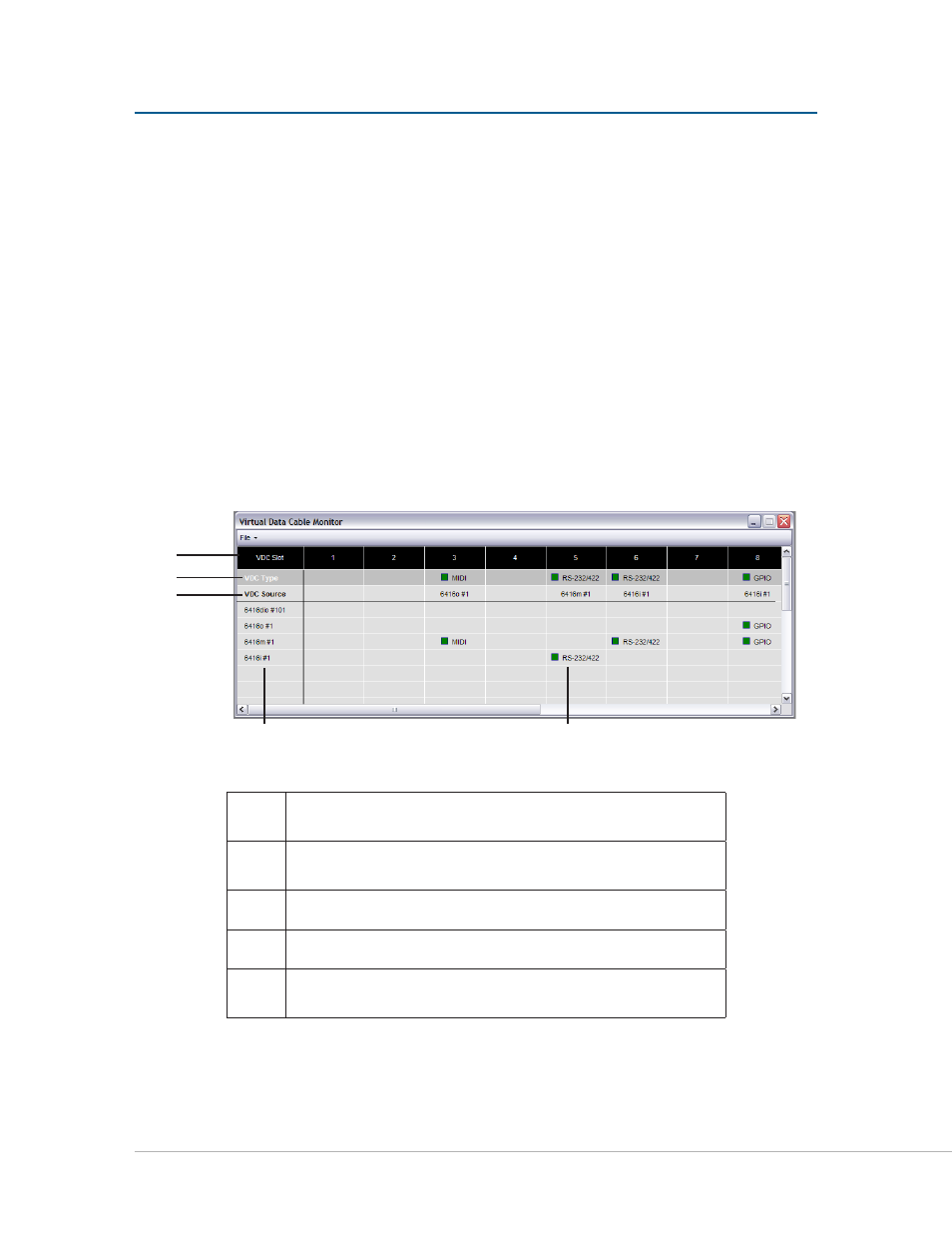

The Virtual Data Cable Monitor Window
Components of the Virtual Data Cable Monitor window are described below.

v
w
x y
 VDC Slots; each of the 14 columns lists the settings for one of the
Virtual Data Cables
v VDC Type; shows the type of Virtual Data Cable input that is active
on the source device
w VDC Source; the Pro64 device where the VDC input is connected
x List of all VDC‑compatible devices in the current network
y VDC destination; shows the type of Virtual Data Cable being
output from the Pro64 device
