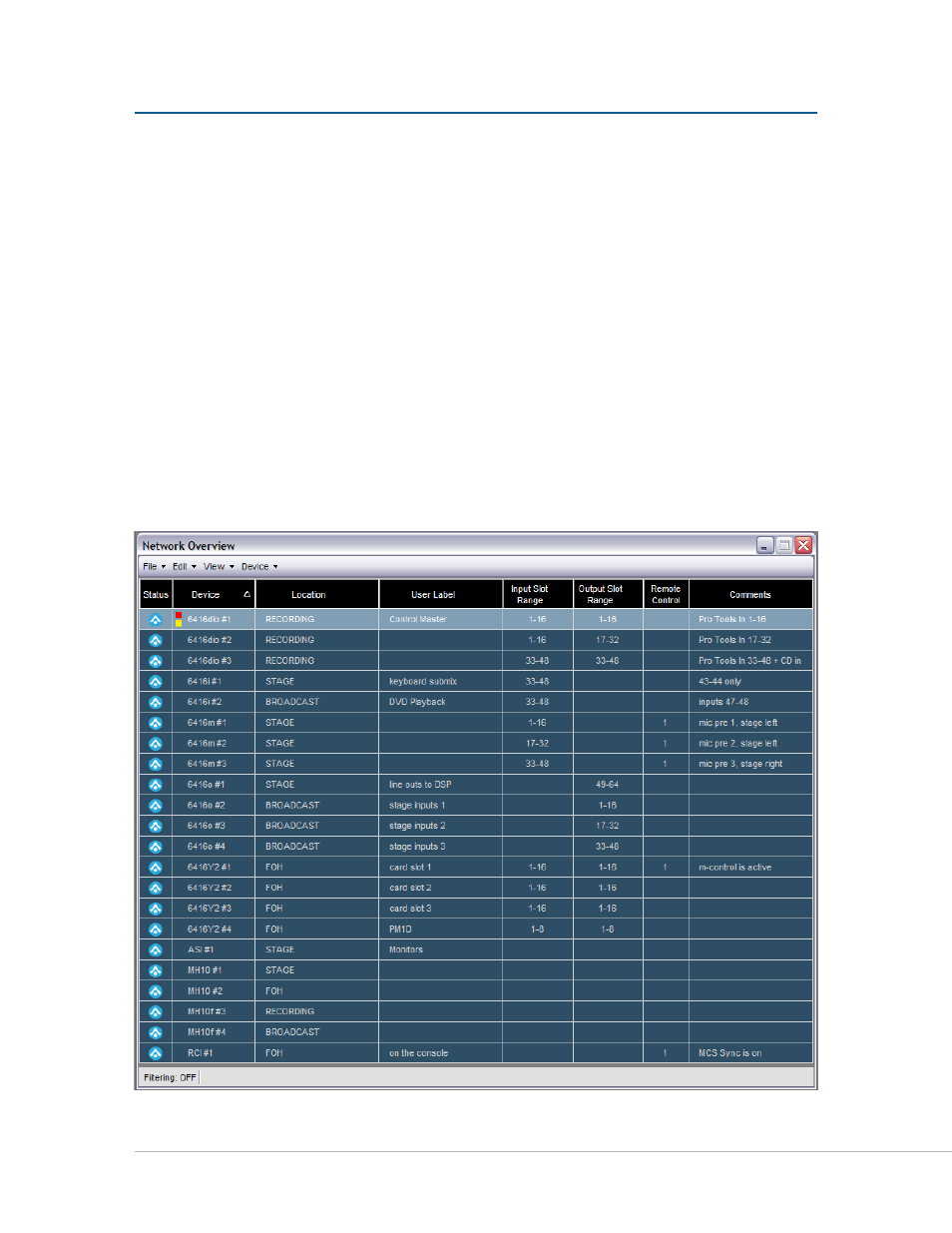

The Network Overview contains the following information about the Pro64 network and its active devices:
Information is arranged in table format in rows and columns. Open the Network Overview from the main
workspace by choosing
N
etwork
o
vervIew
from the windows menu or by using the shortcut Ctrl+1.
The following information is displayed:
•
Status – The blue A‑Net icon signifies that a Pro64 device is active in the network
•
Device Type – 6416m, MH10, ASI, etc.
•
Device Numeric ID – Used to help identify multiple devices of the same type
•
Location – A user‑defined field based on where a Pro64 device is installed
•
User Label – User editable text, 16 characters maximum
•
Input Slot Range – The current Slot range setting for each input‑capable Pro64
device
•
Output Slot Range – The current Slot range for each output‑capable Pro64 device
•
Remote Control – Shows the Control Group setting for 6416m, RCI, and 6416Y2
•
Comments – User‑defined text, 256 characters maximum
The Network Overview is arranged in columns and rows; data can be sorted by clicking the column headings.
