In addition to the Device Overview features described above, most device windows have a View menu
used to open and close the various views provided for the device. The options include:
• Device Overview (all devices)
• Inputs to Network (AllFrame, 6416i, 6416m, 6416Y2, and 6416dio)
• Outputs From Network (AllFrame, 6416o, 6416Y2, 6416dio, and ASI)
Inputs and Outputs (AllFrame, 6416Y2 and 6416dio)
•
•
Device Presets (AllFrame, 6416i, 6416m, 6416Y2, 6416o, 6416dio, and ASI)
• Port Names (MH10/MH10f only)
The RCI device window does not require a View menu; all information is displayed in the overview.
Inputs to Network View
The AllFrame, 6416i, 6416m, 6416Y2, and 6416dio share a common set of controls for managing inputs
to the network. To open this view, choose I
Nputs to
N
etwork
from the View menu. The view will open,
showing the available inputs and channel strip parameters for mic preamps (if applicable).

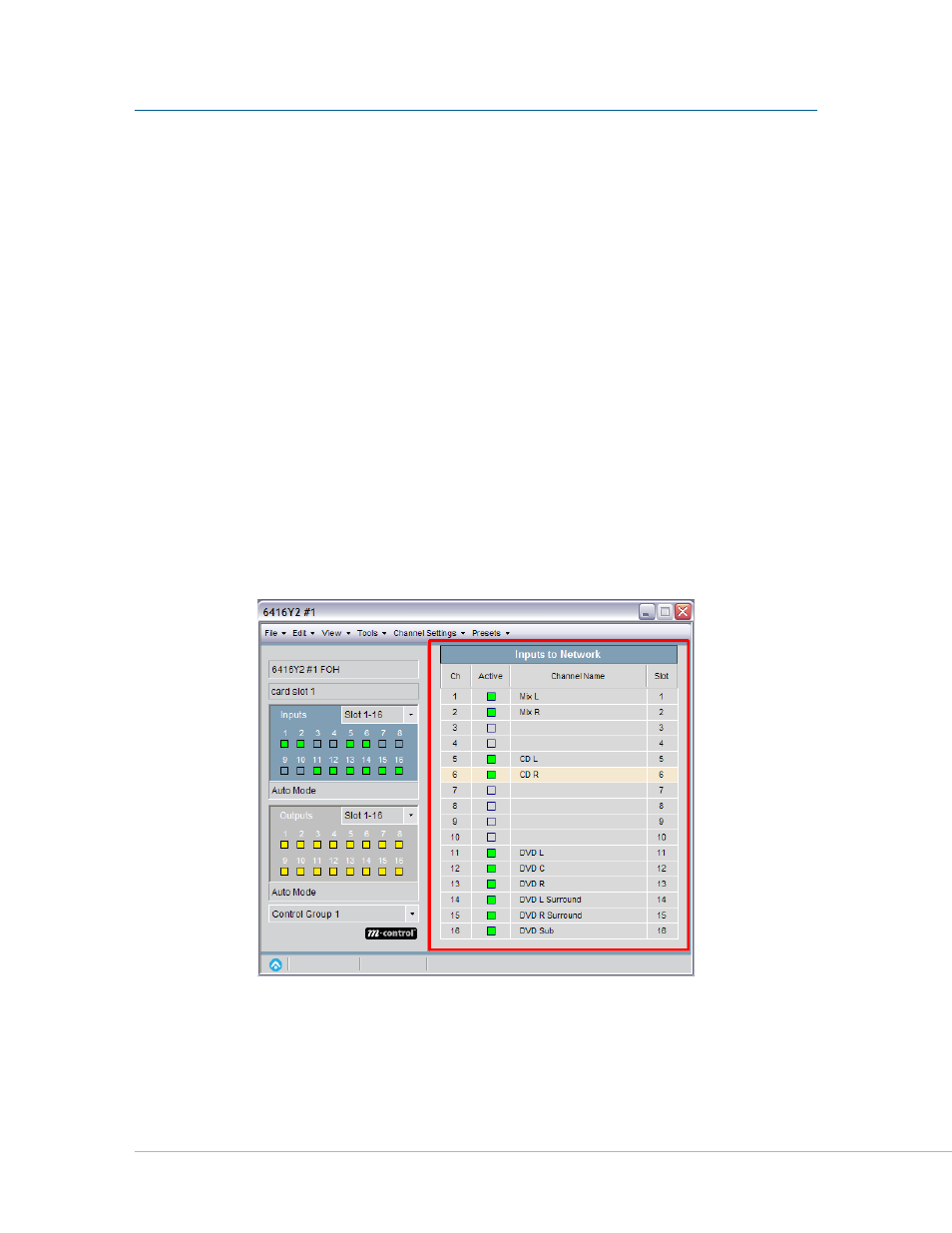

The Inputs to Network view
The first four columns of data displayed are common to all five devices. The c
h
column corresponds to
the input channels on the Pro64 device; this is a read‑only field. The A
ctIve
column mirrors the channel
grid seen in the device overview. To toggle a setting click a channel’s A
ctIve
box from either location. The
Active box will light green if the channel is active on the network.
Text in the c
hANNel
N
Ame
field is user‑defined. Click to edit the text; there is a 16‑character maximum.
