AllFrame I/O Grids
AllFrame devices have slightly different I/O grid displays because their I/O hardware is user‑configurable.
The top section of the Device Window will show a table of the installed I/O cards, using letters corresponding
to the card’s installed location plus channel numbers on the card (A1‑A4, D1‑D4, etc.). Individual on/off
switches are provided in the Input and Output grids based on the actual cards installed. Inputs or outputs
that are not applicable to a certain card slot will be grayed out. The basic functionality of the iI/O switches
is the same as that for the rack‑mounted Pro64 I/O devices: click to activate or deactivate a Slot.
P N
ote
: An AllFrame device’s inputs are not automatically assigned to network Slots; this must be done
using the Inputs to Network view on a per‑channel basis prior to activating an input.

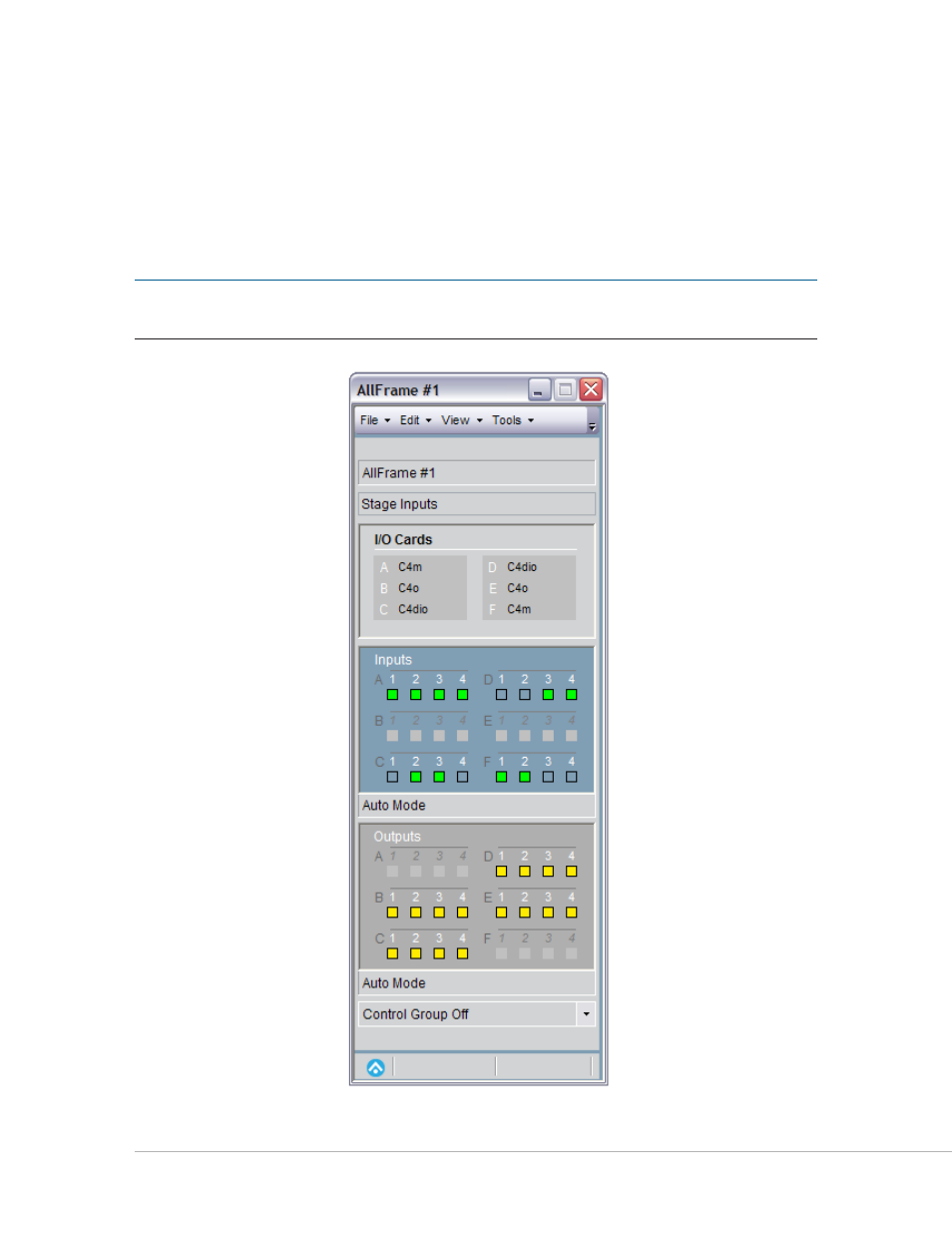

The Device Overview for an AllFrame device shows its installed cards as well as the current state of all I/O slots.
