Matrix Assignments on the ASI
The ASI A‑Net Systems Interface allows Pro16 output devices such as the A‑16II Personal Mixer to be
connected to a Pro64 network. The ASI has four Pro16 outputs, labeled on the hardware in blocks of
sixteen channels as 1‑16, 17‑32, 33‑48, and 49‑64. In its standard configuration, the ASI outputs the 64 Slots
of a Pro64 network (at 44.1/48kHz) in sequential order. Adding matrix assignments to the ASI makes this
device even more powerful.
A
B
C
Zone:
D
The ASI front and rear panel interface s
Within the Pro64 Network Manager interface the four Pro16 outputs of the ASI are referred to as
Z
oNes
;
the Zones are labeled A, B, C, and D. With the addition of matrix assignments the Pro16 outputs no longer
need to be restricted to sequential blocks of 16 channels. Each ASI in the network can create four unique
sets of outputs channels for on‑stage monitoring with A‑16II Personal Mixers using any Slots in the Pro64
network. Any number of ASI devices can be added to a Pro64 network to provide an unlimited number of
custom programmable multi‑zone monitor mix feeds.

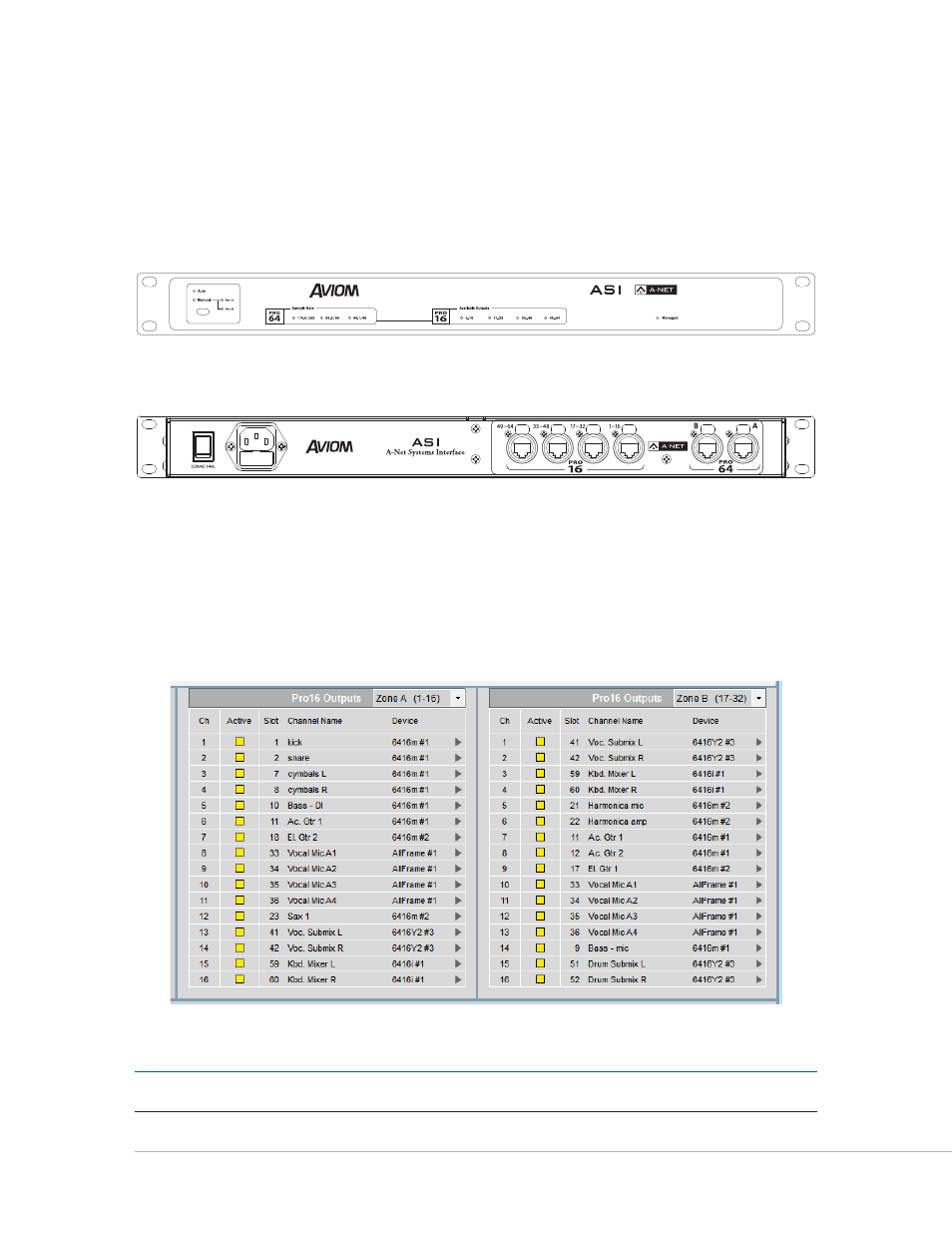

Two Zones of the ASI are shown with matrix assignments.
P
N
ote
:
The outputs on an ASI cannot be turned off.
