* If you are using the 6416Y2 A‑Net Interface Card as the Control Master device, you can simplify the
firmware update process by switching the Control Master function to a rack‑mount Pro64 I/O device or
AllFrame device temporarily.
** The 6416dio Digital I/O Module has a 12‑position DIP switch on its rear panel; DIP switch #10 is still
used to set the device as the Control Master for the network. Leave DIP switches 11 and 12 in the down
position. (DIP switch #12 selects between RS‑232 and RS‑422 communication.)
P
N
ote
:
The DIP switch settings described above must be used any time the firmware is updated or rolled
back on a rack‑mount I/O device used as the network’s Control Master. Leave the DIP switches set
as shown in the diagram above to simplify future updates.
VIRTUAL DATA CABLE PORTS
AC POWER
FUSE: 250VAC-F4AL
IN
OUT
1 2 3 4
1
2
3
4
RS-232
RESERVED
CONTROL MASTER
1–8
9
10
IN
OUT
ON
RS-232
1.75 AMP
PIN 1 = GND
PIN 4 = 24VDC
BACKUP POWER
GPIO INPUT
UP = ISOLATED
DN = TTL
9–16 THRU (ALT. IN)
1–8 THRU (ALT. IN)
Mic/Line Inputs (Bal) Pin 2 Hot
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Mic Input Module
B
A

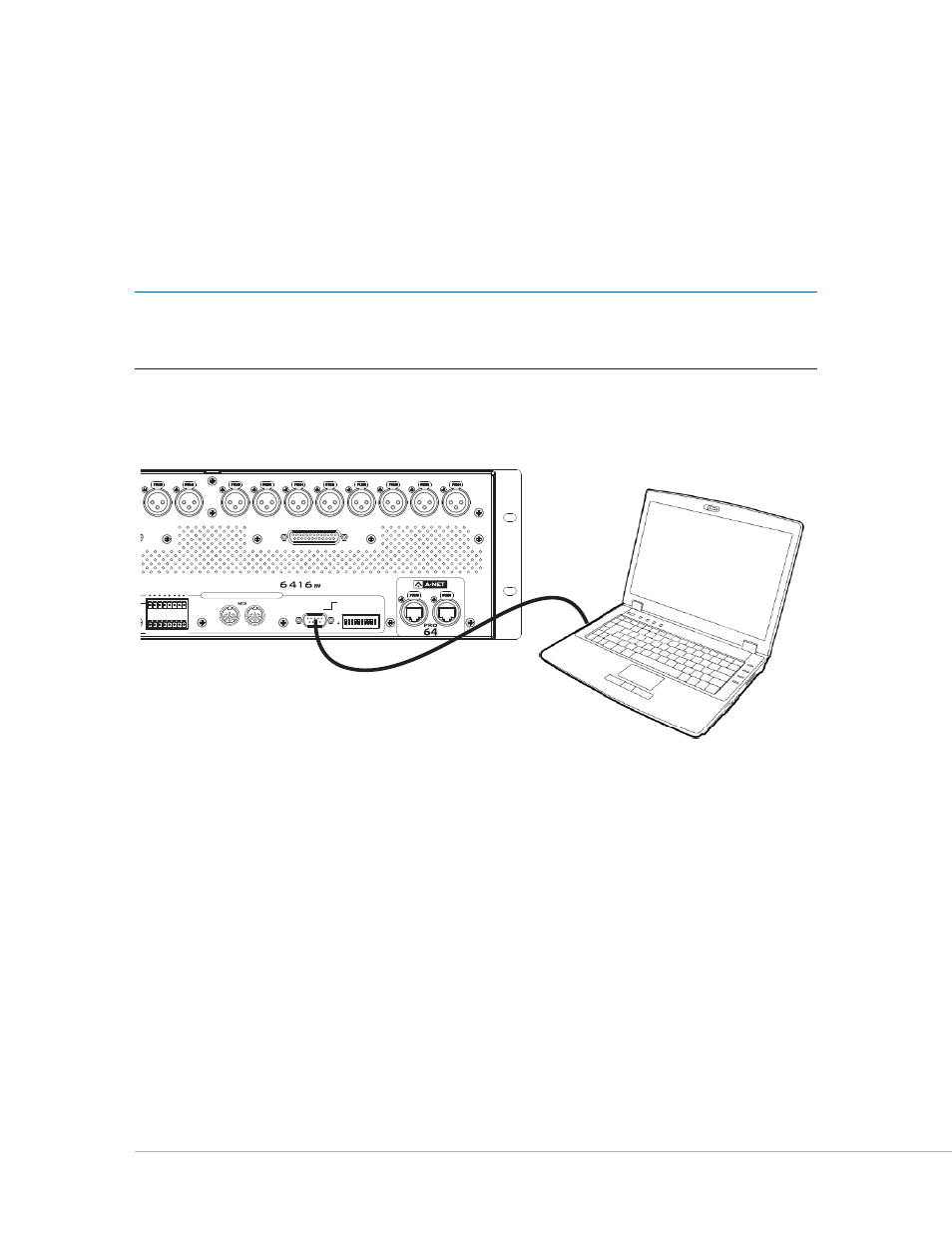

Connect the PC to the Control Master device with an RS-232 cable.
