Serial Interface
The Serial Interface field determines how the 6416Y2 card communicates with the Yamaha host device—
either from the rear panel Remote jack of the host device via a DB9 serial cable, or from the Yamaha device’s
backplane connector (currently required for the LS9, M7CL‑ES, and CL Series consoles).
Network Slots to be Remote Controlled
When m‑control is being used, the 6416Y2 card can be set up to control any or all of the available mic
preamps in the Pro64 network. Use the check boxes to select the group of Slots that should be controlled
from the Yamaha device (1‑16, 17‑32, 33‑48, and/or 49‑64) in any combination.

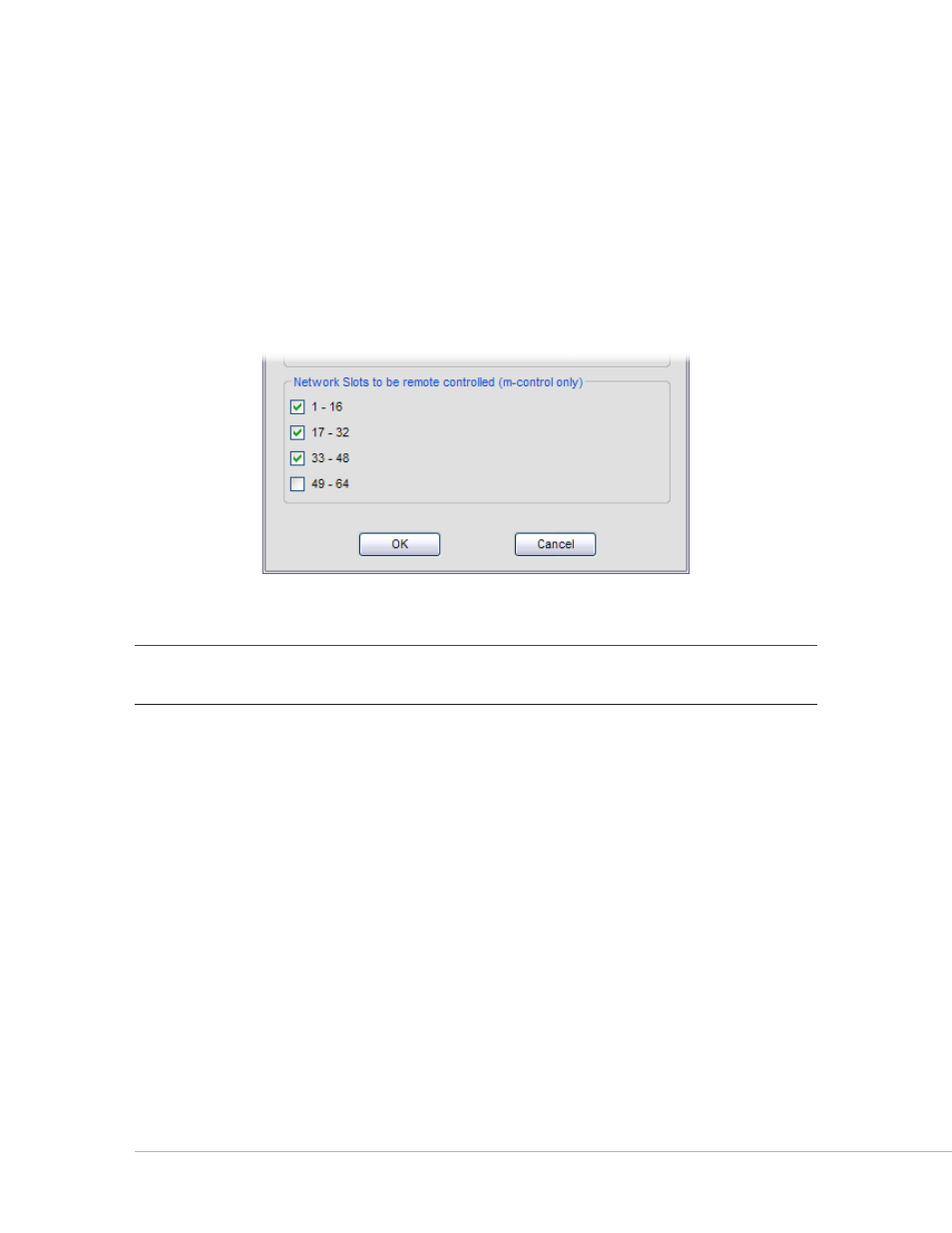

Select which mic preamps to control by clicking the check boxes.
P
N
ote
:
When controlling remote preamps with m‑control, remember that the Control Group setting
must match on both the sending and receiving devices.
