Communication Setup For AllFrame I/O Devices
AllFrame Modular I/O System devices such as the F6 Modular I/O Frame do not require the user to set a
baud rate prior to starting firmware updates. When an AllFrame device such F6 is the Pro64 network’s
Control Master follow these steps to set up the device for firmware updates:
Remove the
•
control panel cover on the front of the F6.
Make sure that the Control Master switch is in the up position.
•
Connect a
•
USB cable to the Type‑B USB port on the F6.
Connect the other end of the USB cable to the PC.
•
Launch the Pro64 Network Manager application.
•
1
2
3
4
C4
m
1
2
3
4
C4
o
1
2
3
4
C4
o
1
2
3
4
C4
o
ALLFRAME
A
B
C
D
E
F
Modular I/O Frame
F6
CONTROL
MASTER
STANDBY

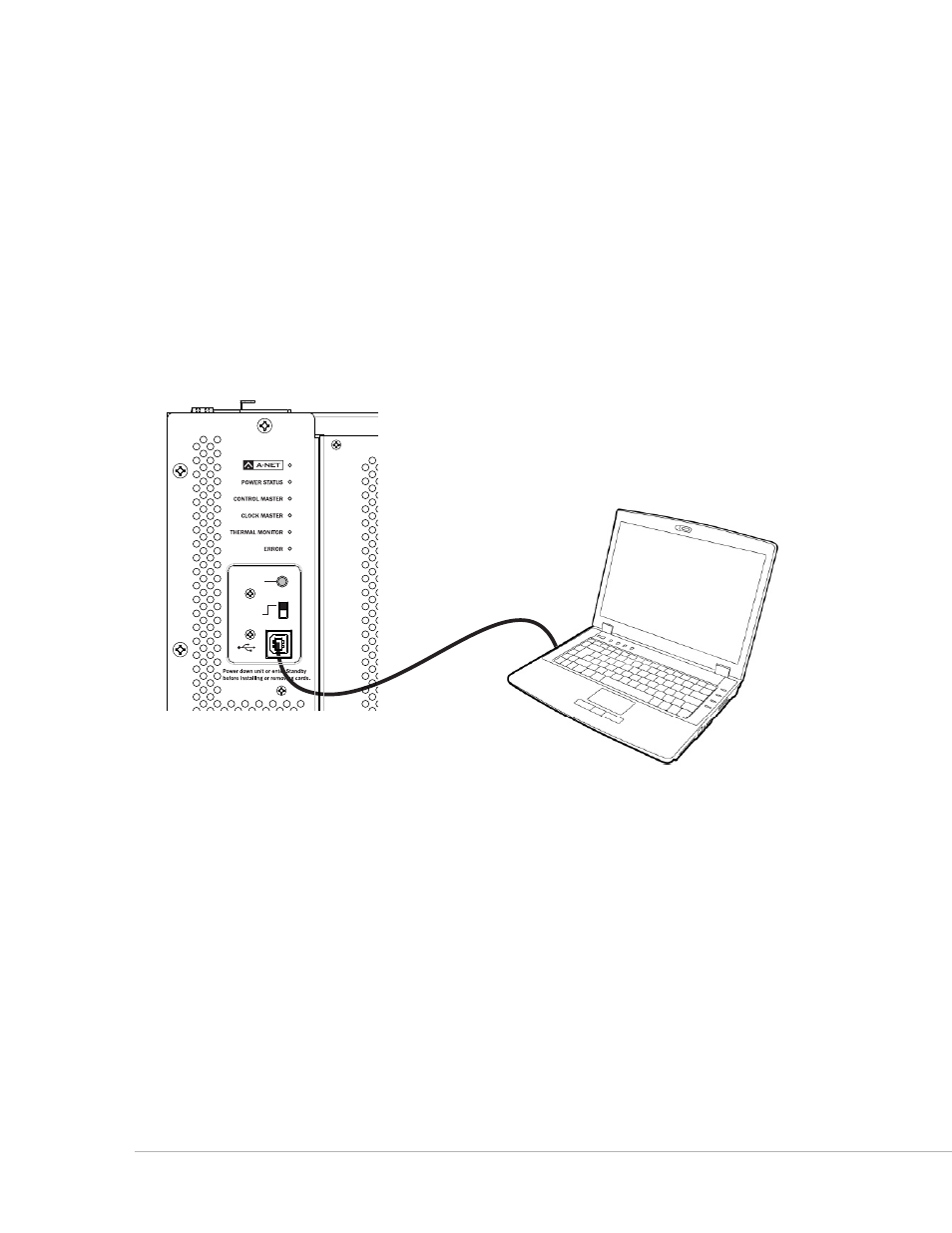

Connect the F6 to a PC using a USB cable when the F6 is the Control Master.
