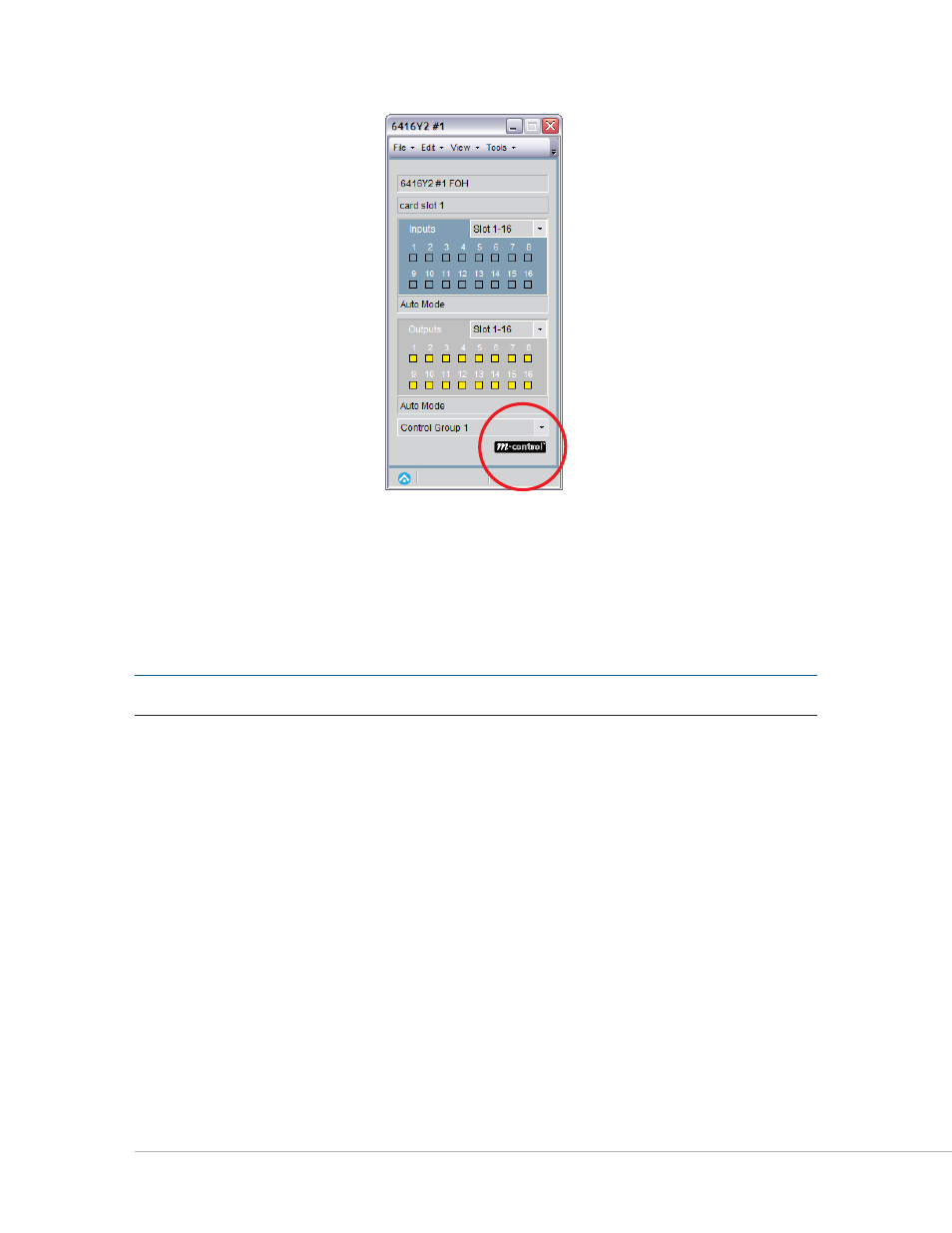

The m-control icon appears for any 6416Y2 card that has DIP switch #10 activated.
Install the 6416Y2 card into Yamaha MY slot #1 when using m-control
A 6416Y2 card that is set to be the network’s Control Master cannot also have m‑control active. If the
network has only one 6416Y2 card installed, there are two options: set a different Pro64 device as the
Control Master or work without m‑control enabled. In a network with multiple 6416Y2 cards installed,
simply activate m‑control on a card that is not the Control Master.
P
N
ote
:
The m‑control feature needs to be disabled during firmware updates.
VDC Settings
When a 6416Y2 card is used as the network’s Control Master, no Virtual Data Cables can be assigned to
that 6416Y2 card while the Pro64 Network Manager application is connected and actively managing the
network.
