6416Y2 Status Icon

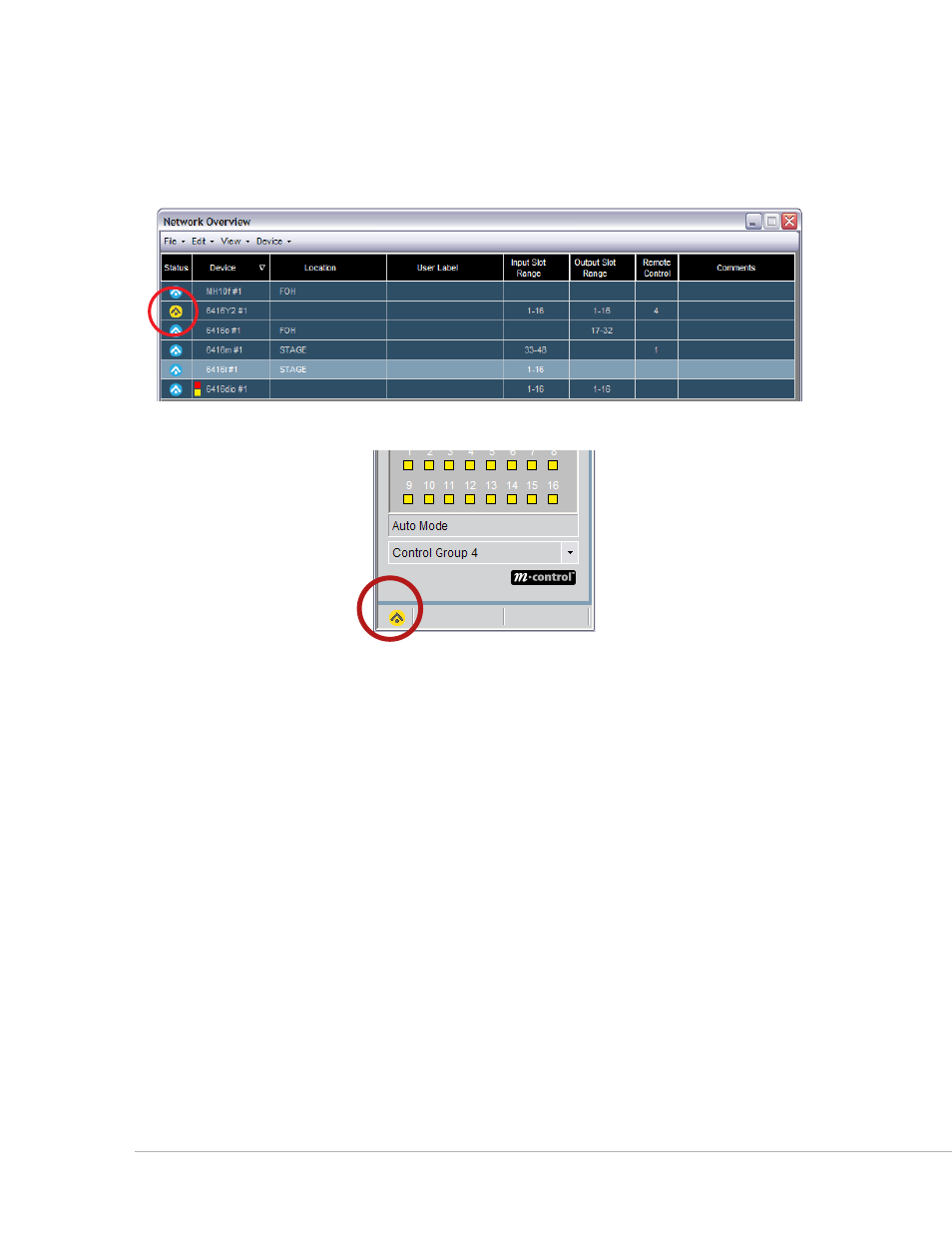

In the Network Overview window the 6416Y2 card’s Status column displays a blue A‑Net icon to indicate
that the card can be controlled. A non‑controllable card will have a yellow A‑Net status icon. The same
status icon is seen in the card’s Device Window.
The yellow icon indicates that the card is not controllable.
The yellow A-Net icon indicates a card that is not controllable.
m-control
Using m‑control to provide remote preamp control from a Yamaha device requires the user to set DIP
switch #10 on the card’s front panel to the ‘on’ position (down) in order to activate the function; it cannot
be activated from within the Pro64 Network Manager software. When m‑control is activated for one or
more 6416Y2 cards in the network a special icon will appear in the Device Window for each card. The
card configuration dialog box for choosing m‑control settings is available in the Tools menu of the card’s
Device Window. See page 89 for more information.
