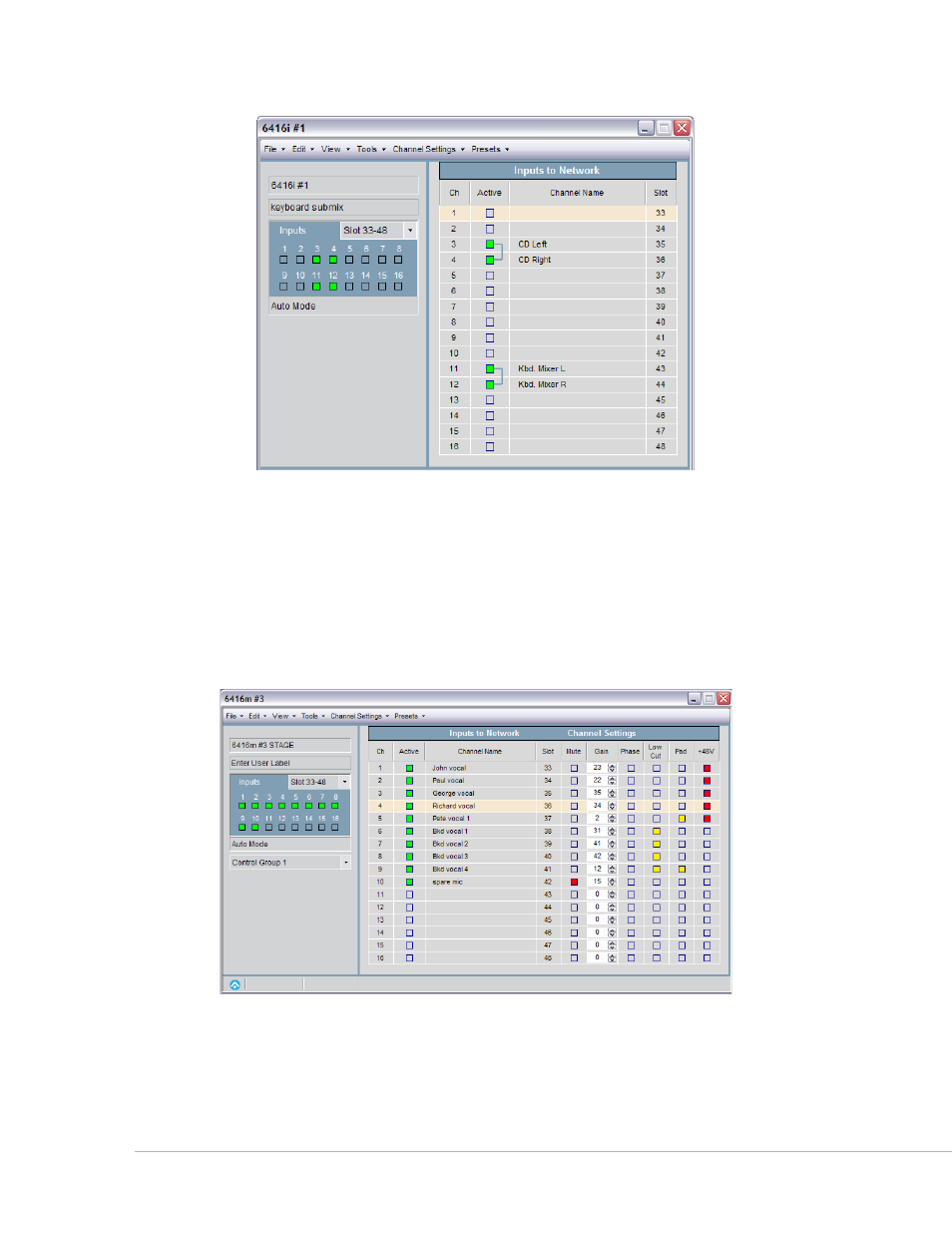

Stereo links are set on channels 3–4 and 11–12.
Mic Preamp Channel Settings
In addition to the input settings common to all Pro64 input devices, the Inputs to Network view for the
AllFrame and 6416m display the channel strip parameters for the mic preamps: Mute, Gain, Phase, Low Cut
filter, ‑24dB Pad, and +48V Phantom Power.
6416m channel strip settings in the input view
Click any button in the channel strip to toggle its status; to change mic preamp gain click the up/down
arrows on screen or click in the numeric Gain field to edit gain values with the keyboard arrow keys or with
text entry.
