Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014

97

Start-up Guide for CHPS-Series Stage with Ultra3000 Drive and Ultraware Software Appendix D

Oscilloscope Verification

Correct stage and Ultra3000 drive wiring yields the phase relationship shown in
Hall Oscilloscope Diagram.

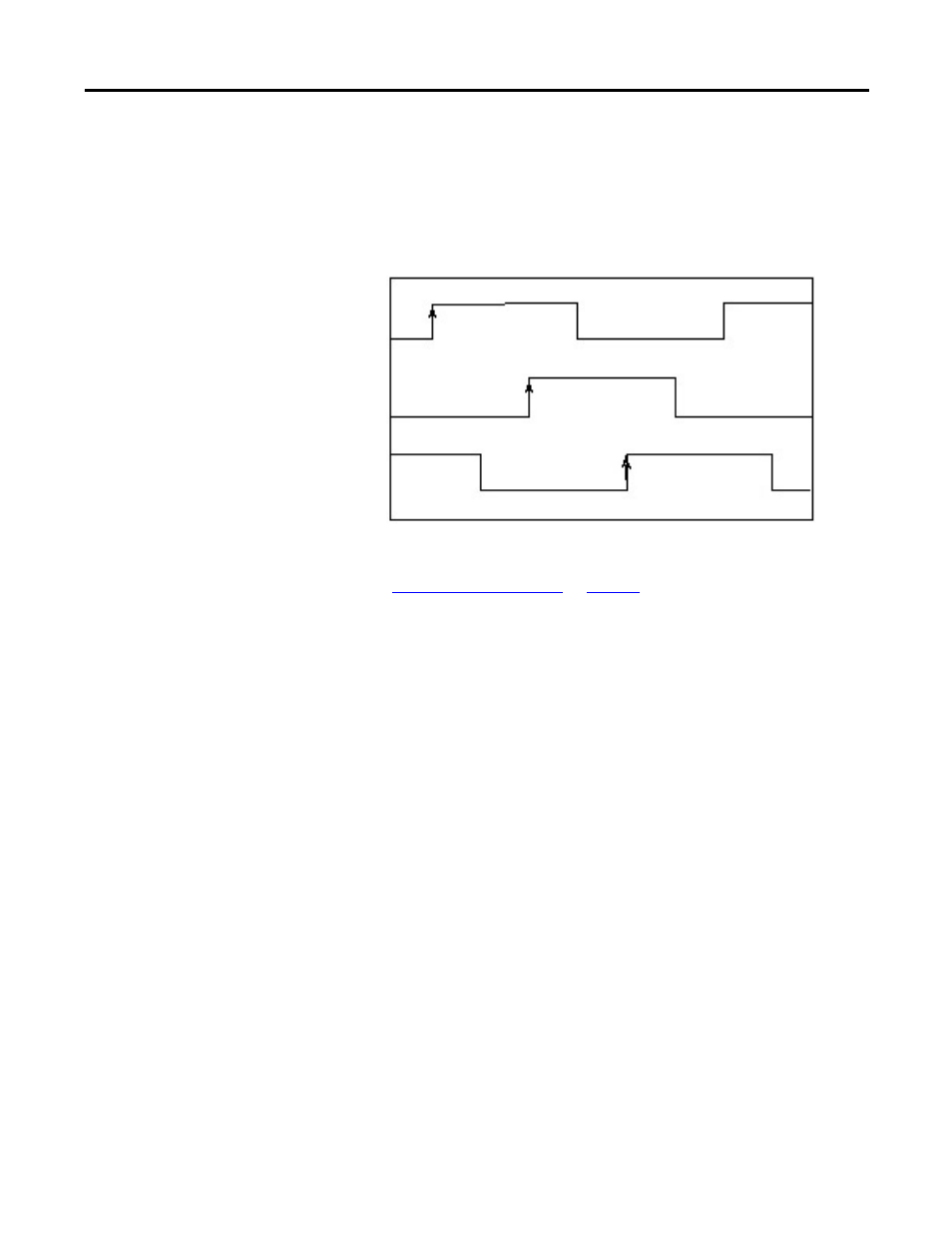

Figure 26 - Hall Oscilloscope Diagram

Data capture direction - stage positive phasing direction as shown in

Positive Phasing Direction

on

page 96.

S1 leads S2 leads S3, 120° electrical spacing.
For standard stages have following phase relationship:

S1 in phase with W-U
S2 in phase with U-V
S3 in phase with V-W

Hall probe GND to Hall common and, for W-U for example, coil probe

tip = W and probe GND = U

If wiring is correct the causes for incorrect phasing are:

non-standard coil or Hall assembly
coil electrical problem
Hall module electrical or mechanical problem

S1

S2

S3

0° 60° 120° 180° 240° 300° 360°
