Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014

43

Connecting the Stage

Chapter 6

Optional Limit Sensors

Two limit sensors, positive overtravel (OT) and negative OT, provide electrical
protection for stage overtravel. Their physical location is shown in

Component

Description

diagram on

page 16

they and can be adjusted up to 30 mm (1.2 in.)

toward the center of travel. The electric characteristics are shown here.

Input Power: 12

28V DC, 15 mA circuit draw + 50 mA maximum

sourcing = 65 mA total.

Output: PNP, Open collector Normally Closed, 50 mA maximum

sourcing.

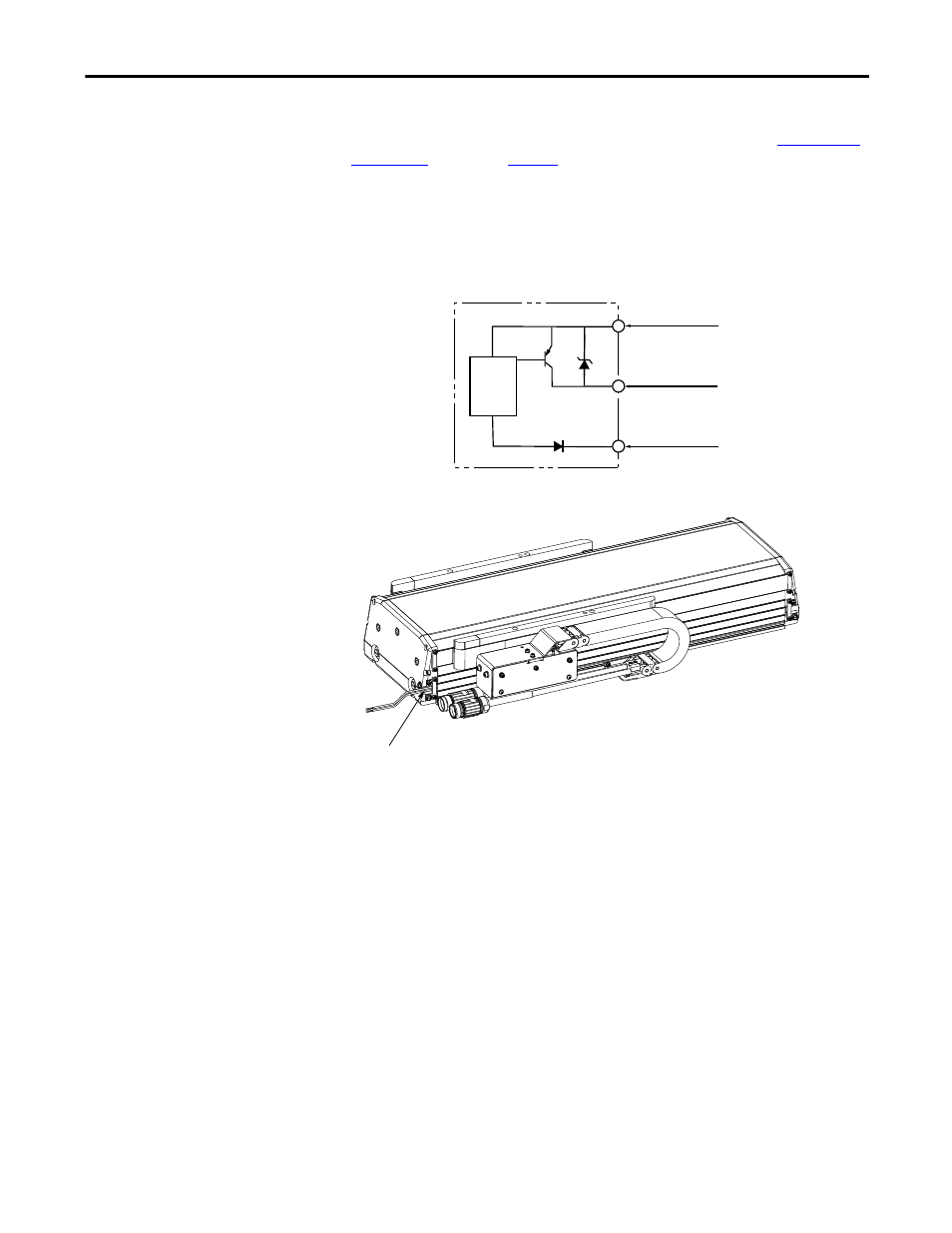

Figure 10 - Limit Sensor Orientation

Main
Circuit

Brown

Black

Blue

+V com

+ V

Limit

Adjustable
Positive OT Limit
on this side

Limit Sensor
cables exit here

Adjustable
Negative OT Limit
on this side
