Clearance requirements, Figure 3 - minimum clearance requirements – Rockwell Automation CHPS-250 Linear Stage Installation User Manual
Page 23
Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014
23
Planning the Stage Installation
Chapter 3
Clearance Requirements
The figures depict the minimum clearances for each stage type.
Power and feedback cables can impose additional clearance requirements. Refer
to
for connector and bend radius requirements.

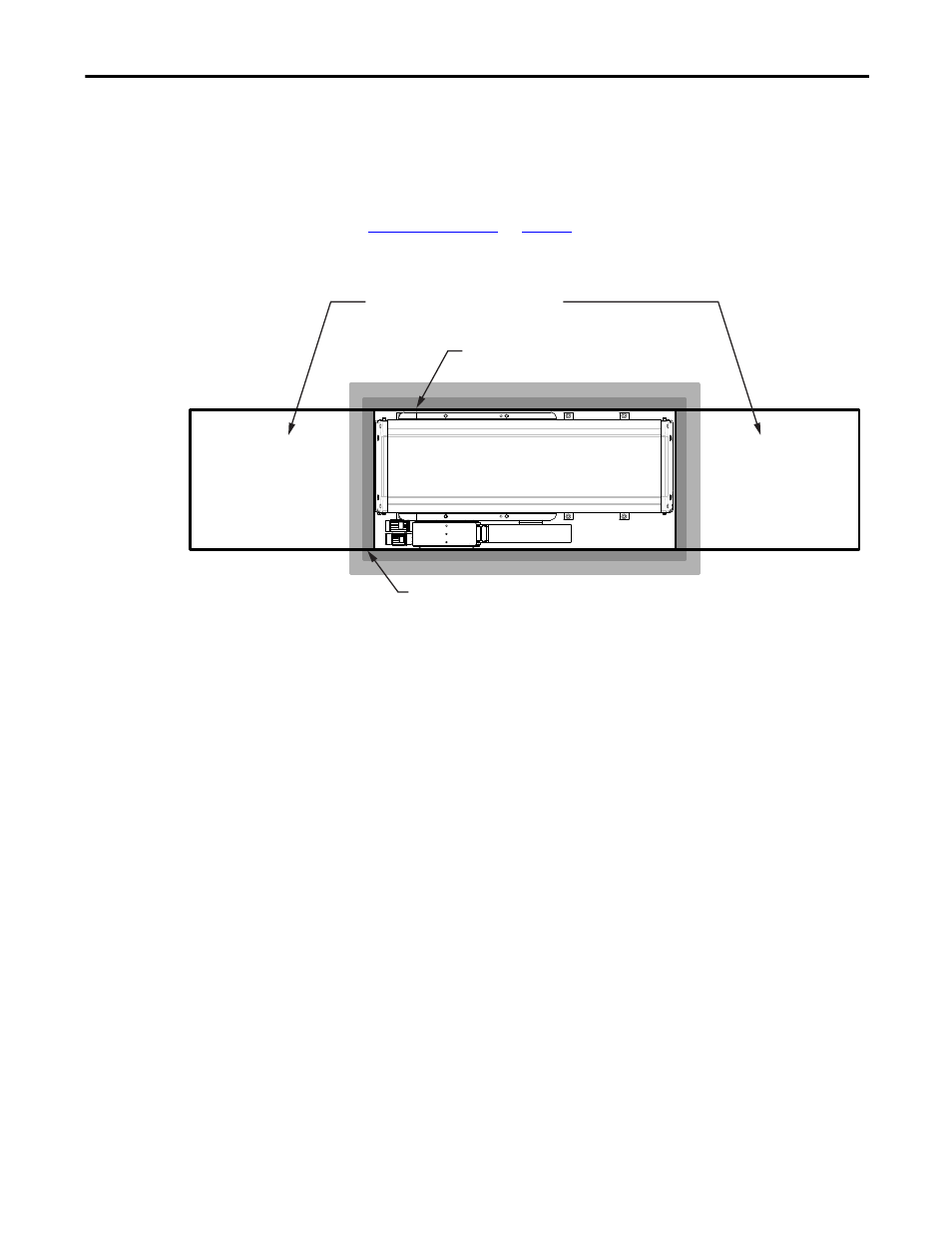

Figure 3 - Minimum Clearance Requirements
Covered Stage: 419 mm (16.5 in.)
Clearance on Both Ends for Lubrication Access
Uncovered Stage: 3.2 mm (0.125 in.)
Clearance All Around
Cabling: 19 mm (0.75 in.) Clearance for Cable Routing
