Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014

45

Connecting the Stage

Chapter 6

Sine/Cos Encoder Output
Signals

Use the following information to connect a stage with a Sine/Cosine Encoder
option to a drive or controller that processes sine/cosine position feedback.

The sine/cos encoder amplitude is 0.90V p-p minimum up to 2 meters per
second. 0.60V p-p up to 4 meters per second.

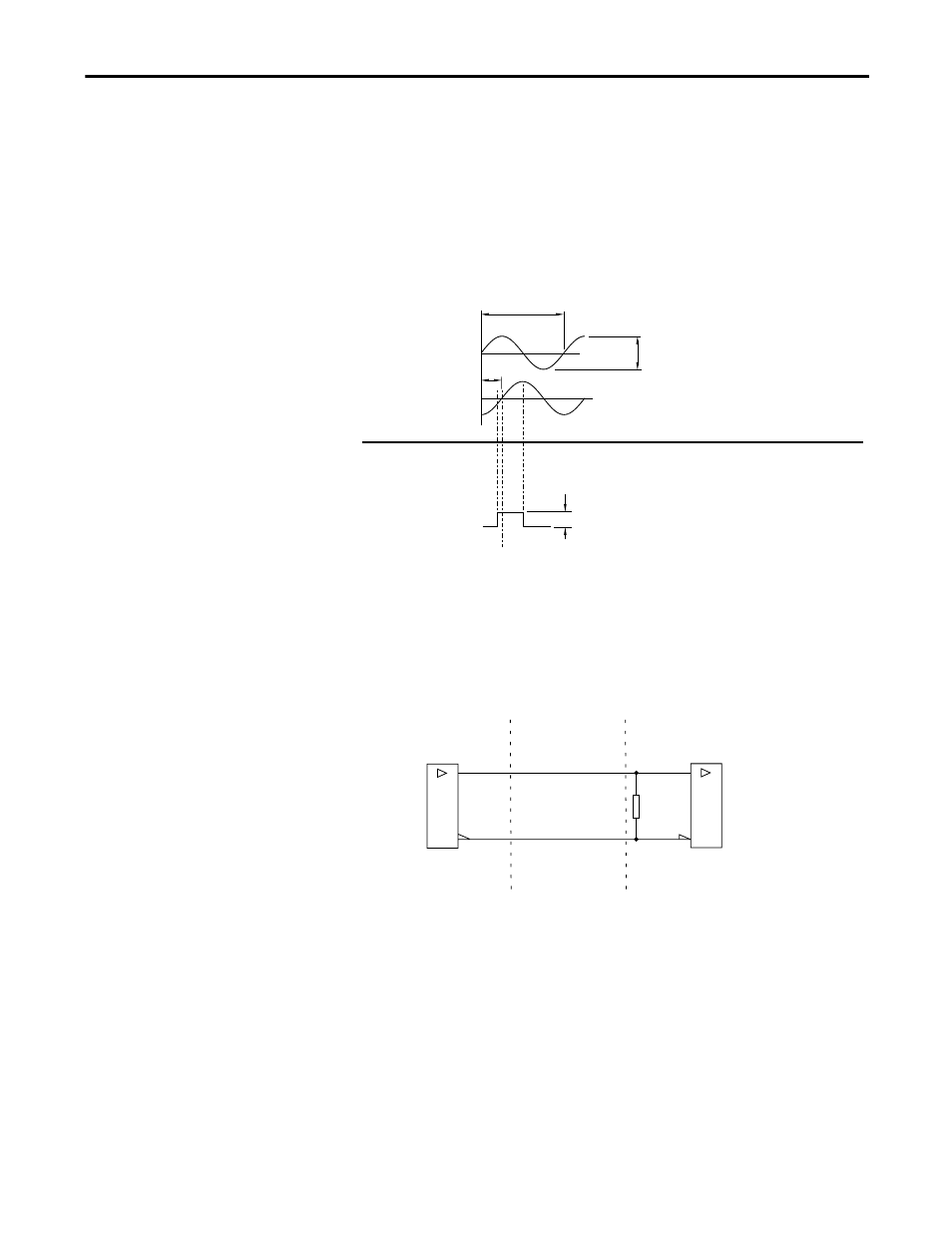

Figure 13 - Sine/Cos Encoder Timing

Recommended termination = 120 Ω resistors, V0, V1, V2.

Figure 14 - Sine/Cos Encoder Termination

(1) Total termination resistance in ohms.

Incremental 2 channels V1 and V2 differential sinusoids in quadrature (90° phase shifted)

Differential pulse V0 - 18°…108°
Duration 126° (electrical) Repeatability of
position (uni-directional) is maintained if
temperature is 15…35 °C and
speed is <250 mm/s

Reference

20 μm

90°

0.6 …1.2V p-p with green
LED indication and
120 Ω termination

108º

-18º

Sine = (V1+)-(V1-)

Cosine = (V2+)-(V2-)

0.8…1.2V p-p

(V0+)-(V0-)

Readhead

Drive or
Controller

120 Ω

(1)

ENC A +,
ENC B +,
& Index Mark +

ENC A -,
ENC B -,
& Index Mark -
