Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014

Appendix D Start-up Guide for CHPS-Series Stage with Ultra3000 Drive and Ultraware Software

CHPS-Series Stage and
Ultra3000 Drive
Troubleshooting Reference

The section contains troubleshooting reference for the CHPS-Series stage and
Ultra3000 drive combination.

Positive Phasing Direction

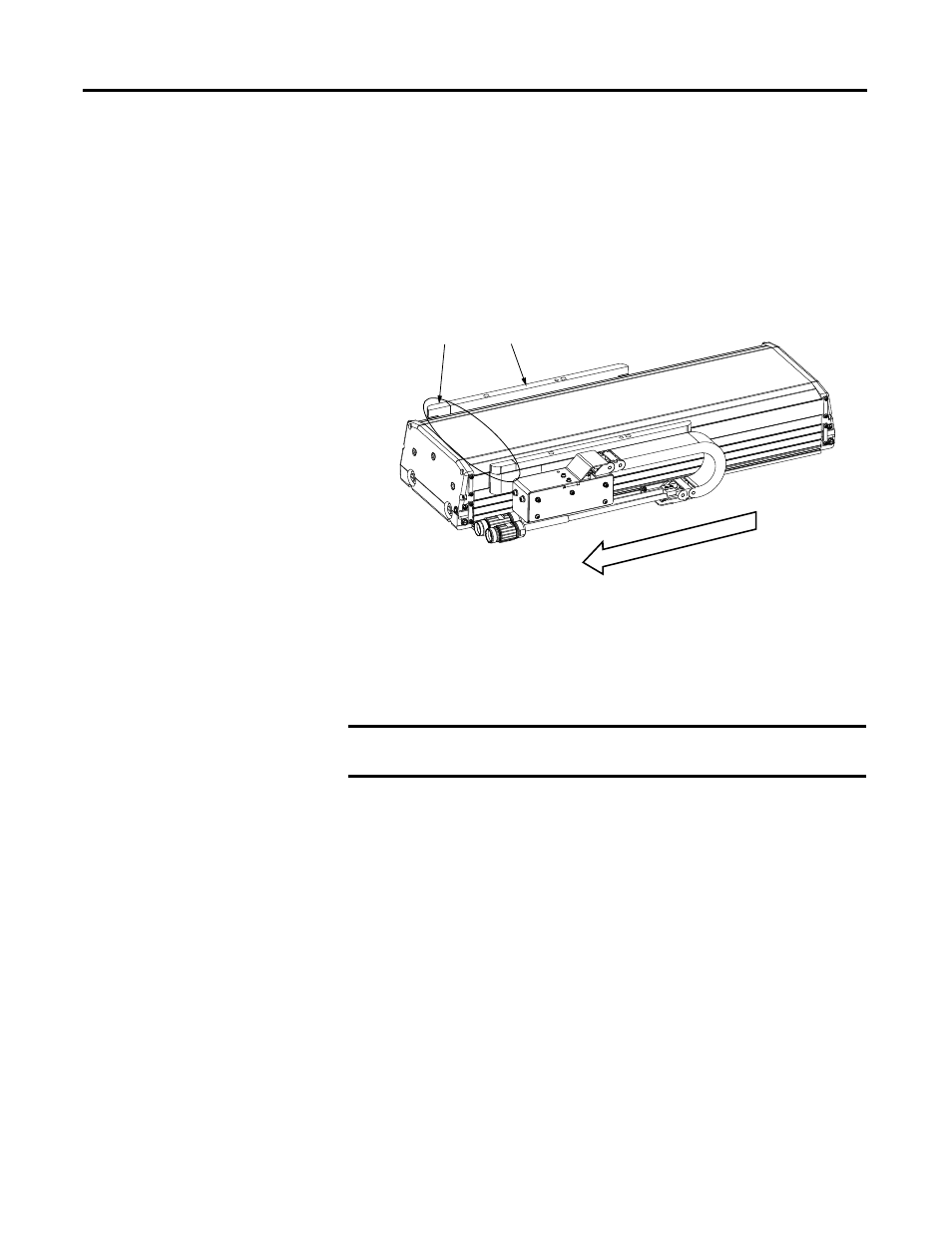

Positive stage direction = slide moving towards junction box or cable exit end as
shown here.

Encoder Counting Polarity

Encoder must count in positive direction when moving in the positive direction.

IMPORTANT

Incorrect encoder sequencing can cause a runaway motor condition or
incorrect commutation.

(+)

(-)

Slide End Cap + Slide = Slide Assembly

Positive Direction
