Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014

65

Removing and Replacing Stage Components

Chapter 10

Strip Seal Removal

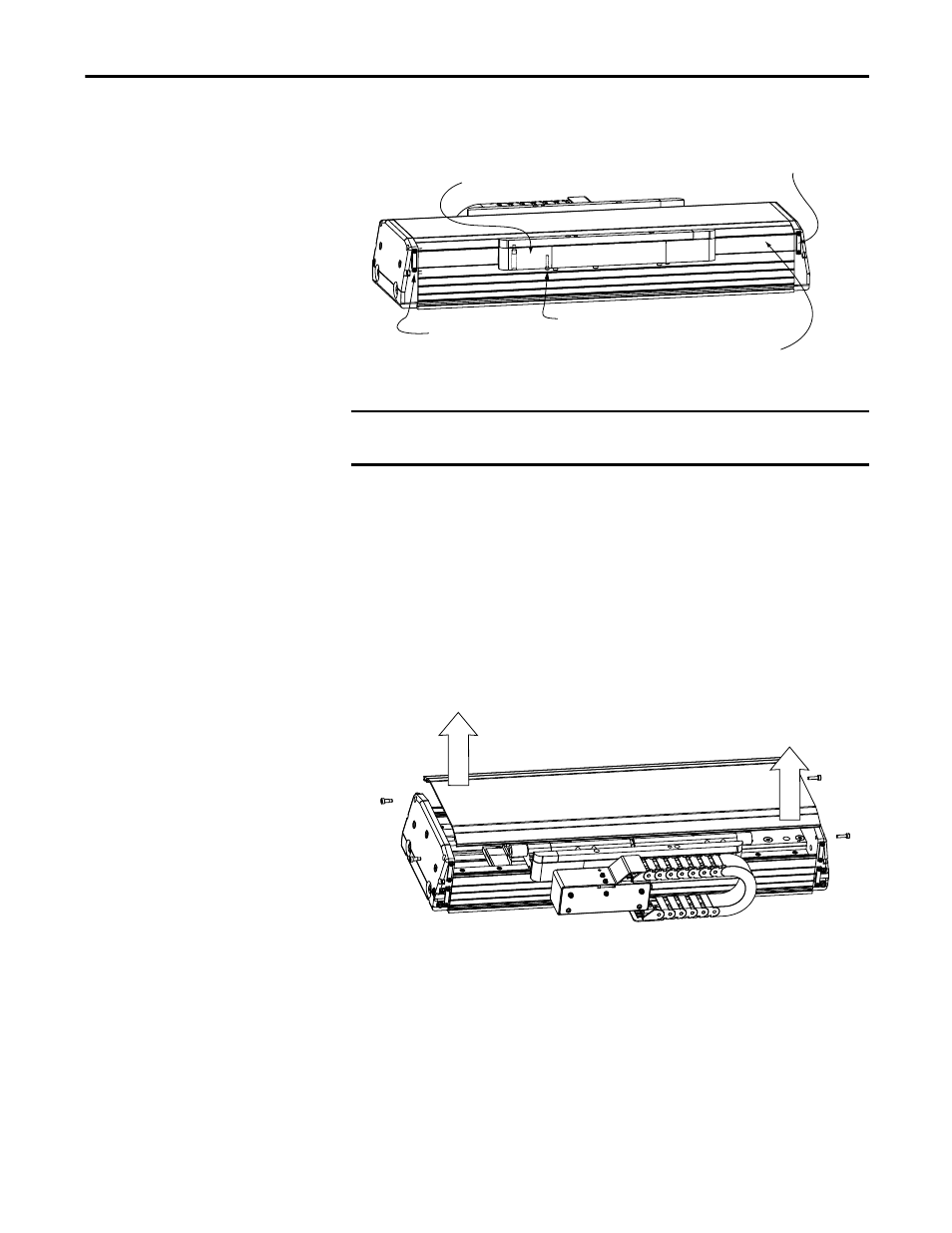

Figure 19 - Stage Seal Components .

1. Loosen the strip seal clamps at each end of the stage.
2. Carefully grasp the end of the strip seal and slide it out of the stage.

Stage Cover Removal

1. Remove strip seals following strip seal removal procedure.
2. Remove the (4) M4 screws securing the stage cover to the end caps.
3. Remove cover.

Figure 20 - Cover Removal

Stage Side Cover Removal

1. Remove strip seals following strip seal removal procedure.
2. Remove the (2) M4 x.07 screws securing the side cover to the end caps.
3. Remove side cover by dropping it down so the lower lip clears the channel.

IMPORTANT

Handle strip seal material with care. The strip seal has sharp edges that can
cut if mishandled

Stainless Steel
Strip Seal (2x)

Strip Seal Clamp (4x)

Seal Guide (4x)

3M SHCS (2x per guide)

3M SHCS (8x)
