Rockwell Automation Publication CHPS-UM001D-EN-P - July 2014 67
Removing and Replacing Stage Components Chapter 10

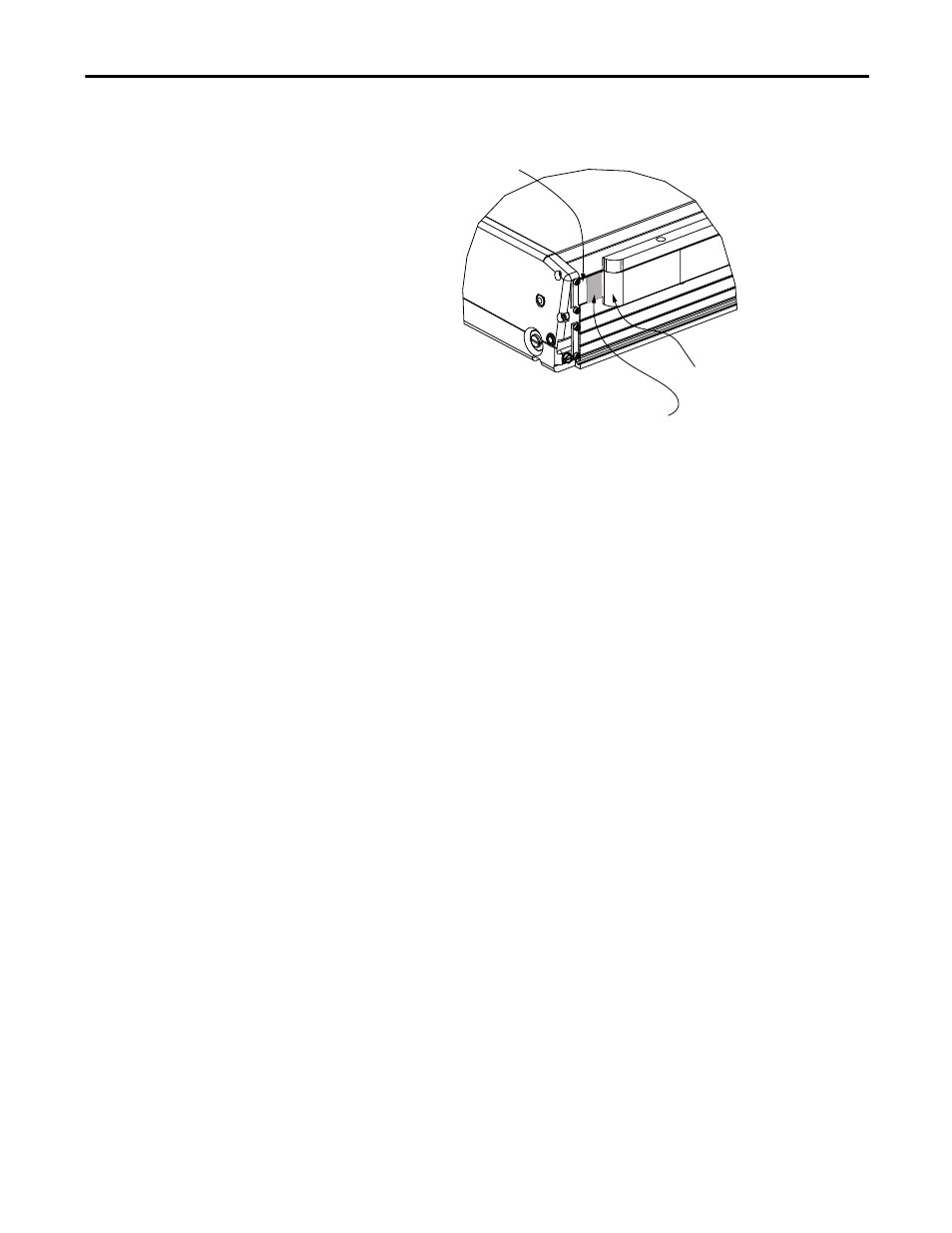

12. Position slide at the far ends of travel and re-adjust seal guide by inserting a
0.8 mm (0.015 in.) shim between seal guide and strip seal.
13. Return stage to service.
Stage Cover Installation
1. Starting at the end cap with the magnetic warning label. Install (2)
M3 x 25 SHCS and torque to 4 N•m (35 lbf•in). Make sure the cover
makes contact with the end cap.
2. On the opposite end install (2) M3 x 30 SHCS and bottom out the screw.
The cover does not contact the end cap on this side it floats on the screw.
Side Cover Installation
1. Insert side cover into the stage base by holding it with the top slightly tilted
outward and hooking bottom in the channel near bottom of the base.
2. Starting at the end cap with the magnetic warning label or the MP motor.
Install (1) M4 x 0.7 x 30 LG SHCS and torque to 4 N•m (35 lb•in). Make
sure the side cover makes contact with the end cap.
3. On the opposite end install (1) M4 x 0.7 x 30 LG SHCS and torque
2.26 N•m (20 lb•in). The side cover does not contact the end cap on this
side.
Seal Guide
0.8 mm (0.015 in.) Shim
Strip Seal
