Chapter 4

Mounting the Stage

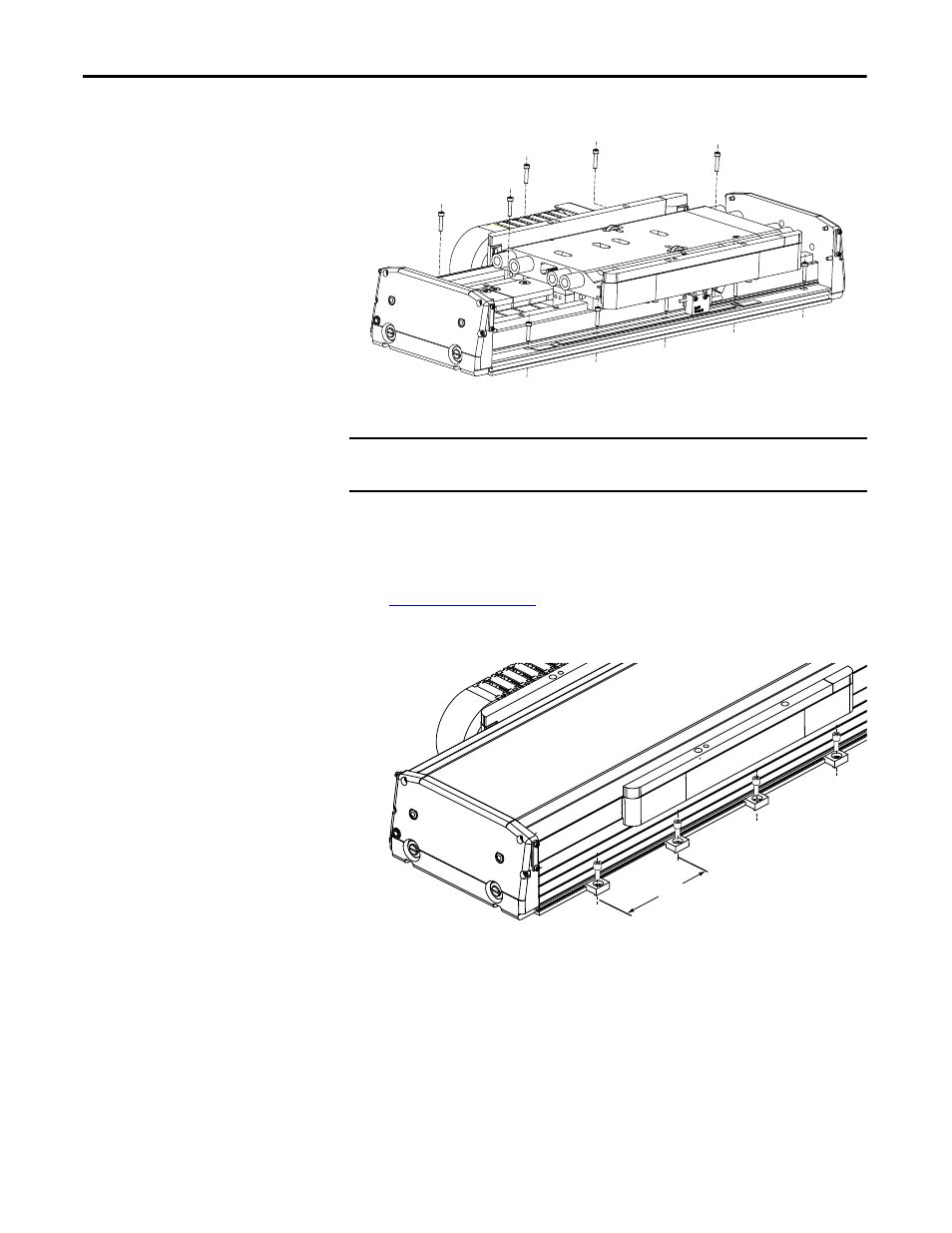

Figure 6 - Through Bolt Mounting

An uncovered stage is a good candidate for through bolt mounting.

For covered stages, toe clamps are the easiest method for mounting. On sides of
the base secure a toe clamps every 120 mm (4.72 in) by using M6 SHCS as shown
in the

Toe Clamps Mounting

diagram. Use slots formed into outside edge of the

stage base.

Figure 7 - Toe Clamps Mounting

IMPORTANT

Through bolt mounting is not available for the catalog number
CHPS-x6xxxx-xxxxx (150 mm) stages.

120 mm
(4.72 in.)
