Chapter 4 Mounting the Stage
Inspect the assemblies and confirm, if applicable, the presence of specified
options.
Unpacking Procedure
The following tools are recommended for unpacking the stage:
• Utility knife
• 2.5 mm, 5 mm, and 6 mm hex keys
• Packing tape

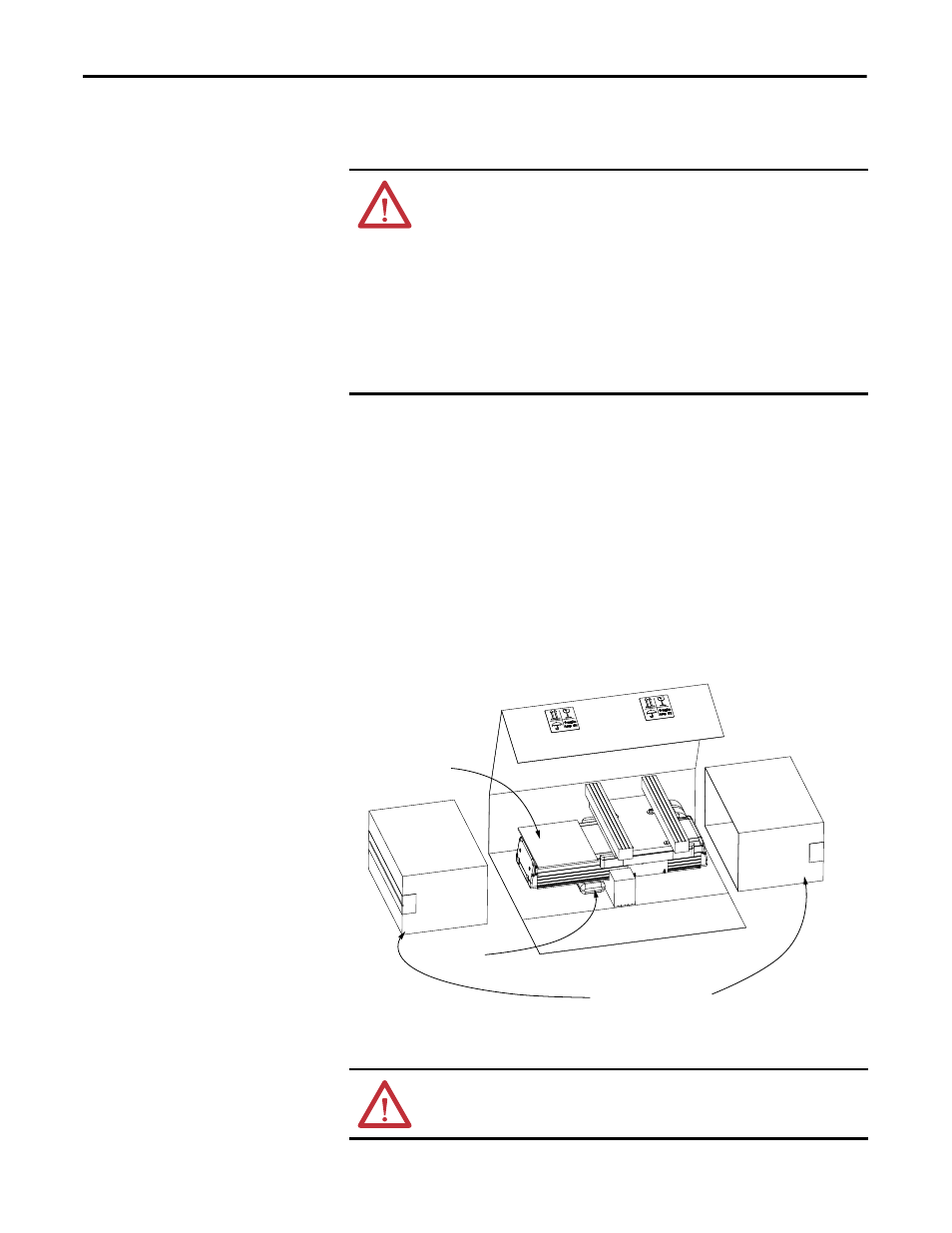

1. Place carton on flat stable surface with the tape seam side facing you.
2. Use a utility knife to score the packing tape on the edges of the carton.
3. Lift center cover to reveal the stage.
4. Remove the packing end caps.
ATTENTION: Linear motor driven stages contain powerful permanent magnets
that require extreme caution during handling. Do not disassemble the stage.
The forces generated by permanent magnets are very powerful and can cause
bodily injury.
Persons with pacemakers or automatic implantable cardiac defibrillators (AICD)
must maintain a minimum distance of 0.3 m (12 in.) from magnet assemblies.
Additionally, unless absolutely unavoidable, a minimum distance of 1.5 m (5 ft)
must be maintained between magnet assemblies and other magnetic or ferrous
composite materials. Calipers, micrometers, laser equipment, and other types of
instrumentation must be nonmetallic.
ATTENTION: Never attempt a single-person lift. Personal injury and equipment
damage can occur if the linear stage is handled improperly.
Users Manual
Packing End Caps
Desiccant
