Kinetix 300 Drive Safe Torque-off Feature
Chapter 8
Safe Torque-off Connector
Data
This section provides safe torque-off (STO) connector and header information
for the Kinetix 300 drive safe torque-off.
STO Connector Pinouts
Headers extend the STO connector signals for use in wiring or to defeat (not use)
the safe torque-off function.

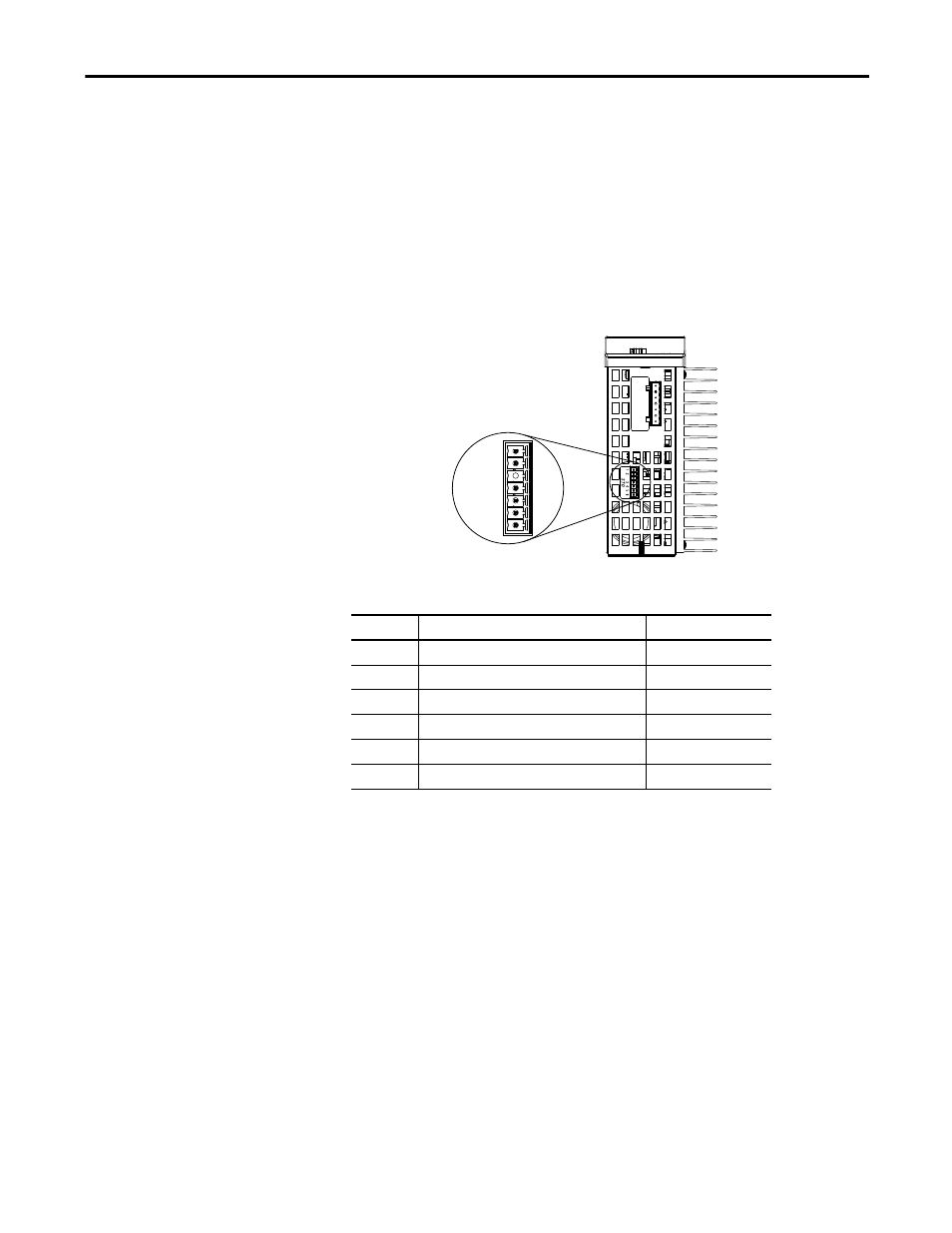

6-pin Safe Torque-off (STO) Connector
1 2 3 4 5 6
ST
O
Safe Torque-off
(STO) Connector
Kinetix 300 Drive, Bottom View
(2097-V32PR4 is shown)
STO Pin
Description
Signal
1
+24V DC output from the drive
+24V DC control
2
+24V DC output common
Control COM
3
Safety status
Safety Status
4
Safety input 1 (+24V DC to enable)
Safety Input 1
5
Safety common
Safety COM
6
Safety input 2 (+24V DC to enable)
Safety Input 2
