Rockwell Automation Publication 2097-UM001D-EN-P - November 2012
Chapter 6
Configure and Start Up the Kinetix 300 Drive
keypad. IP_1, IP2, and IP_3 are read-only accessed this way. The drive power
must be cycled for any changes to take effect.
To configure the Kinetix 300 drive for a specific subnet or change its full IP
address, use the MotionView configuration tool.
1. Run a Java enabled web browser.
2. Enter the drive's current IP address into the browser.
MotionView OnBoard dialog box opens.
3. Click Run.
4. Click Connect.
5. Enter the drive's IP address.
6. Click Connect.

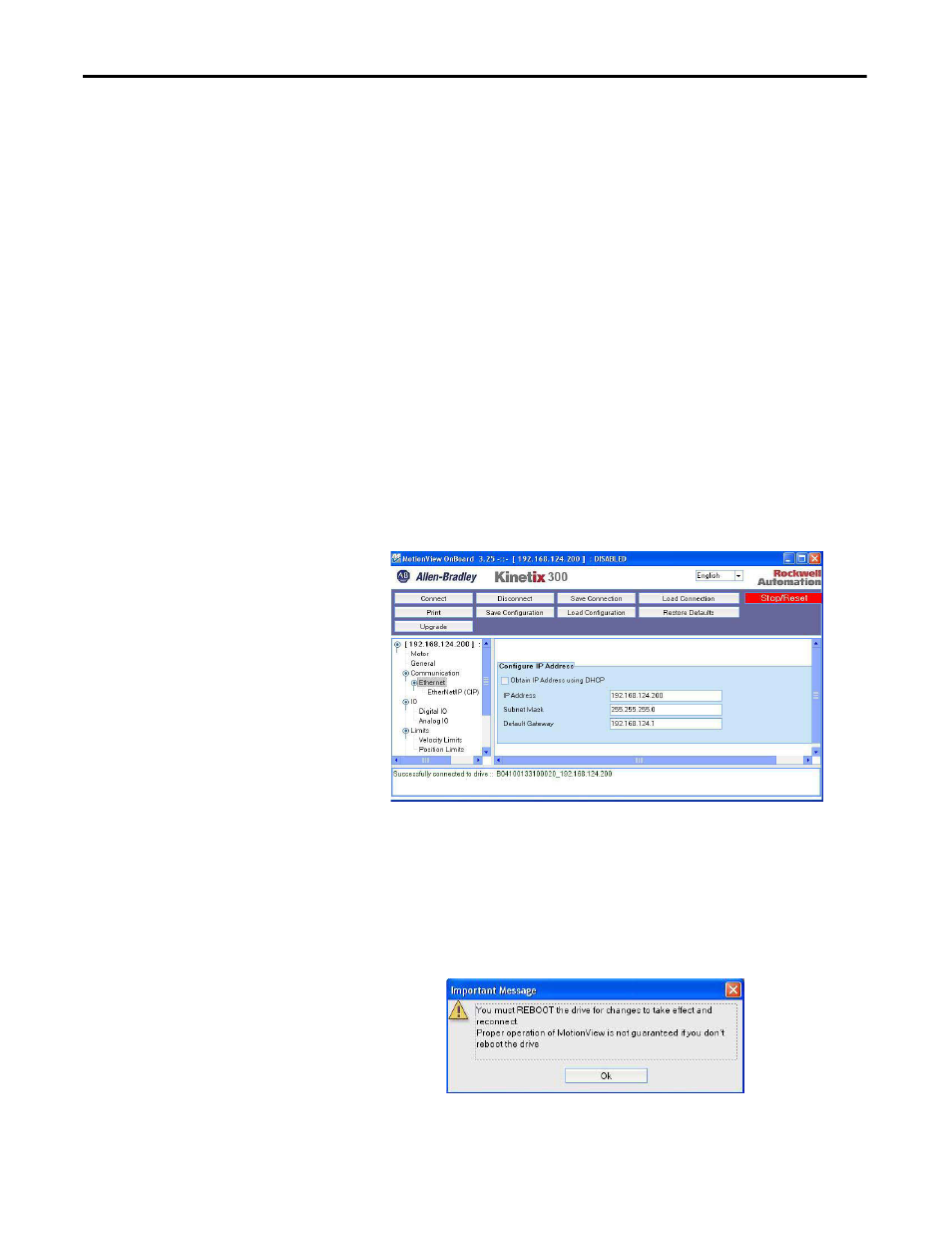

7. From the Drive Organizer, select Communications>Ethernet.
The IP address, subnet mask, and default gateway address can be edited in
this screen. If the text turns red when entered, the values or format used are
invalid and they are not applied.
8. Click Obtain IP Address using DHCP, to enable DHCP.
9. To disable DHCP, click DHCP again.
10. Cycle power to make changes to take effect.
The first time you change an Ethernet parameter, the following dialog box opens.
Click OK and cycle power for changes to take effect.
