Rockwell Automation Publication 2097-UM001D-EN-P - November 2012 15
Start Chapter 1

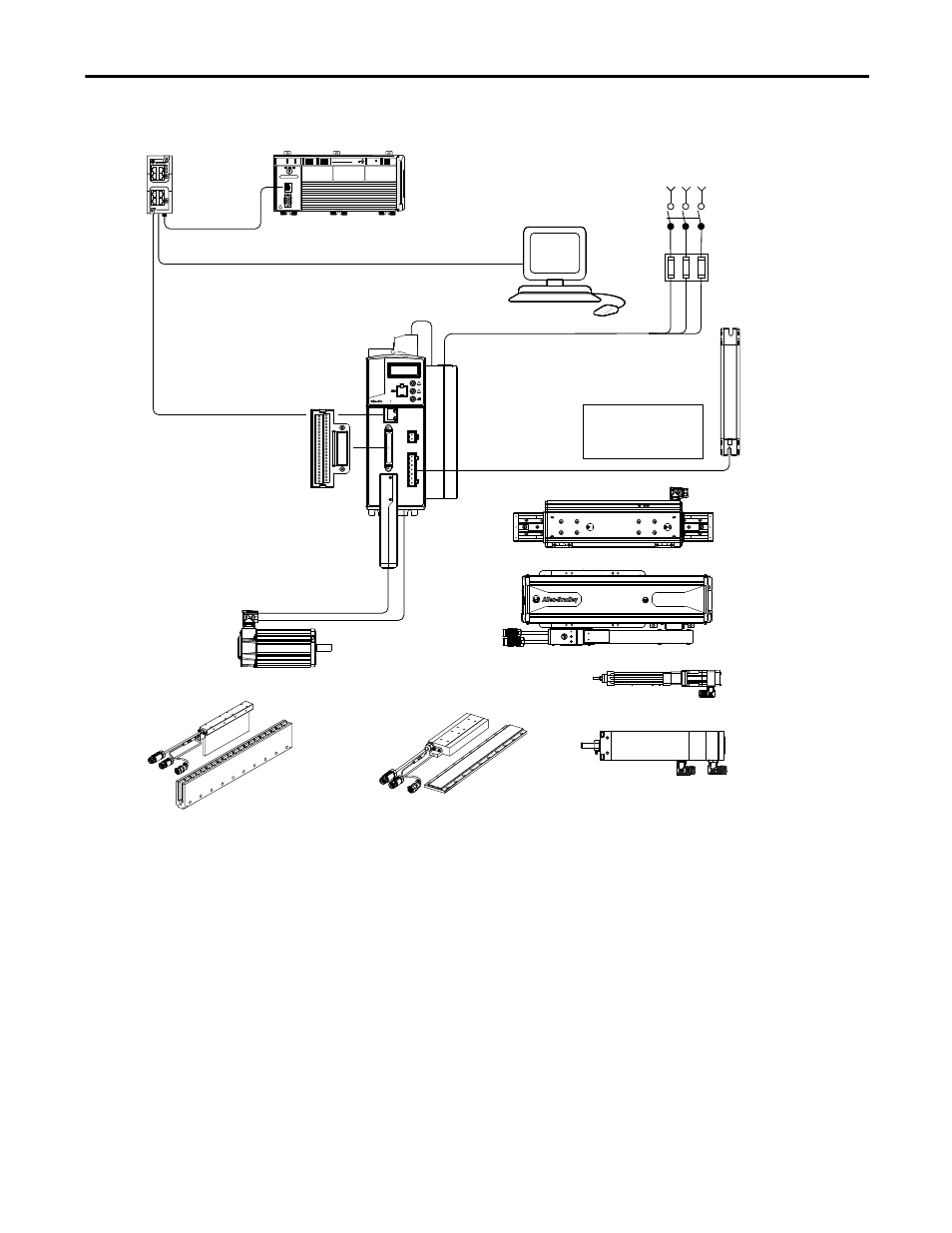

Figure 1 - Typical Kinetix 300 Drive Installation
CompactLogix L23E
00 300
CAT . NO. LDC -M0755 00
SERIAL NO. XXXX X XX XX
SERIES A
ww w.ab.c om MA DE IN USA
2097-V3xxxx
Kinetix 300 Drive
2097-Fx
AC Line Filter (optional equipment)
2097-F1 Filter Shown
1783-EMS08T
Stratix 6000™
Switch
CompactLogix Controller Platform
1769-L23E-QB1B Shown
RSLogix 5000
Software
Line
Disconnect
Device
Input
Fusing
Three-phase
Input Power
24V DC Control Back-up
Power Supply
(optional equipment)
MP-Series and TL-Series
Rotary Motors
(MPL-Bxxxx motors shown)
Bulletin 2090
Motor Feedback Cables
Bulletin 2090
Motor Power Cables
1585J-M8CBJM-x
Ethernet (shielded) Cable
2097-TB1 Terminal
Expansion Block
2097-Rx
Shunt Resistor
(optional equipment)
MP-Series and TL-Series
Electric Cylinders
(MPAR-Bxxxx electric
cylinders shown)
MP-Series Integrated
Linear Stages
(MPAS-xxxxx-ALM direct
drive shown)
MP-Series Heavy Duty
Electric Cylinders
(MPAI-Bxxxx electric
cylinders shown)
2090-K2CK-D15M
Low-profile Connector Kit
LDL-Series Linear Motors
(LDL-xxxxxxx linear motor shown) LDC-Series Linear Motors
(LDC-Cxxxxxxx linear motor shown)
LDAT-Series Integrated
Linear Thruster
(LDAT-Sxxxxx linear thruster
shown)
