Status indicators – Rockwell Automation 2097-Vxxx Kinetix 300 EtherNet/IP Indexing Servo Drive User Manual User Manual
Page 127

Rockwell Automation Publication 2097-UM001D-EN-P - November 2012
127
Configure and Start Up the Kinetix 300 Drive
Chapter 6
Status Indicators
The Kinetix 300 drive has five status indicators located around the periphery of
the front panel display as shown below. These status indicators used to monitor
the system status, activity, and troubleshoot faults.

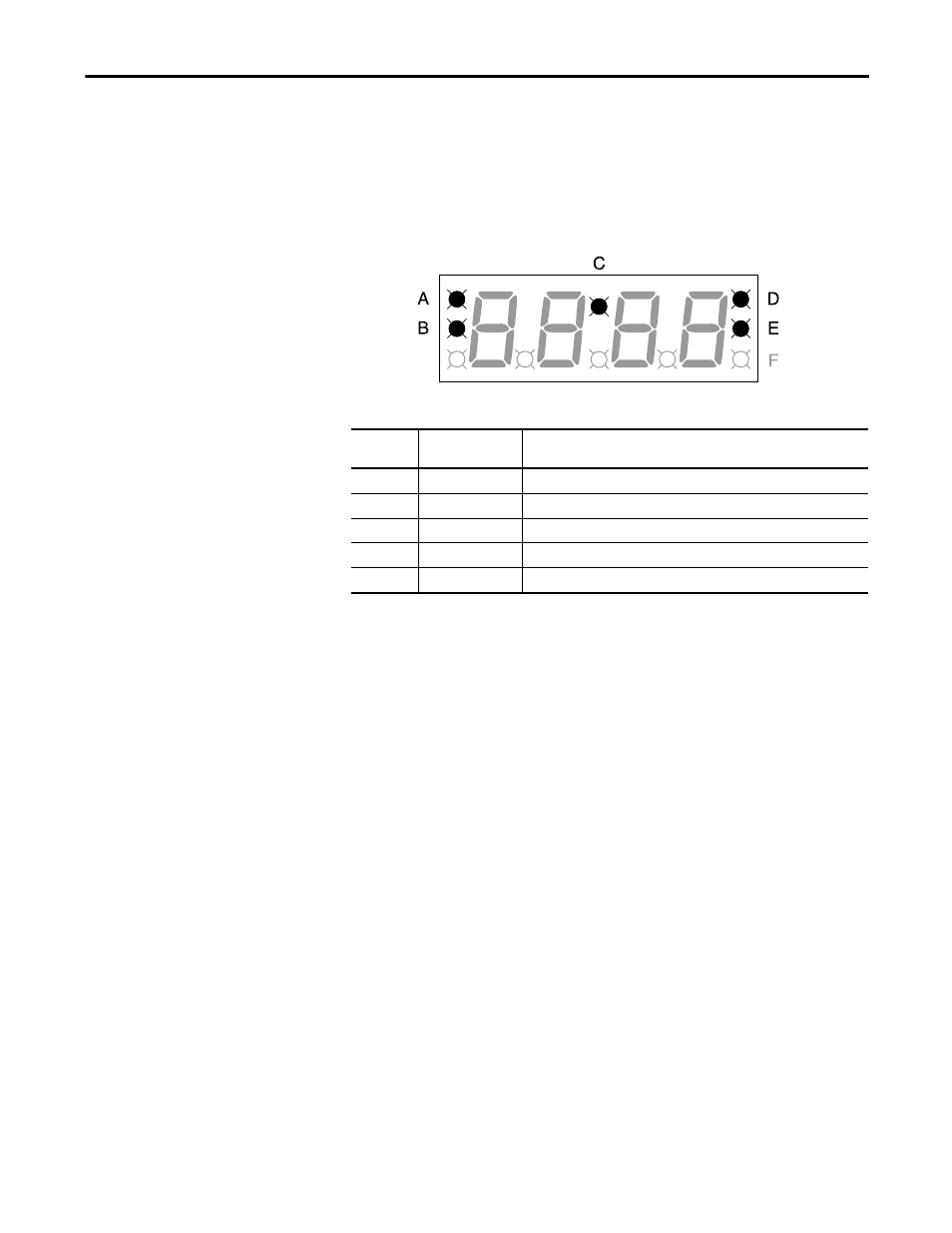

Figure 74 - Front Panel Display
Figure 75 - Status Indicators
Status
Indicator
Function
Description
A
Enable
Orange status indicator means that the drive is enabled (running).
B
Regen
Yellow status indicator means the drive is in Regeneration mode.
C
Data entry
Yellow status indicator flashes when changing.
D
Drive fault
Red status indicator illuminates upon a drive fault.
E
Comm activity
Green status indicator flashes to indicate communication activity.
