Chapter 6 Configure and Start Up the Kinetix 300 Drive
Add-on Profiles To select Kinetix 300 drives in RSLogix 5000 software, version 17, you must load
Add-on Profiles from
www.ab.com .

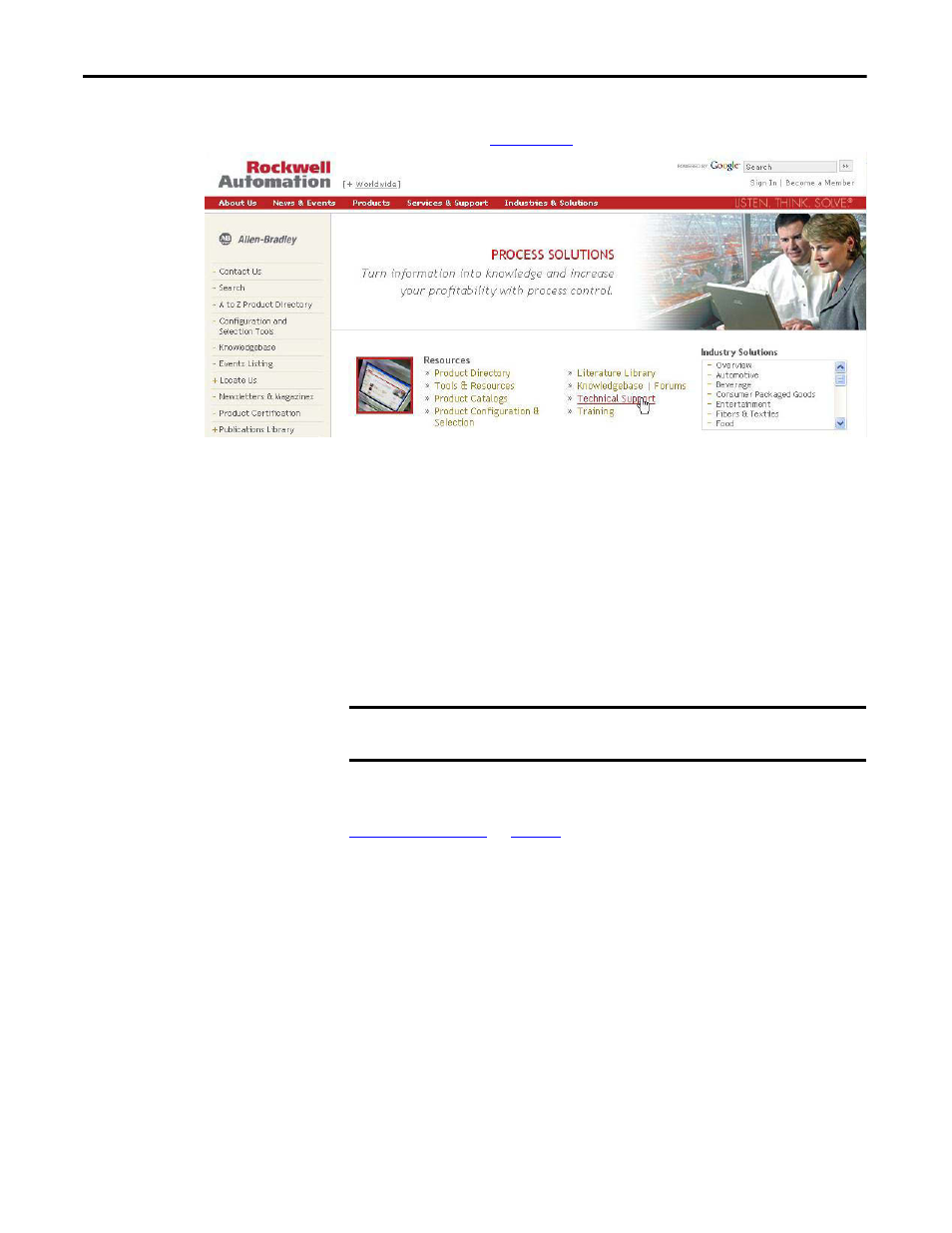

To navigate to the Add-on Profiles, follow this path:
– Technical Support
– Software Updates, Firmware and Other Downloads
– RSLogix 5000 I/O Modules Add-On-Profiles
You will be required to establish a login and provide the serial number of your
drive to access the download file.
Configuring the Logix
EtherNet/IP Module This procedure assumes that you have wired your Kinetix 300 drive.
For help using RSLogix 5000 software as it applies to configuring the
ControlLogix, CompactLogix, or SoftLogix™ EtherNet/IP modules, See
Additional Resources on page 12 .
Configure the Logix Controller
Follow these steps to configure the Logix controller.
1. Apply power to your Logix chassis containing the Ethernet interface
module/PCI card and open your RSLogix 5000 software.
2. From the File menu, choose New.
IMPORTANT For the Kinetix 300 drive to communicate with the Ethernet network
module, your RSLogix 5000 software must be version 17 or later.
