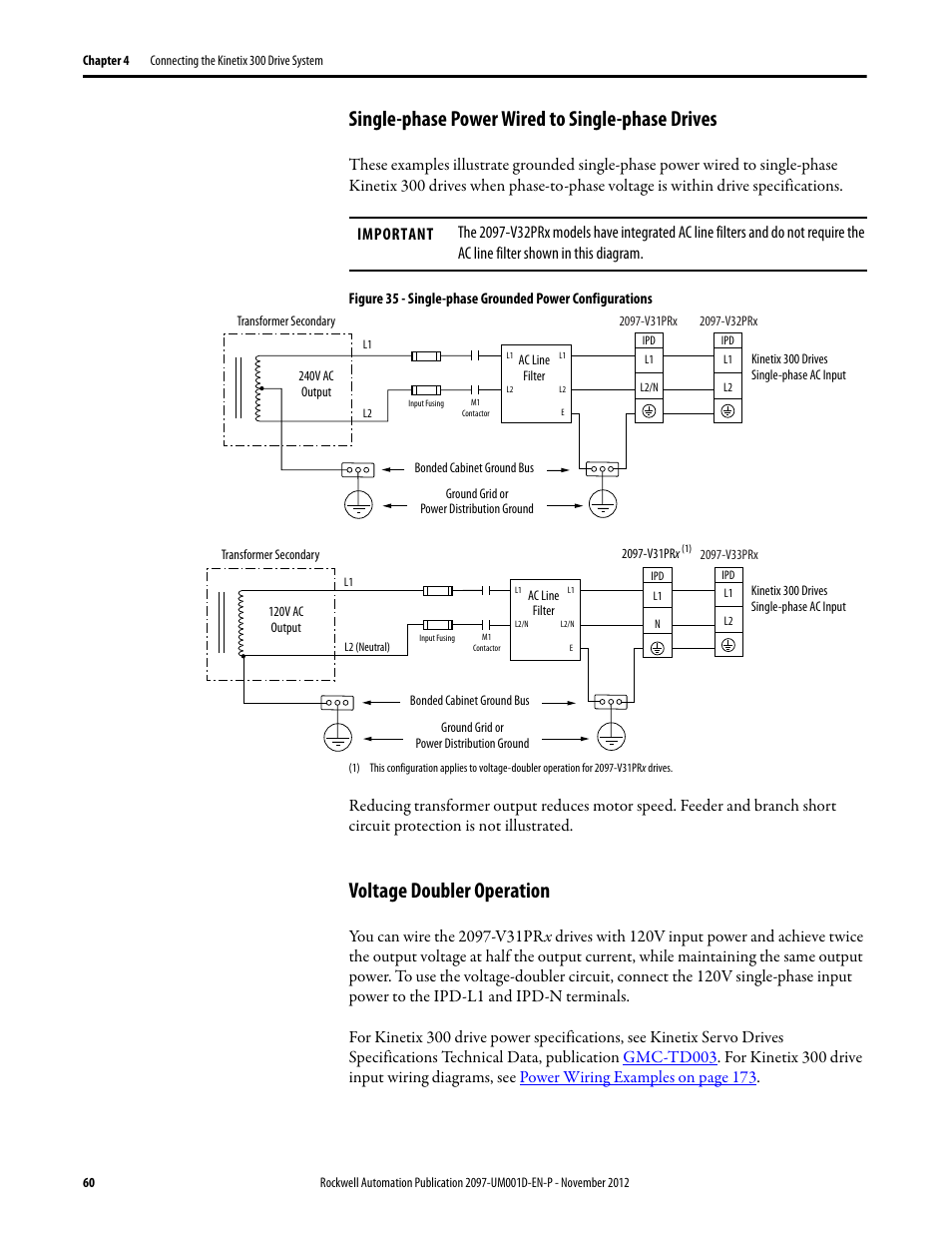

Single-phase power wired to single-phase drives, Voltage doubler operation – Rockwell Automation 2097-Vxxx Kinetix 300 EtherNet/IP Indexing Servo Drive User Manual User Manual
Page 60
